Description

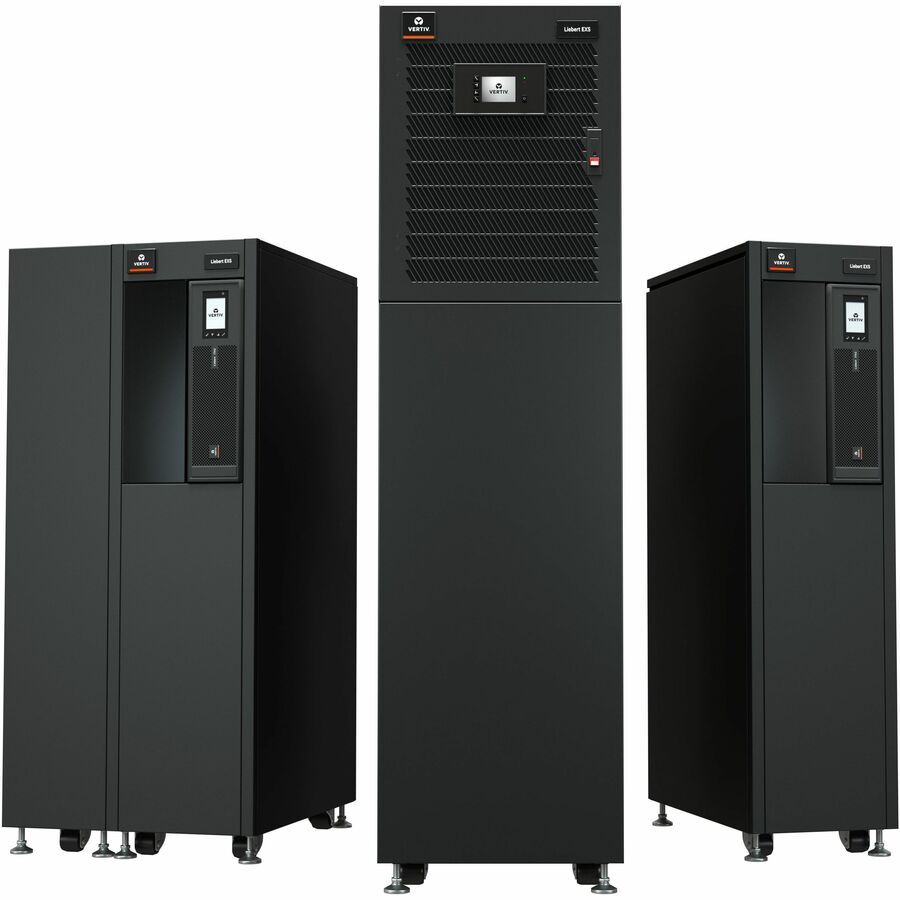

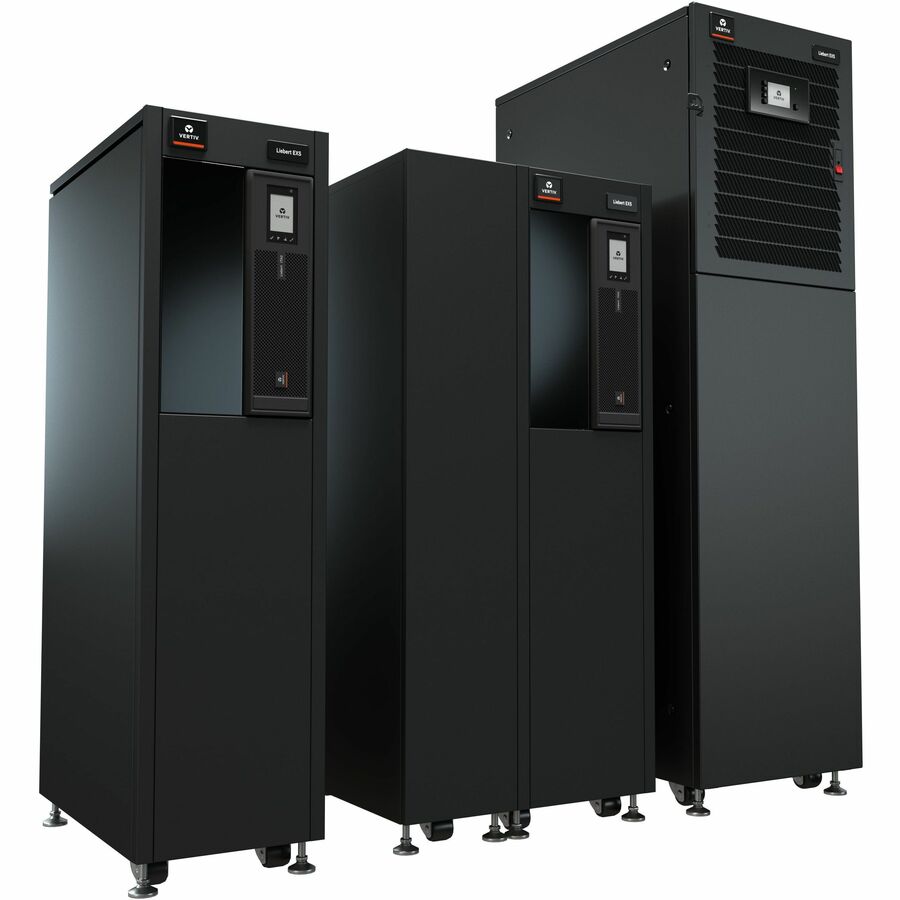

The Vertiv Liebert EXS15KN is a compact monolithic online double-conversion UPS system that delivers exceptional efficiency, power protection, and serviceability for mission-critical systems. With a true sine wave output and unity power factor, it’s built for demanding IT environments such as small data rooms, server closets, VoIP systems, storage arrays, and security infrastructure.

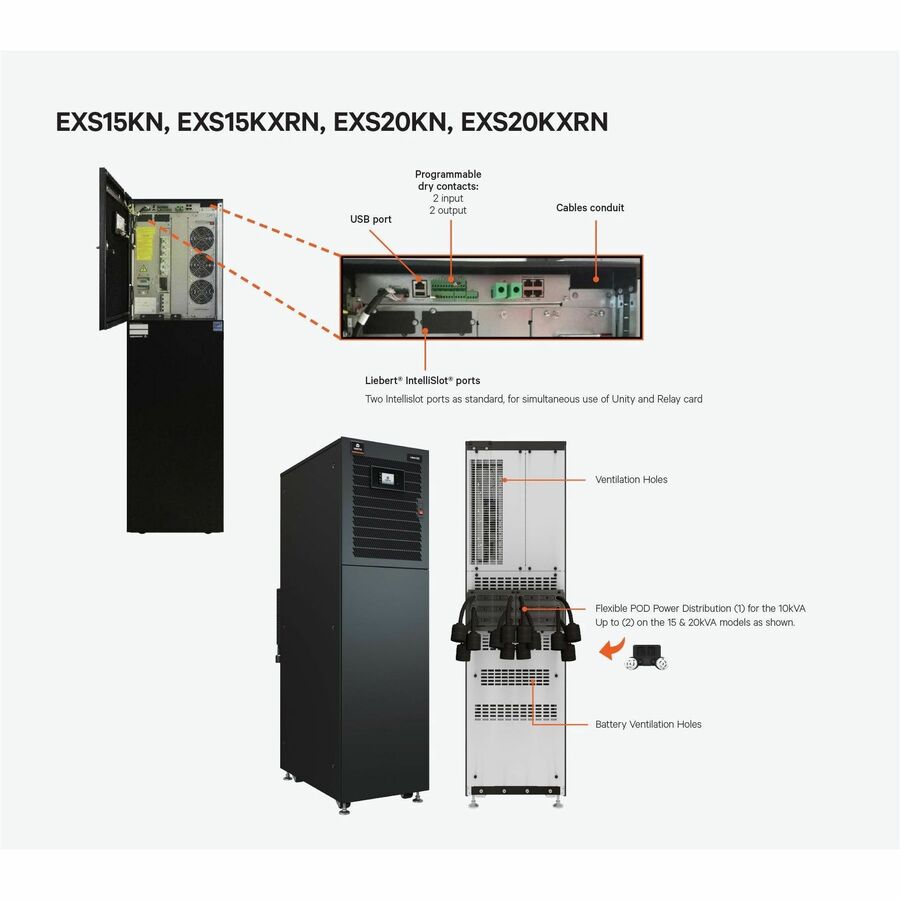

Designed with built-in maintenance bypass and energy-efficient architecture, the EXS15KN ensures continuous uptime even during maintenance. Its flexible design allows seamless power distribution and battery configuration. This model includes the Liebert Intellislot (IS-UNITY-DP) communication card for comprehensive monitoring and control.
| Specification | Details |
|---|---|
| Brand Name | Vertiv Liebert |
| Model / Part Number | EXS15KN |
| Product Type | Double Conversion Online UPS |
| Form Factor | Tower / Monolithic |
| Load Capacity | 15 kVA / 15 kW |
| Power Factor | 1.0 (Unity) |
| Input Voltage Range | 176 – 263V AC |
| Output Voltage | 120/208/220/127V AC |
| Input Frequency | 40 – 70 Hz |
| Input Current | 53 A |
| Waveform Output | Pure Sine Wave |
| Runtime (Full / Half Load) | 8 min / 21 min |
| Battery Type | 56 x Valve-Regulated Lead-Acid (VRLA) |
| Replaceable Battery | Yes |
| Management Interface | SNMP, Modbus, TCP, BacNet IP, USB, Serial, RJ-45, EPO |
| Included Accessory | IS-UNITY-DP Intellislot Card |
| Dimensions (HxWxD) | 62.9" x 17.3" x 29.5" |
| Weight | 734 lbs |
| Shipping Weight | 852 lbs |
| Certifications | UL 1778, CSA 22.2, FCC Part 15 Class A, ENERGY STAR 2.0, RoHS, WEEE, REACH |
| Product Condition | New and Factory Fresh |
| Warranty | 1 Year Limited Warranty |
| Operating Temperature | Max: 32°F (0°C) |
| Sound Level | 58 dB(A) |
| Color | Black / Gray |
| Country of Origin | China |
| TAA Compliant | No |
| Energy Efficiency Certification | ENERGY STAR |
