Description

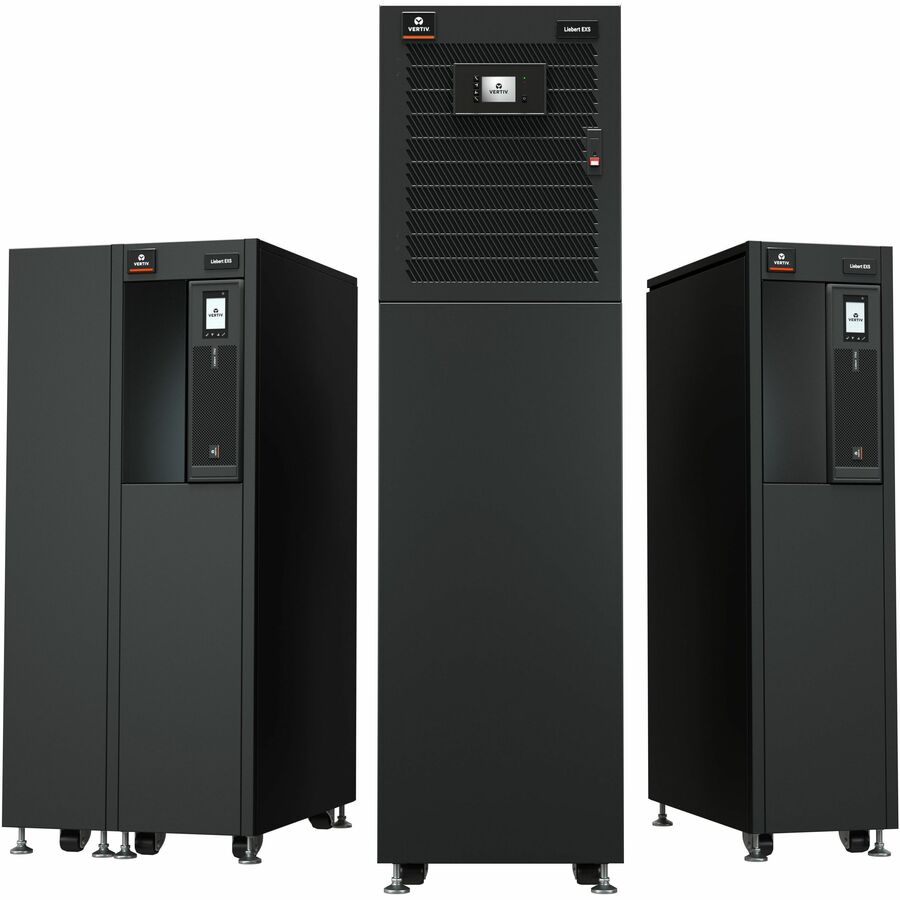

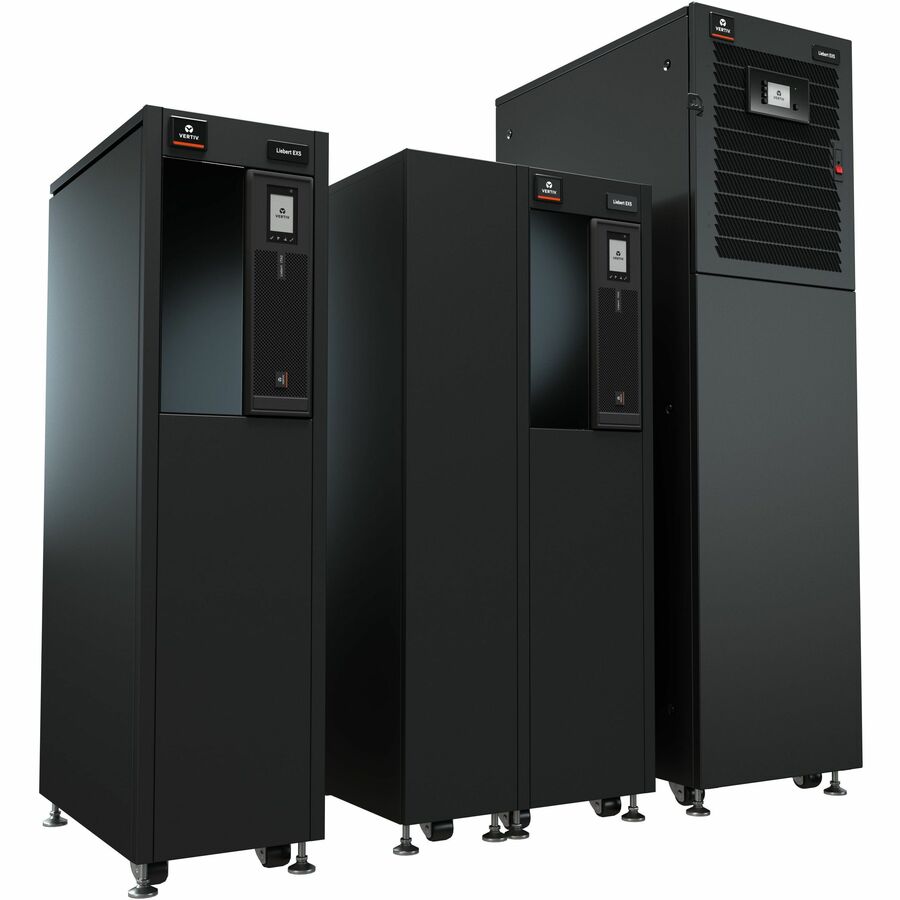

The Vertiv Liebert EXS15KXRN is a highly efficient, space-saving, and reliable UPS system built to deliver continuous power to mission-critical IT infrastructure. Designed for small data rooms, VoIP networks, storage systems, and security equipment, it features online double-conversion technology and a unity power factor for true 15kW power output.
This monolithic UPS includes a factory-installed IS-UNITY-DP communications card and supports flexible battery configurations with an integrated maintenance bypass for higher availability. Easy to install, service, and monitor, the EXS15KXRN is ENERGY STAR® certified and optimized for low TCO (Total Cost of Ownership).
| Specification | Details |
|---|---|
| Brand | Vertiv Liebert |
| Model | EXS15KXRN |
| Power Capacity | 15kVA / 15kW |
| Form Factor | Tower / Monolithic |
| Input Voltage | 208/120VAC (220/127VAC), 3-Phase, 4 Wire |
| Output Voltage | 120V / 127V / 208V / 220V AC |
| Input Frequency | 40Hz - 70Hz |
| Output Power Factor | 1.0 (Unity) |
| Waveform Type | Pure Sine Wave |
| Runtime (Full Load) | 15 Minutes |
| Runtime (Half Load) | 35 Minutes |
| Battery Type | Valve-Regulated Lead Acid (VRLA) |
| Number of Batteries | 84 |
| Battery Replaceable | Yes |
| Bypass | Integrated Maintenance Bypass Cabinet |
| Communication Slots | IS-UNITY-DP (SNMP/Modbus/TCP/BACnet IP) |
| Interfaces | USB, Serial, RJ-45, Parallel, EPO Port |
| Certifications | UL 1778, CSA 22.2, ENERGY STAR 2.0/2.1, RoHS, REACH, WEEE |
| Color | Black and Gray |
| Dimensions (H x W x D) | 62.9" x 17.3" x 29.5" |
| Weight | 888 lbs |
| Operating Temperature | Up to 32°F (0°C) |
| Sound Level | 58 dB(A) |
| Warranty | 1 Year Limited |
| Energy Efficiency | ENERGY STAR Certified |
| Included Accessories | Quick Start Guide, IS-UNITY-DP Card, Safety Instructions |
| Product Condition | New and Factory Fresh |
| Shipping Weight | 6 lbs |
