Description

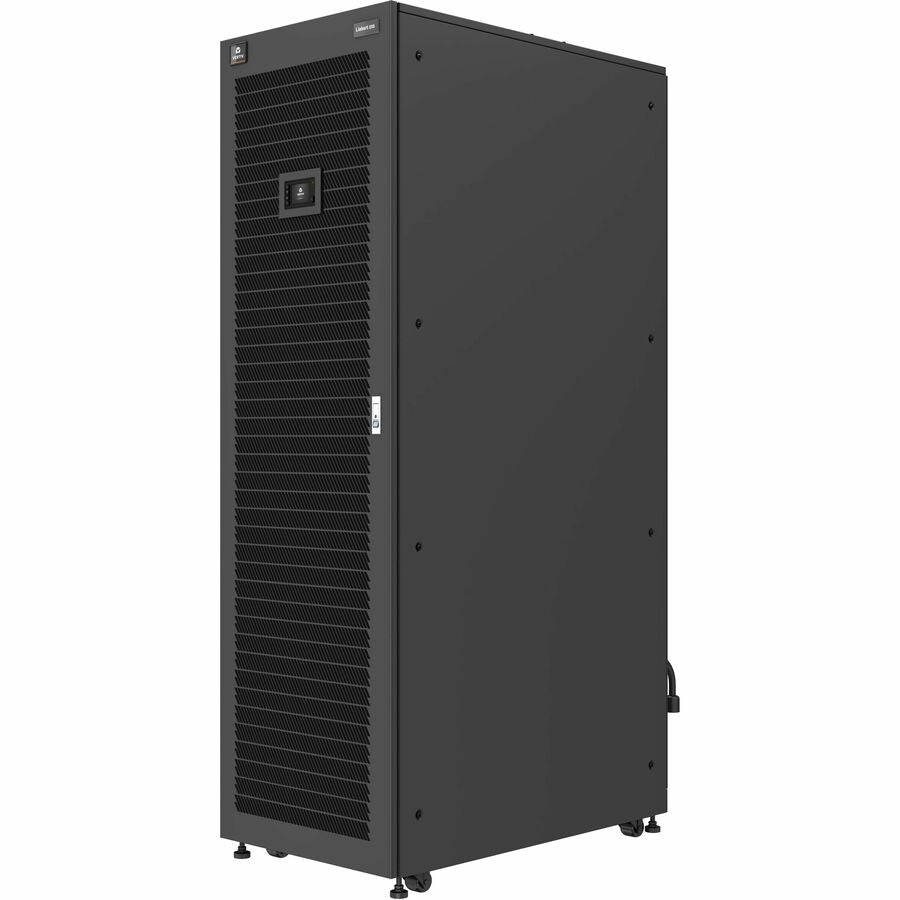

The Vertiv Liebert EXS V-Model EXSV-20KTN is a compact, high-performance 20kVA/20kW tower UPS that delivers continuous, clean power through double-conversion online technology. With unity power factor and a runtime of up to 11 minutes at full load, this UPS is ideal for protecting critical infrastructure in data centers, healthcare, manufacturing, banking, and IT environments. Featuring flexible battery arrangements, integrated maintenance bypass, and network-ready SNMP management, it ensures seamless operation and maintenance. ENERGY STAR® certified for efficiency, it offers robust power protection in a compact footprint.
| Specification | Details |
|---|---|
| Model | EXSV-20KTN |
| Form Factor | Tower |
| Power Capacity | 20kVA / 20kW |
| Power Factor | Unity (1.0) |
| Input Voltage | 120/230VAC, 3-Phase, 4-Wire |
| Output Voltage | 208/120VAC or 220/127VAC |
| Input Frequency Range | 40–70 Hz |
| Output Frequency | 60 Hz |
| Runtime (Full Load / Half Load) | 11 mins / 31 mins |
| Battery Type | Valve-regulated Sealed Lead Acid (VRLA) |
| Network Management | SNMP, Modbus, RS-485, Relay Contacts |

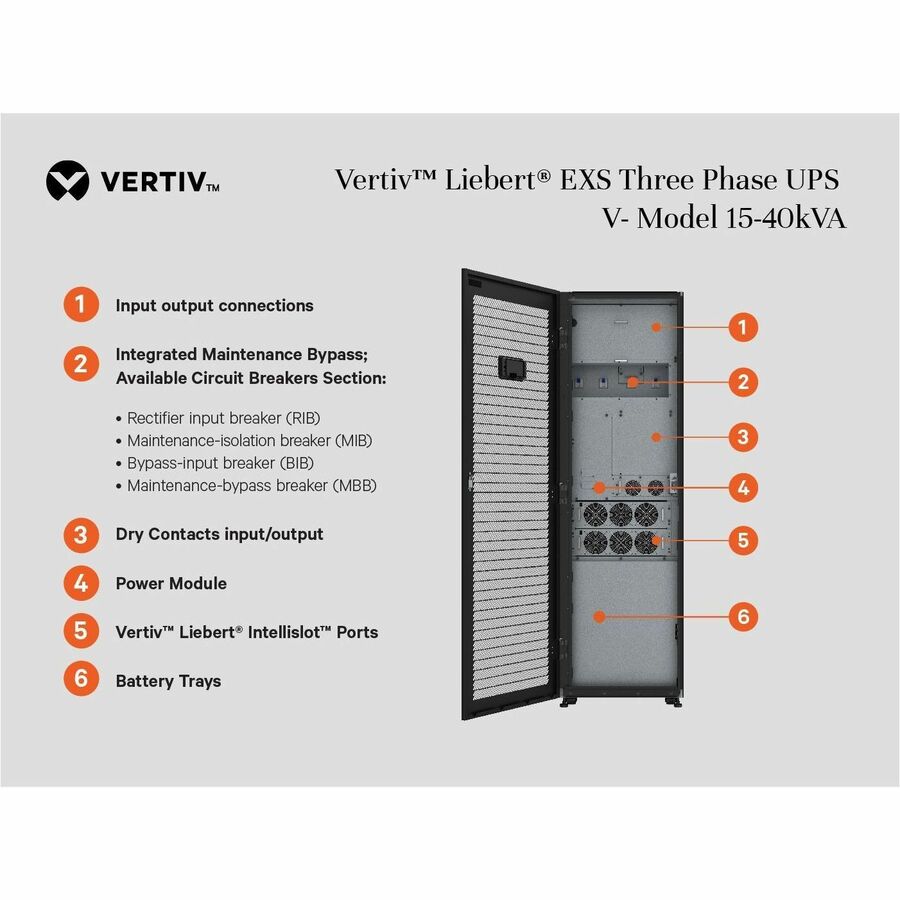

| Integrated Bypass | Yes (Maintenance Bypass Cabinet) |
| Certifications | ENERGY STAR 2.0, RoHS, WEEE, UL 1778, CSA |
| Environmental Sensors | Temperature, Humidity |
| Max Operating Temp | 104°F (40°C) |
| Max Operating Elevation | 4921 ft |
| Dimensions (H x W x D) | 78.7" x 23.6" x 39.3" |
| Weight (UPS / Battery) | 1212 lb / 527 lb |
| Included Software | Vertiv Power Insight (free download) |
| Warranty | 1 Year Limited |
