Description

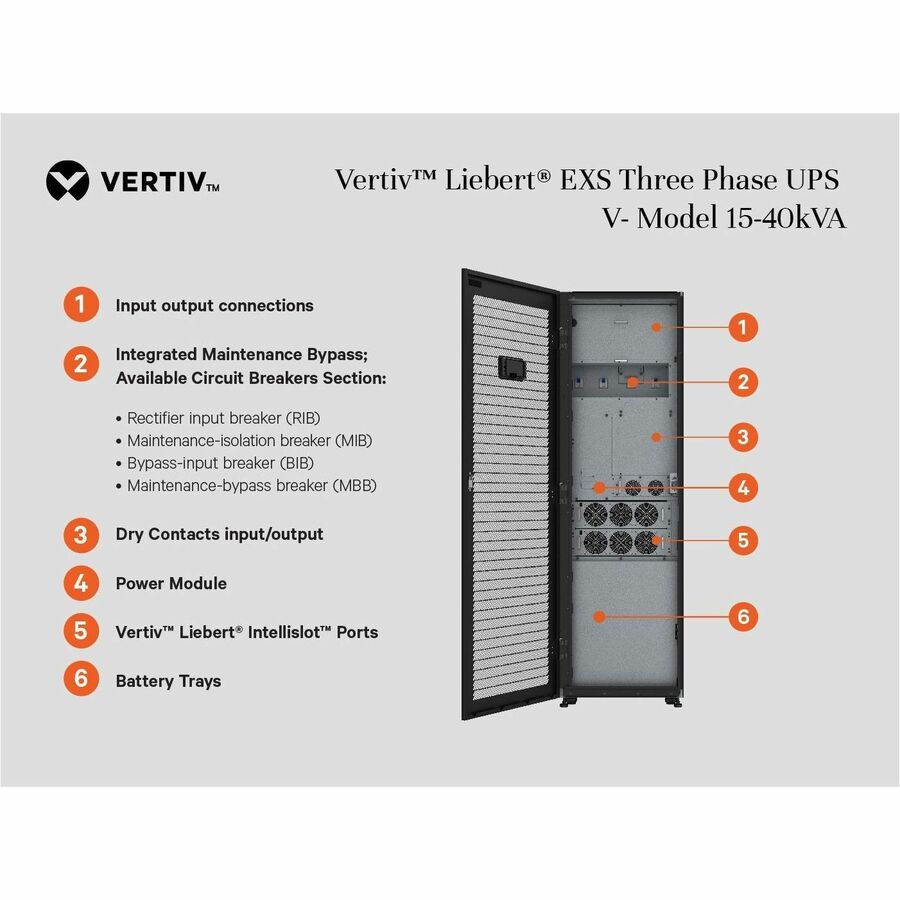

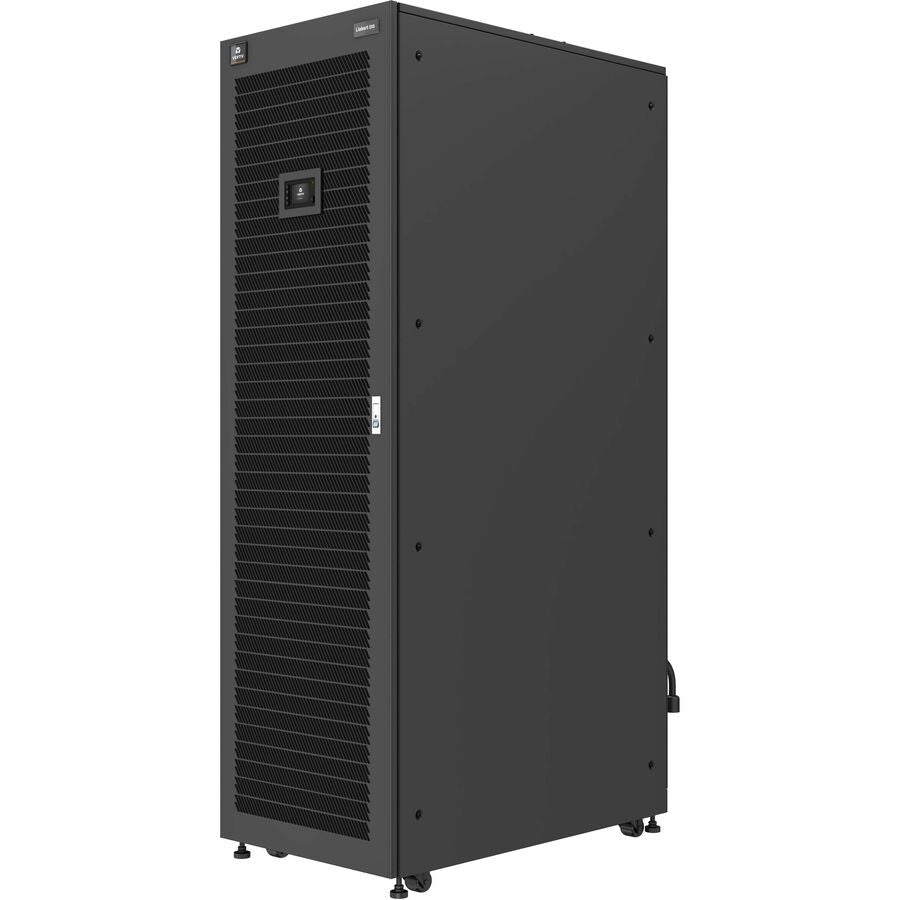

The Vertiv Liebert EXS V-Model (EXSV-20KXRN) is a compact, high-efficiency 20kVA/20kW UPS system with true online double-conversion technology. Engineered for critical applications such as IT, medical, and industrial environments, it delivers clean sine wave output and high availability via integrated maintenance bypass and advanced SNMP/Modbus network management. With 13 minutes of runtime at full load and a unity power factor, the EXSV-20KXRN offers maximum reliability and energy savings in a small footprint.
| Specification | Details |
|---|---|
| Model | EXSV-20KXRN |
| Form Factor | Tower |
| Power Capacity | 20kVA / 20kW |
| Input Voltage | 120V / 230V AC |
| Output Voltage | 208V / 120V AC (220/127V) |
| Input/Output Type | Hard Wire 4-Wire (3PH + G) |
| Output Power Factor | 1.0 (Unity) |
| Runtime (Full Load) | 13 minutes |
| Runtime (Half Load) | 36 minutes |
| Battery Type | Valve-regulated Lead Acid |
| Battery Weight | 762.60 lbs |
| Cooling Configuration | Top Fan |
| Management Interfaces | SNMP, Modbus RS-485, Modbus TCP, BacNet IP |
| Environmental Sensors | Humidity, Temperature |
| Operating Temperature | Up to 104°F (40°C) |
| Certifications | ENERGY STAR 2.0, RoHS, cULus, CSA |
| Software Included | Vertiv Power Insight (Free Download) |
| Dimensions (HxWxD) | 78.7" x 23.6" x 39.3" |
| Weight | 1455 lbs |
| Warranty | 1-Year Limited |
| Included Accessories | Intellislot SNMP Card, Quick Guide, Safety Docs |
