Description

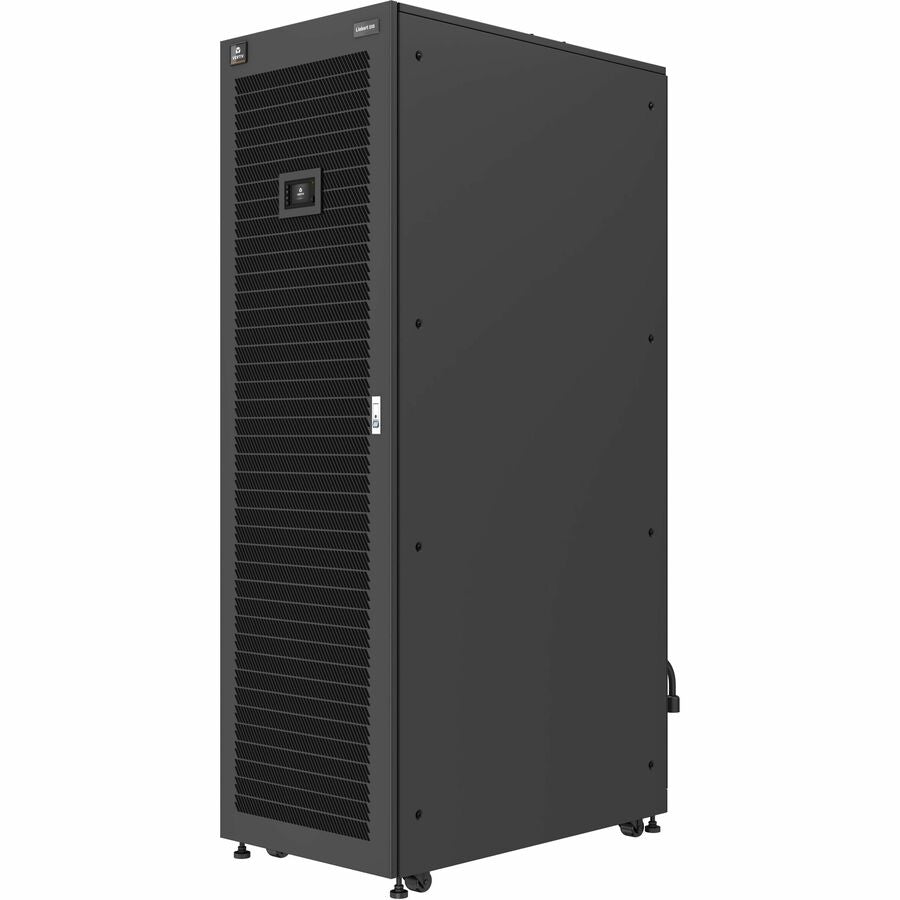

The Vertiv Liebert EXS V-Model (EXSV-30KTN) is a compact, high-efficiency online double-conversion UPS delivering reliable 3-phase power up to 30kVA/30kW. It supports sensitive IT and industrial systems in data centers, healthcare, and enterprise environments. Designed for space-saving installation, it includes a top-mounted fan, SNMP card, integrated maintenance bypass, and intelligent monitoring options. With flexible battery and PDU configurations, this ENERGY STAR® certified unit delivers unity power factor and up to 10 minutes of runtime at full load.
| Category | Details |
|---|---|
| Model | EXSV-30KTN |
| Brand | Vertiv Liebert |
| Series | EXS V-Model |
| UPS Type | On-Line Double Conversion |
| Form Factor | Tower |
| Rated Capacity | 30 kVA / 30 kW |
| Input Voltage | 120V / 230V AC |
| Output Voltage | 208V / 120V AC (220/127V compatible) |
| Input Frequency | 40–70 Hz |
| Output Frequency | 60 Hz |
| Power Factor | 1.0 (Unity) |
| Runtime (Full Load) | 10 minutes |
| Runtime (Half Load) | 26 minutes |
| Battery Type | Valve-Regulated Lead Acid |
| Battery Weight | 762.60 lbs |
| Management Interfaces | SNMP, Modbus RS-485, TCP/BacNet IP, Relay Contact, IS-Unity DP Slot |
| Environmental Sensors | Temperature & Humidity |
| Certifications | UL 1778, CSA, ENERGY STAR 2.0, RoHS, WEEE |
| Dimensions (H x W x D) | 78.7" x 23.6" x 39.3" |
| Weight | 1521 lbs |
| Shipping Weight | 587 lbs |
| Warranty | 1-Year Limited Warranty |
| Condition | New and Factory Fresh |
| Included Software | Vertiv™ Power Insight (free download) |
| Typical Applications | Data Centers, IT Rooms, Healthcare, VoIP, Security, Banking, Manufacturing |
