Description

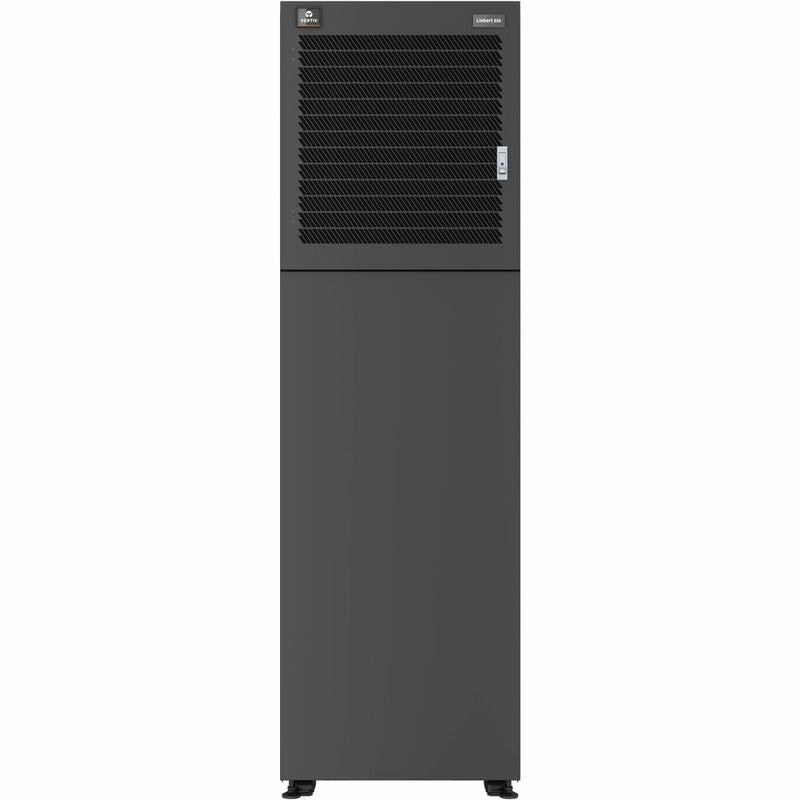

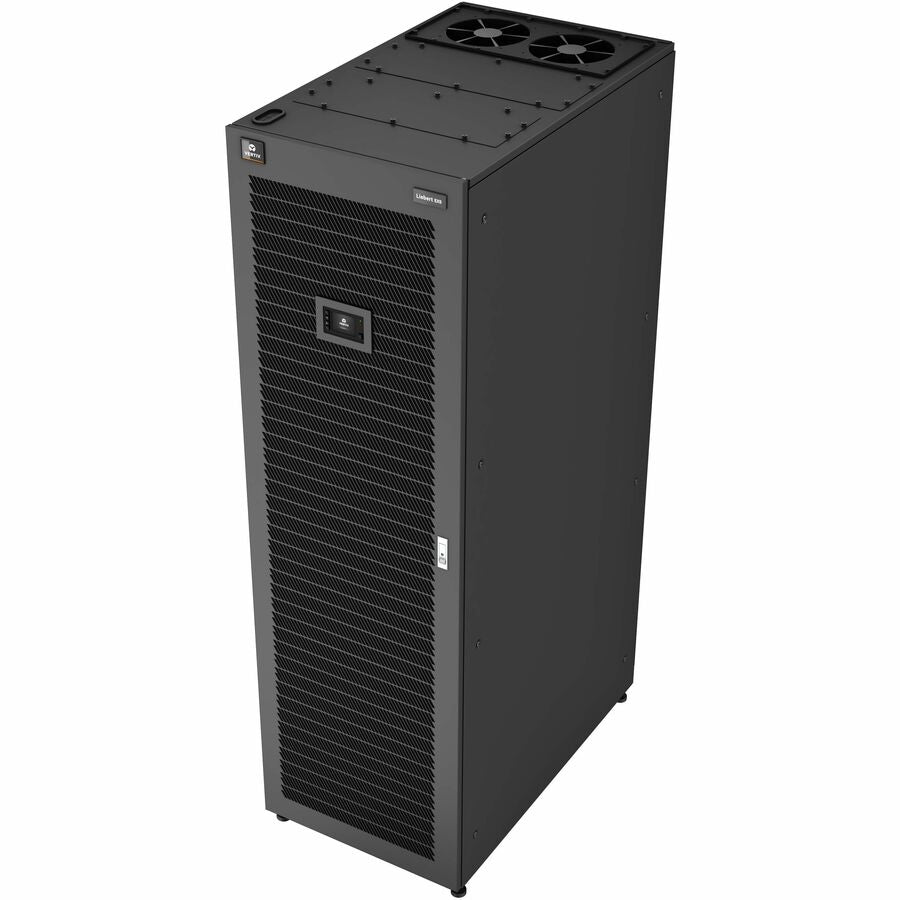

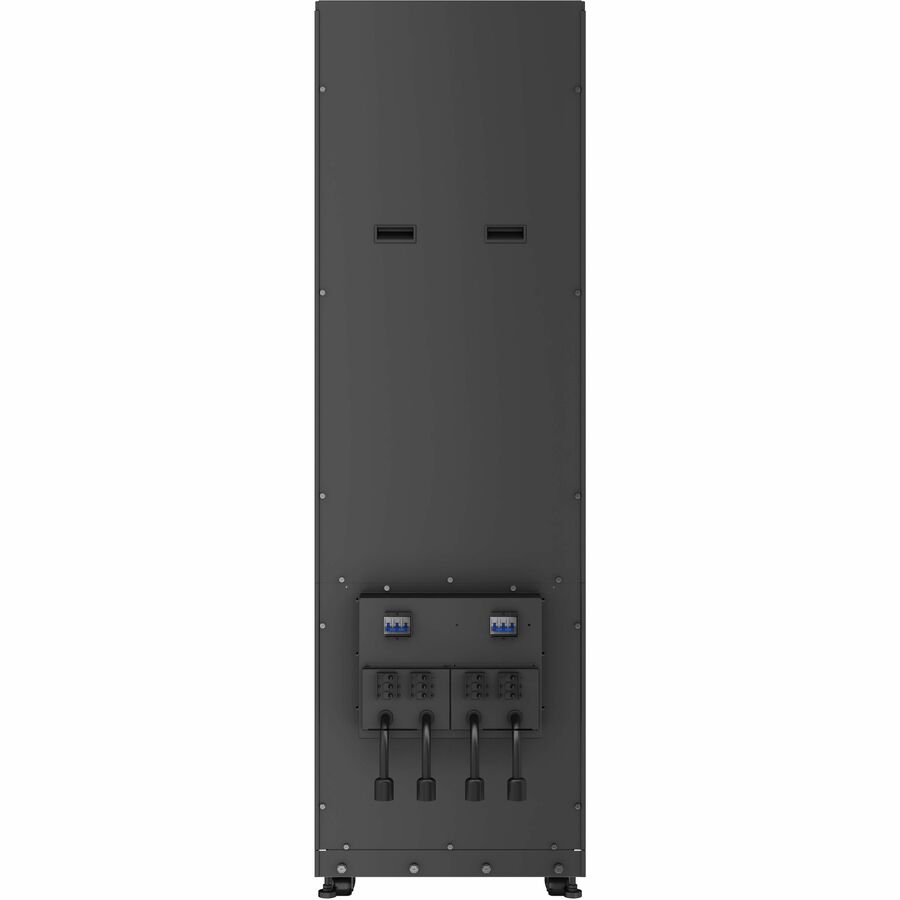

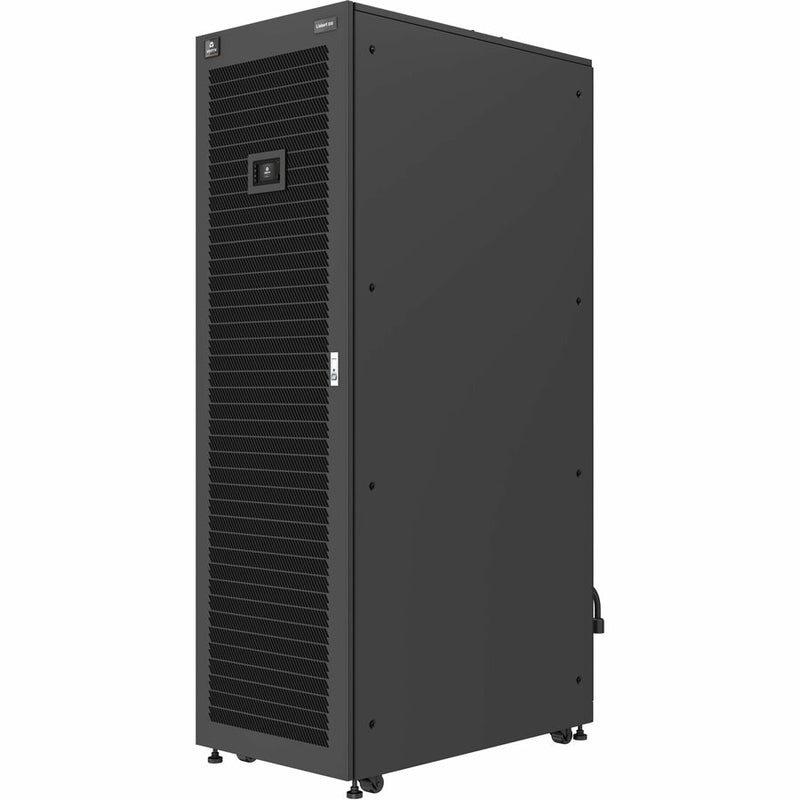

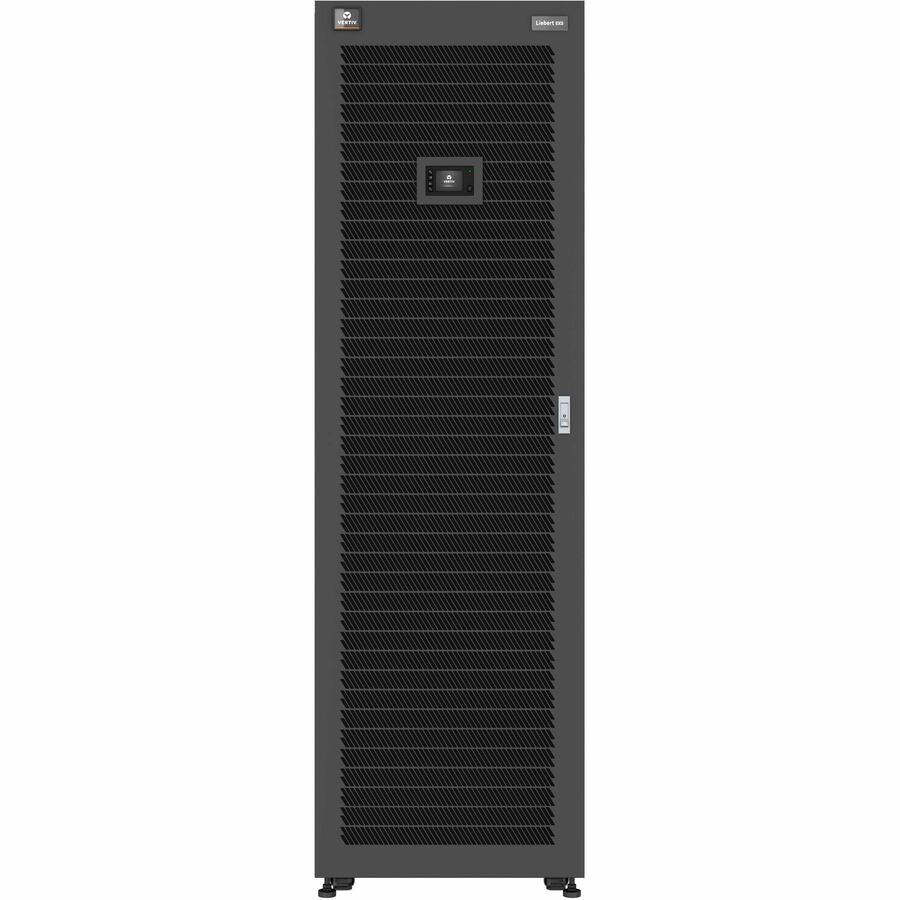

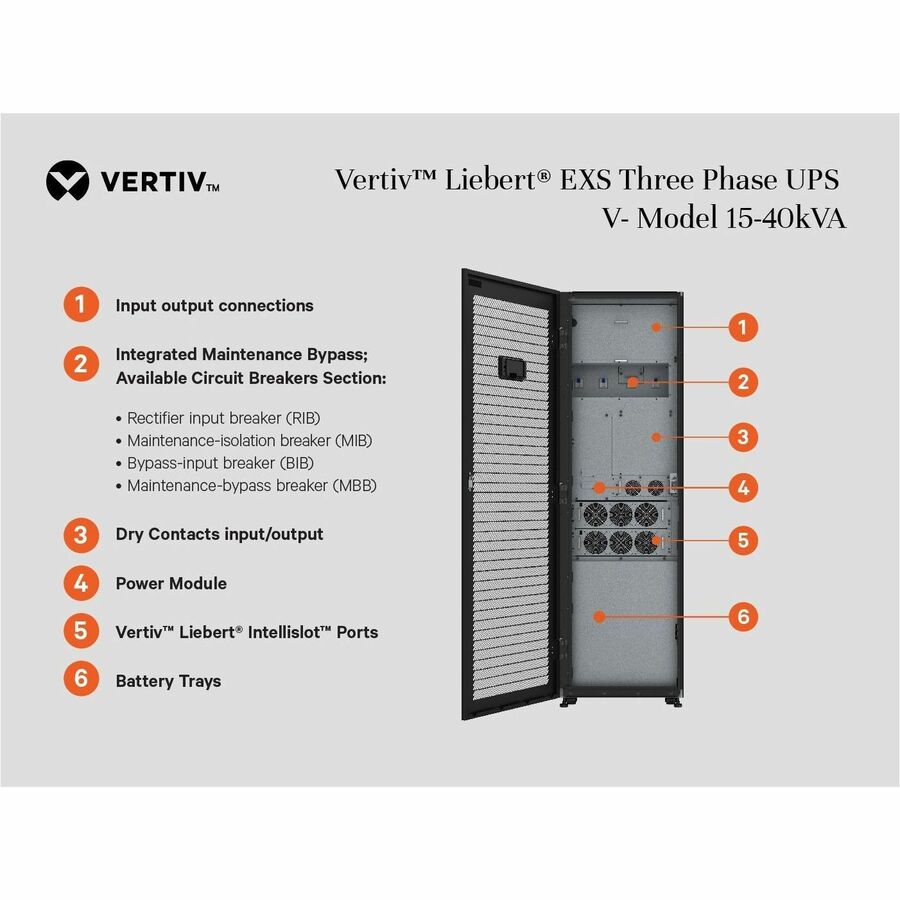

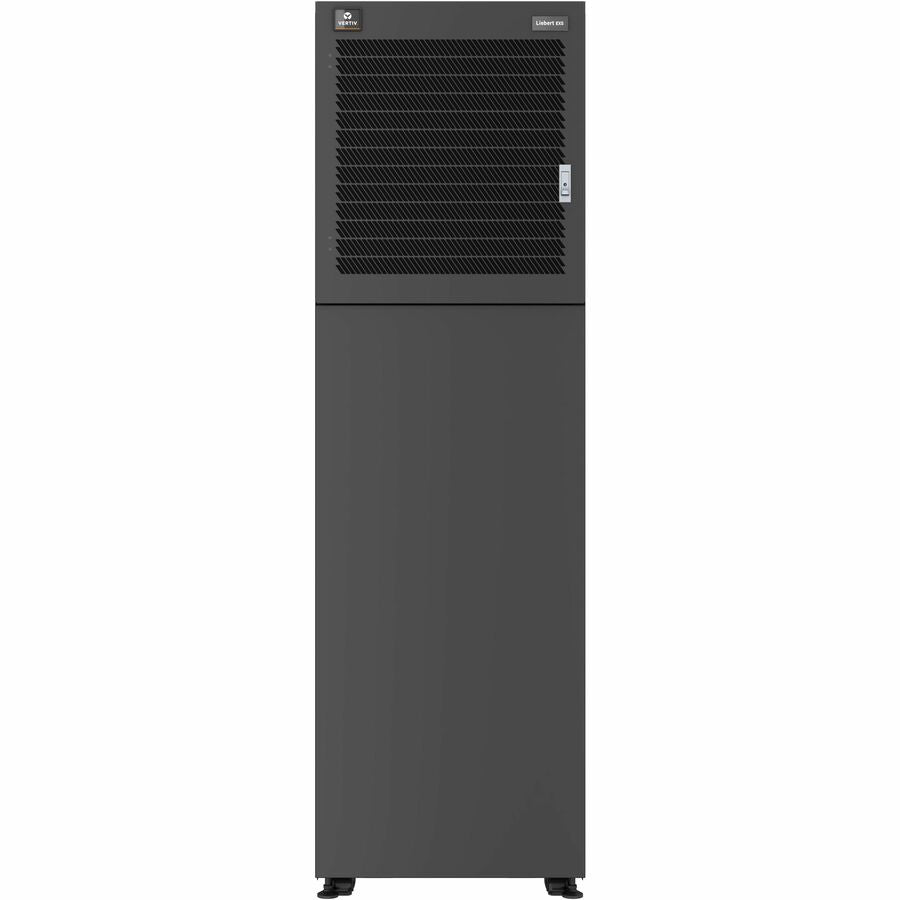

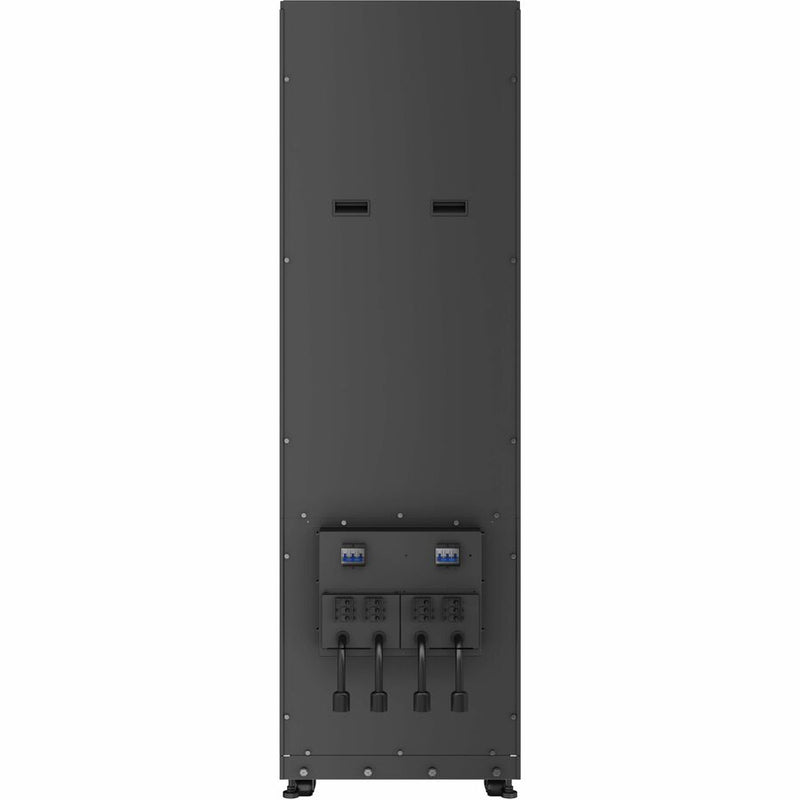

The Vertiv Liebert EXSV-40KN is a compact, high-performance online double-conversion UPS system delivering clean and continuous power to mission-critical equipment. With a 40kVA/40kW capacity, this three-phase UPS features a space-saving tower form factor, 6 minutes runtime at full load, and an integrated maintenance bypass cabinet. Ideal for IT rooms, VoIP, security systems, and industrial settings, it includes SNMP support via the pre-installed IS-Unity DP communication card. ENERGY STAR® certified and RoHS compliant, the EXSV-40KN ensures high power density, flexible configuration, and intelligent monitoring.
| Specification | Details |
|---|---|
| Brand | Vertiv Liebert |
| Model | EXSV-40KN |
| Series | EXS V-Model |
| Form Factor | Tower |
| Power Capacity | 40kVA / 40kW |
| Output Voltage | 208/120VAC, 220/127VAC |
| Input Voltage Range | 120–230 VAC (3-Phase, 4-Wire) |
| Power Factor | 1 (Unity) |
| Technology | Online Double-Conversion |
| Runtime (Full Load) | 6 Minutes |
| Runtime (Half Load) | 18 Minutes |
| Communication Interfaces | SNMP, Modbus RS-485, TCP/IP, BacNet IP, Relay |
| Included | IS-Unity DP Card, Power Insight Software |
| Environmental Monitoring | Humidity & Temperature Sensors |
| Certifications | ENERGY STAR 2.0, UL 1778, CSA, RoHS, WEEE |
| Dimensions (HxWxD) | 78.7" x 23.6" x 39.3" |
| Weight | 1543 lbs (UPS) / 609 lbs (Shipping) |
| Battery Type | Valve-regulated Lead Acid |
| Battery Weight | 762.6 lbs |
| Warranty | 1-Year Limited |
| Condition | New and Factory Fresh |
