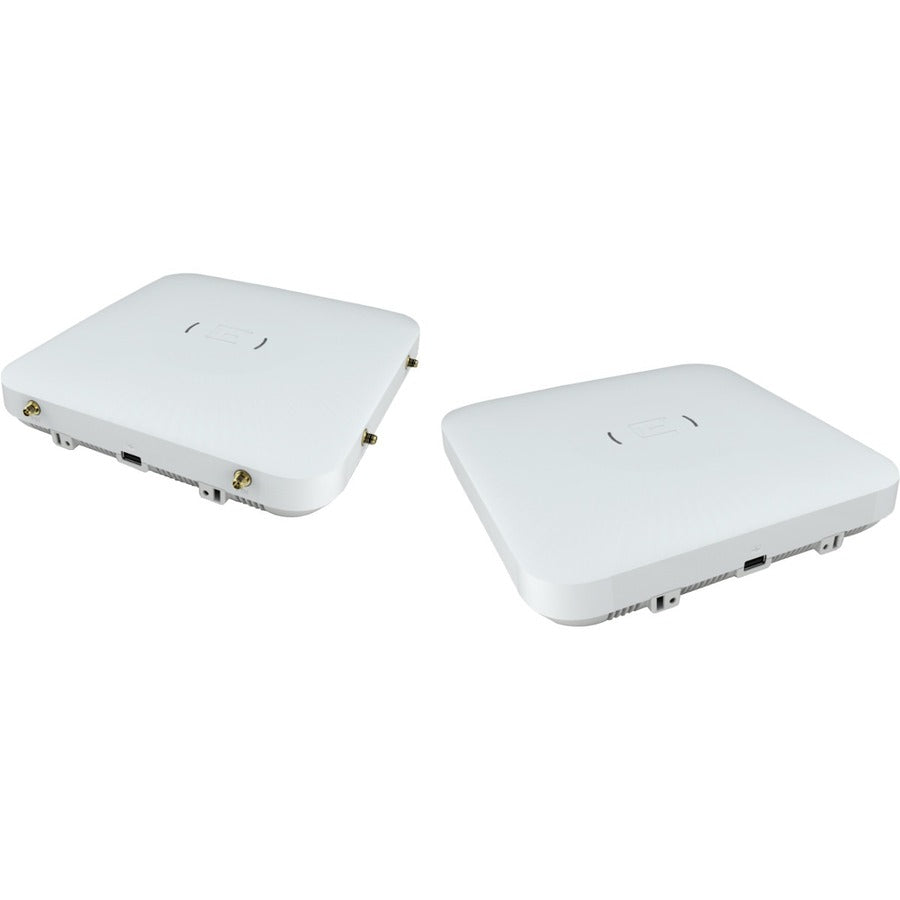

Extreme Networks ExtremeMobility AP510e 802.11ax 4.80 Gbit/s Wireless Access Point - TAA Compliant

Extreme Networks ExtremeMobility AP510e 802.11ax 4.80 Gbit/s Wireless Access Point - TAA Compliant
The mobile revolution is upon us. Enterprises are implementing digital transformation to connect with users, employees, guests, customers and IoT devices to help them better understand and manage their business, improve efficiencies, as well as the experience of their brand to customers and stock holders. However, today's Wi-Fi users have higher expectations, consume more bandwidth, and have less patience with a poor Wi-Fi experience. This is a challenge for every enterprise, as they struggle to keep pace with the seemingly exponential growth of Wi-Fi demand and data hungry applications - until now.

Designed to leverage the performance improvements delivered with 802.11ac wave 2, 802.11ax borrows key technology from cellular to increase device capacity and improve spectral efficiency, extracting more out of available Wi-Fi spectrum. Bottom line, 802.11ax will support more users and IoT devices, providing each the spectrum they require, future proofing enterprise wireless networks, while minimizing the upgrade fatigue they have been experiencing to date.

Purpose Built to Meet the Needs of Many

Extreme's AP510i/e is a high performance, enterprise class 802.11ax access point at the price/performance point that is ideal for many verticals, including; retail, education, hospitality and healthcare. These enterprises need to support a high density of users and IoT devices, while delivering an exceptional user experience.

The AP510i/e is managed by the SmartOmniEdge solution and powered by the WiNG 7 operating system. WiNG's legendary distributed architecture places the intelligence at the edge where it unleashes the true capabilities and performance of 802.11ax, without bottlenecks and limits. WiNG incorporates the functionality of a controller in each access point, enabling network solutions with controller-less solutions using a virtual controller that supports up to 64 access points or distributed solutions comprised of branch sites with up to 256 access points per site. The solution can scale to 25,000 access points and are managed with a simple, cloud UI and workflow with ExtremeCloud or ExtremeCloud Appliance for campus and private cloud networks.

Extreme Software Configurable Radio

Industry's first 802.11ax access point with three software programmable modes to optimally manage for dual 5 GHz radios for the most dense environments. The AP510i/e is managed by the Smart OmniEdge solution and powered by the WiNG 7 operating system allows for software configurable radios. Network managers can determine software network topology based on user environment and configure the access points in different modes of operations:

Mode 1 - Traditional dual radio 2.4 GHz and 5 GHz radio
Mode 2 - 2.4 GHz/5 GHz sensor Radio 1 and 5 GHz on Radio 2
Mode 3 - Dual 5 GHz radio

• Delivers exceptional end-user experience even in dense user environments such as stadiums, large public venues, convention centers and school auditoriums.


• Software configurable for dual 5 GHz 11ax radios for the most challenging environments.


• Improve user experience and device performance with 8 spatial streams (4x4:4 5 GHz, 4x4:4 2.4 GHz), with MU-MIMO and OFDMA technology.


• Includes the latest WPA3 Wi-Fi security standard with 192-bit encryption and delivering robust protections for users and IoT devices.


• ExtremeAI and SmartRF uses AI/ML technology to monitor and automatically adjust Wi-Fi radios to achieve the best coverage and greatest client performance, even in dynamic RF environments.


• Mission critical networks for 24/7 operations.


• Minimizess the impact of interference from cellular networks.


• Limit Performance on 802.3 af.


• Leverage the integrated Bluetooth to connection to IoT devices with Thread™ or engage loyalty customers with Apple iBeacon™. Enterprises can use Google Eddystone™ to send advertisements directly to shoppers, guests, and conference attendees, even without a loyalty app pre-installed. This makes it ideal for businesses to advertise their app-download pages, captive portals, or site-specific information.


• ExtremeCloud™ delivers a powerful user experience with simple and secure network management.
