Description

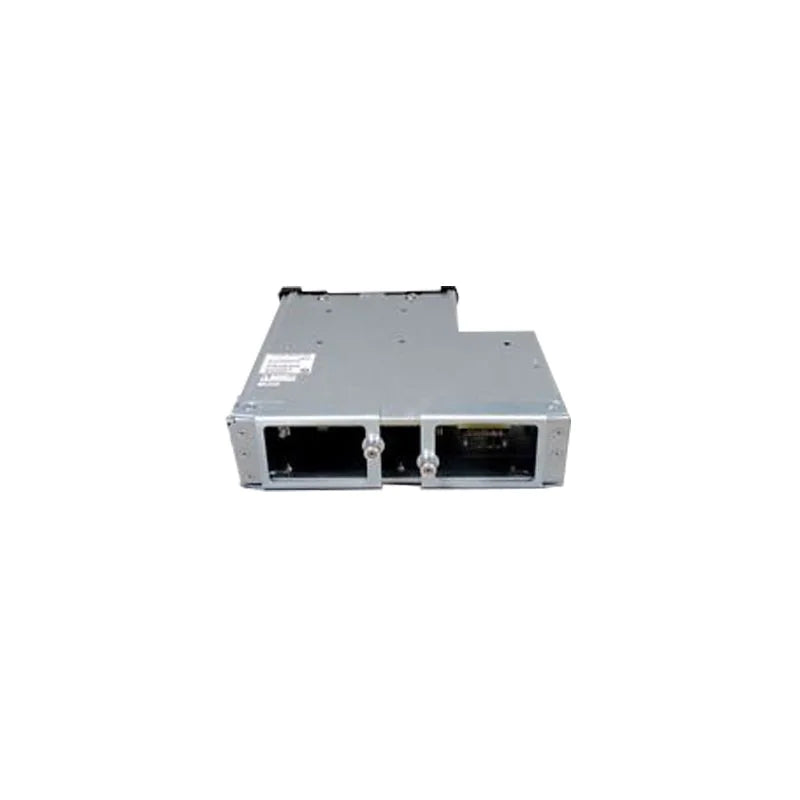

The Cisco N9K-C9504-FM-E= Fabric Module is engineered to deliver high-performance switching capacity for Cisco Nexus 9504 modular data center platforms. Designed to support 100G throughput, this enhanced fabric module enables non-blocking, low-latency communication between line cards, ensuring consistent performance in demanding enterprise and cloud environments.
Fully compatible with Cisco ACI and NX-OS, the N9K-C9504-FM-E= integrates seamlessly into modern software-defined architectures, allowing centralized management, automation, and policy-based networking. Its hot-swappable design supports continuous operation and simplified maintenance, making it ideal for mission-critical data centers requiring scalability, reliability, and future-ready network performance.
This fabric module is well suited for organizations expanding their Nexus 9500 deployments, upgrading to higher bandwidth workloads, or standardizing on Cisco’s ACI-driven infrastructure.
Key Features
-
Supports 100G fabric bandwidth for high-performance switching
-
Fully compatible with Cisco ACI and NX-OS
-
Optimized for Cisco Nexus 9504 modular chassis
-
Hot-swappable for simplified maintenance and uptime
-
Enterprise-grade reliability for data center environments
-
Designed for scalable, non-blocking fabric architectures
| Specification | Details |
|---|---|
| Brand | Cisco |
| Model | N9K-C9504-FM-E= |
| Product Type | Fabric Module |
| Supported Platform | Cisco Nexus 9504 |
| Port Speed Supported | 100G |
| Number of Ports | 4 |
| Operating System Support | NX-OS |
| ACI Compatibility | Yes |
| Layer Support | Layer 2 / Layer 3 |
| Supported Protocols | Ethernet, IPv4, IPv6 |
| Reliability Features | Hot-swappable |
| Cooling | Front-to-Back Airflow |
| Power Consumption | Varies by configuration |
| Dimensions (W × H × D) | 440 × 44 × 463.3 mm |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 5% to 90% (non-condensing) |
| Compliance | RoHS, CE, FCC |
| MTBF | 300,000 hours |
| Warranty | 1 Year |
