Description

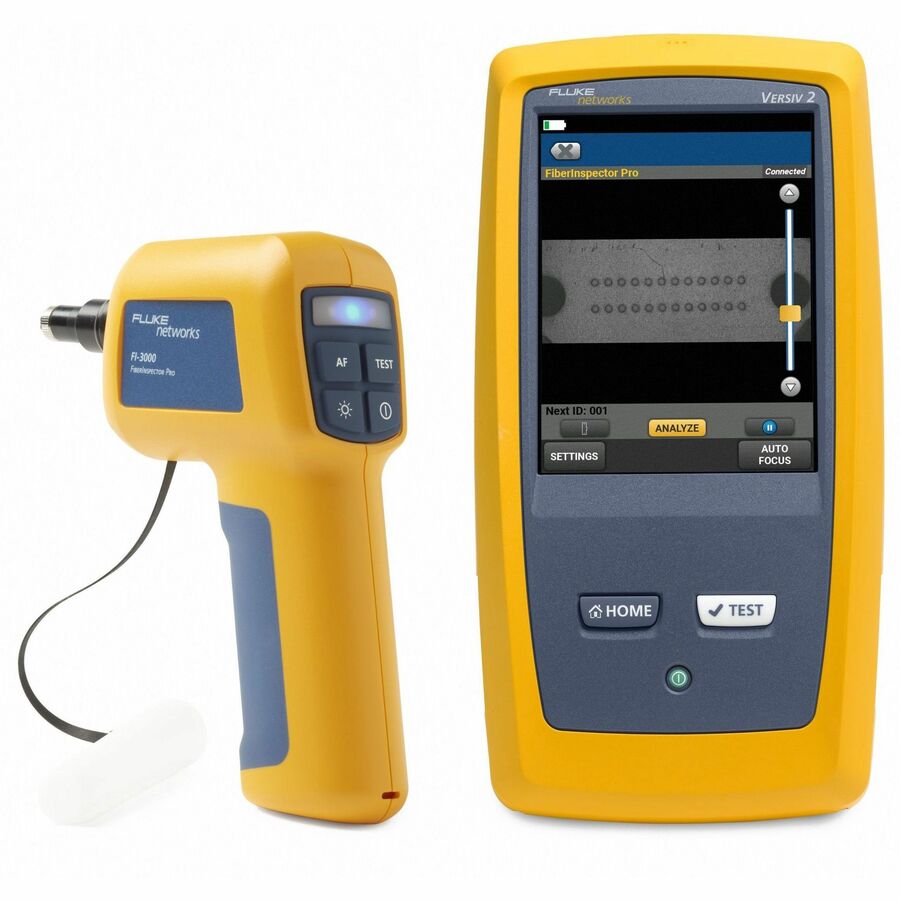

The Fluke Networks FI2-7300-NW FiberInspector™ Ultra V2 delivers fast, accurate, and efficient MPO inspection for data center and enterprise fiber networks. Featuring integrated Wi-Fi disabled for secure environments, it provides total MPO endface visibility from full trunk to individual fiber via Live View.
With its multiple autofocus and autocentering cameras, real-time imaging is effortless, while the optional automated PASS/FAIL feature delivers results in seconds, compliant with IEC 61300-3-35 standards. Integration with Versiv™ and LinkWare™ platforms allows seamless testing, documentation, and result sharing via mobile devices using the FI-IN app.
Designed with a rugged, ergonomic body and convenient holster, the FI2-7300-NW supports one or two rows of 8, 12, or 16 UPC/APC connectors, ensuring compatibility with a wide range of MPO configurations. The PortBright™ illumination makes it easy to locate ports in dark, high-density panels, while the detailed analysis highlights contamination, pits, and scratches for targeted cleaning or maintenance.
Whether deployed in data centers, enterprise backbones, or telecom networks, the FI2-7300-NW is the go-to solution to eliminate the #1 cause of fiber failures — dirty connectors — while boosting inspection speed, accuracy, and productivity.
| Feature | Specification |
|---|---|
| Model | FI2-7300-NW FiberInspector™ Ultra V2 |
| Wi-Fi | Integrated Wi-Fi disabled |
| MPO Endtype Support | 1x8 (8 fibers), 1x12 (8/10/12 fibers), 1x16 (16 fibers), 2x12 (16/20/24 fibers), 2x16 (32 fibers) |
| Camera Type | 5 MP 1/4-inch CMOS sensor |
| Field of View | 610 µm x 460 µm |
| Resolution | 1 µm |
| Light Source | LED (>100,000 hr life) |
| Illumination | Coaxial blue LED for endface, white LED for port |
| Battery Type | Lithium-ion; ~10.8 hours life |
| Power Adapter | Input: 100–240 VAC ±10 %, 50/60 Hz; Output: 15 VDC, 2 A max |
| Dimensions | 168 x 137 x 54 mm (6.625 x 5.375 x 2.125 in) without dust cap |
| Weight | 326 g (11.5 oz) with dust cap, no adapter tip |
| Operating Temp. | -10 °C to +45 °C (14 °F to 113 °F) |
| Storage Temp. | -10 °C to +60 °C (14 °F to 140 °F) |
| Humidity | 0%–95% non-condensing |
| Altitude | Operating: up to 4,000 m (3,200 m with AC adapter); Storage: up to 12,000 m |
| Drop Test | 1 meter |
| Certifications | IEC 61010-1, IEC 61326-1, CISPR 11, FCC Part 15 |
