Description

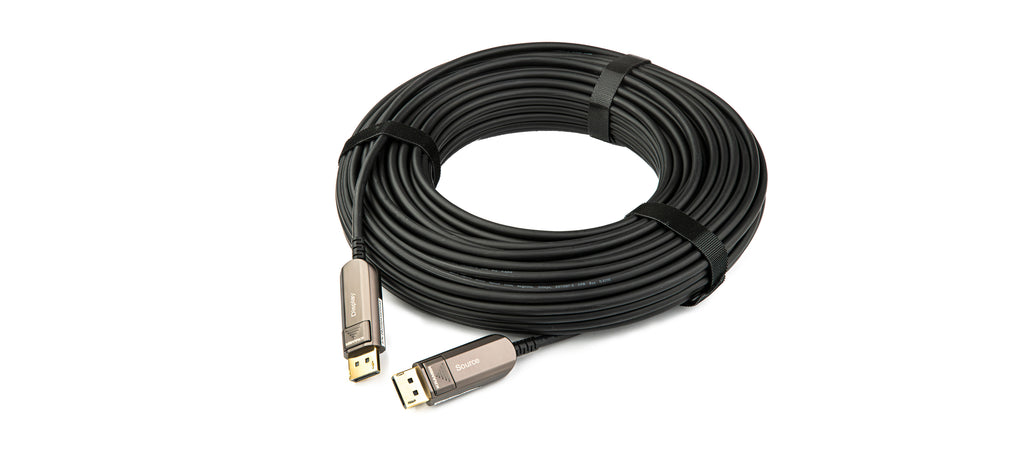

The Kramer CLS-AOCDP/UF-50 is an ultra-high-speed 50ft Active Optical DisplayPort 1.4 cable engineered for professional AV, eSports, control rooms, digital signage, and long-distance workstation setups requiring flawless 8K performance. Designed with LSHF (Low Smoke, Halogen-Free) construction, this hybrid optical/copper cable maintains excellent signal integrity while meeting stringent safety requirements for modern installations.
Supporting 8K@60Hz, HBR3 32.4Gbps bandwidth, HDR-ready color depth, and multi-channel audio, this AOC delivers the full capabilities of DisplayPort 1.4 over long distances—without external power or additional extenders. Its thin 4.8mm profile, high flexibility, and robust connector design make it ideal for in-wall routing, cable management systems, and demanding commercial deployments.
Installers benefit from reliable EDID/HDCP handling, stable long-run performance, and compliant, safe materials—ensuring a clean, high-quality signal path from source to display.
| Category | Specification |
|---|---|
| Model / SKU | CLS-AOCDP/UF-50 |
| Cable Type | Active Optical DisplayPort 1.4 Cable (Hybrid Fiber + Copper) |
| Resolution Support | Up to 8K@60Hz (7680×4320) |
| Max Data Rate | 32.4Gbps (HBR3) |
| Max Color Depth | 48-bit |
| DisplayPort Features | HDCP 2.2, EDID, DPCP |
| Audio Support | Up to 8 channels, 16/24-bit linear PCM |
| Audio Sampling Rate | 32–192 kHz |
| Connectors | Gold-plated male DisplayPort |
| Fiber Structure | 4× 850nm multimode fibers |
| Copper Conductors | 2×26AWG + 4×28AWG + 2×24AWG |
| Outer Jacket | LSHF, PVC Black |
| Outer Diameter | 4.8mm |
| Minimum Bend Radius | 48mm |
| Connector Pull Strength | 25.17 kg |
| Compression Load Resistance | 300N |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | –20°C to +85°C |
| Humidity | 5%–85% |
| Power Consumption | <0.5W per end (self-powered via DP connector) |
| Regulatory Compliance | LSHF EN 60332-1-2, EN 50399; RoHS 2011/65/EU; CE/FCC |
