Description

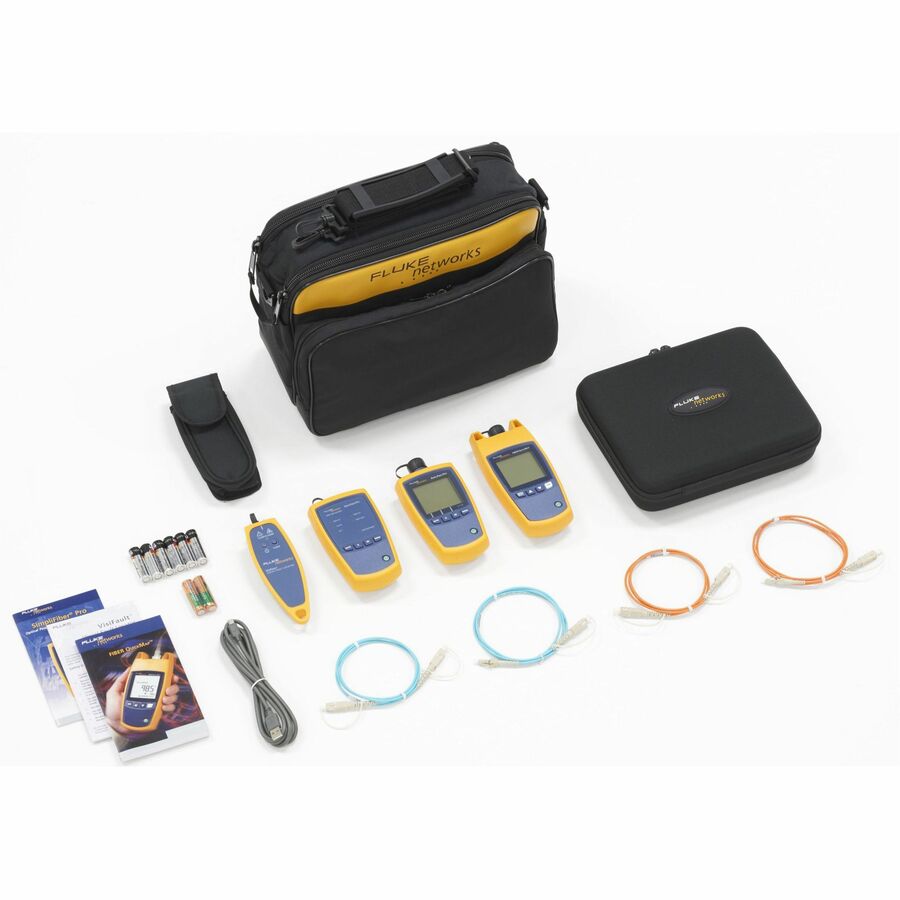

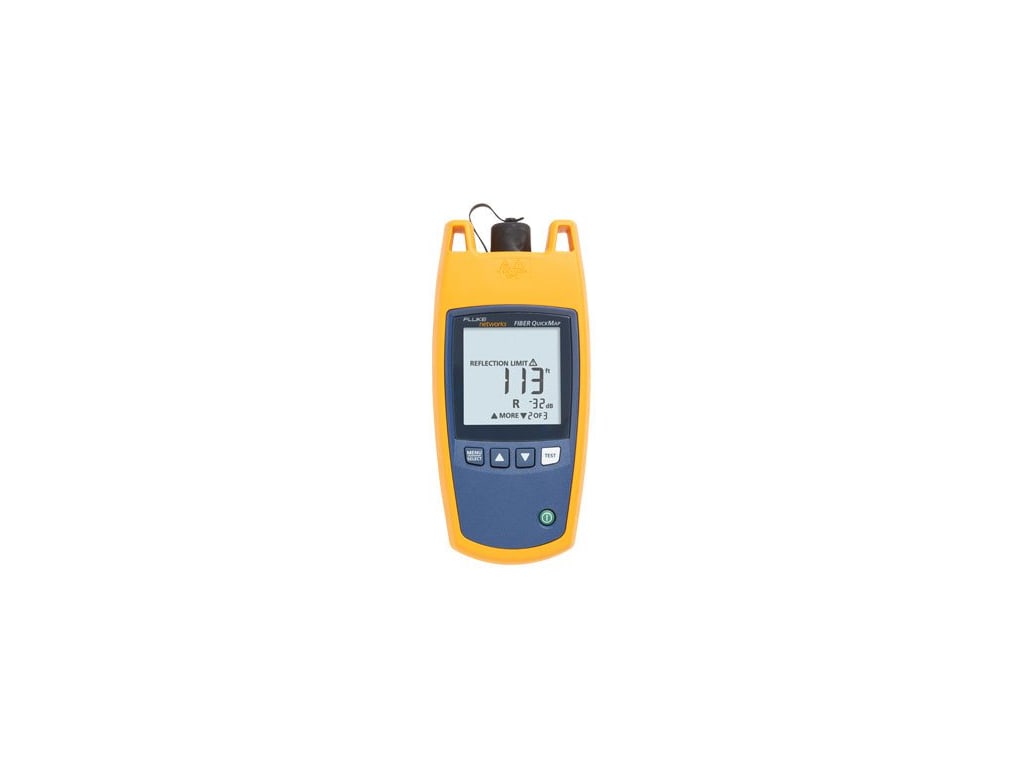

The Fluke Networks FQM-SFP-M Fiber QuickMap Kit with SimpliFiber Pro is a fast, accurate, and easy-to-use multimode fiber distance and fault locator designed for network professionals. It bridges the gap between a Visual Fault Locator (VFL) and a full Optical Time Domain Reflectometer (OTDR), providing essential distance and loss information without the complexity or cost of advanced OTDR units.
With a simple one-button operation and results in under six seconds, this tool helps identify severe bends, high-loss splices, breaks, dirty connectors, and other causes of high bit error rates. The SimpliFiber Pro adds power measurement capability, ensuring comprehensive fiber diagnostics.
Ideal for datacenter, enterprise, and field environments, the FQM-SFP-M provides technicians with reliable troubleshooting and maintenance capabilities for multimode fiber networks—saving time, reducing downtime, and increasing efficiency.
| Feature | Specification |
|---|---|
| Fiber Types | Multimode: 50/125 µm, 62.5/125 µm |
| Output Wavelength | 850 nm ± 10 nm |
| Measurement Range | Up to 1,500 m (4,921 ft) |
| Dynamic Range | > 11 dB |
| Incident Display | Maximum of 9 incidents shown |
| Distance Accuracy | ± (1 m + 0.1% × length) for reflective events; ± (3 m + 0.1% × length) for non-reflective events |
| Loss Detection Threshold | Default 0.70 dB (user-configurable 0.5–6.1 dB in 0.2 dB increments) |
| Reflectance Detection Threshold | Default -35 dB (user-configurable -20 to -45 dB in 5 dB increments) |
| Live Fiber Detection | 600–1050 nm, +7 dBm max input power |
| Testing Speed | < 6 seconds |
| Display | Backlit black-and-white LCD |

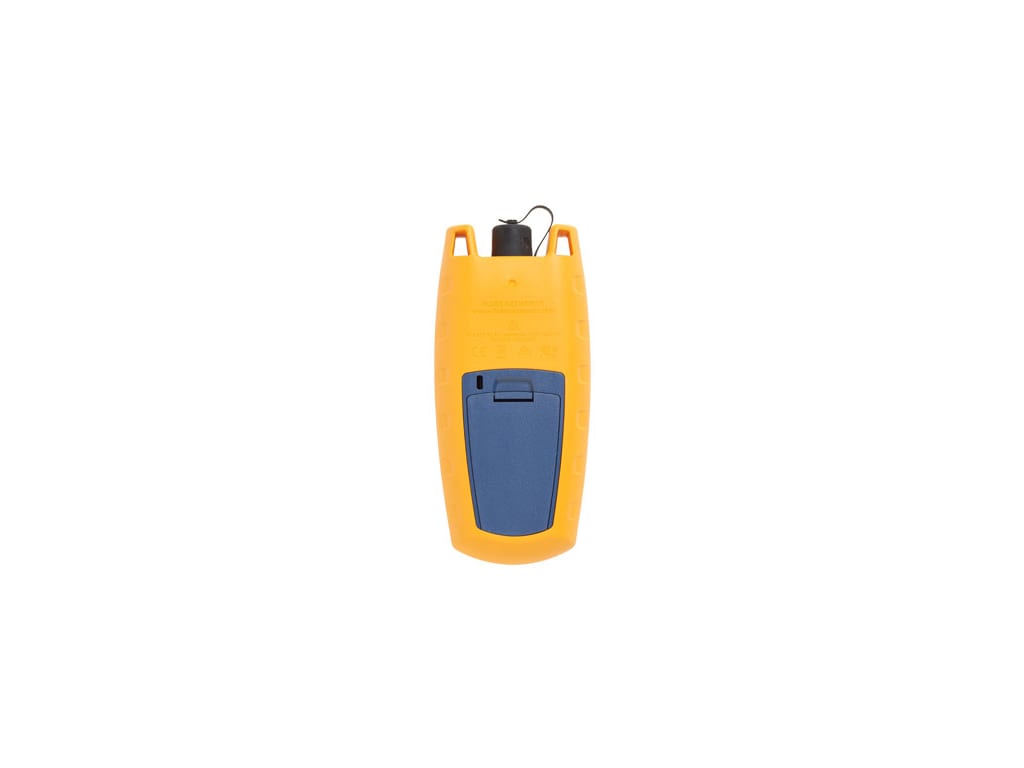

| Power | 2 × AA alkaline batteries (up to 1,500 tests typical) |

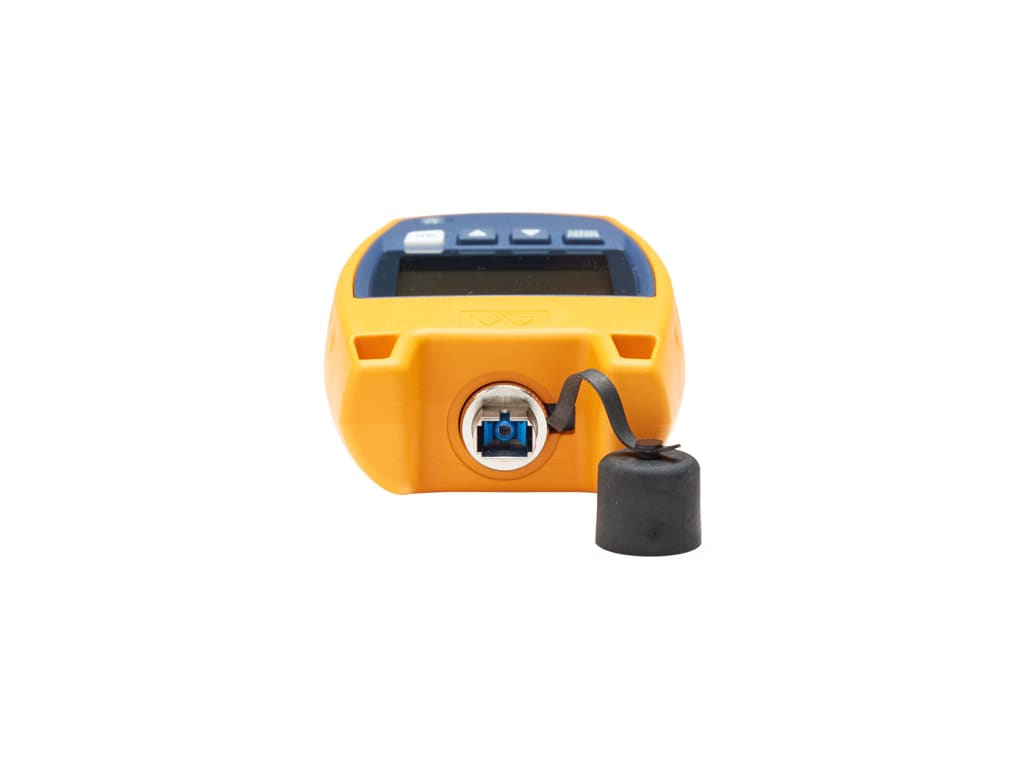

| Connector Type | Removable/cleanable SC adapter (UPC polish) |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Drop Test | 1 meter |
| Compliance | EN 61326-1:2004, Class 1 CDRH (EN 60825-2) |
