Description

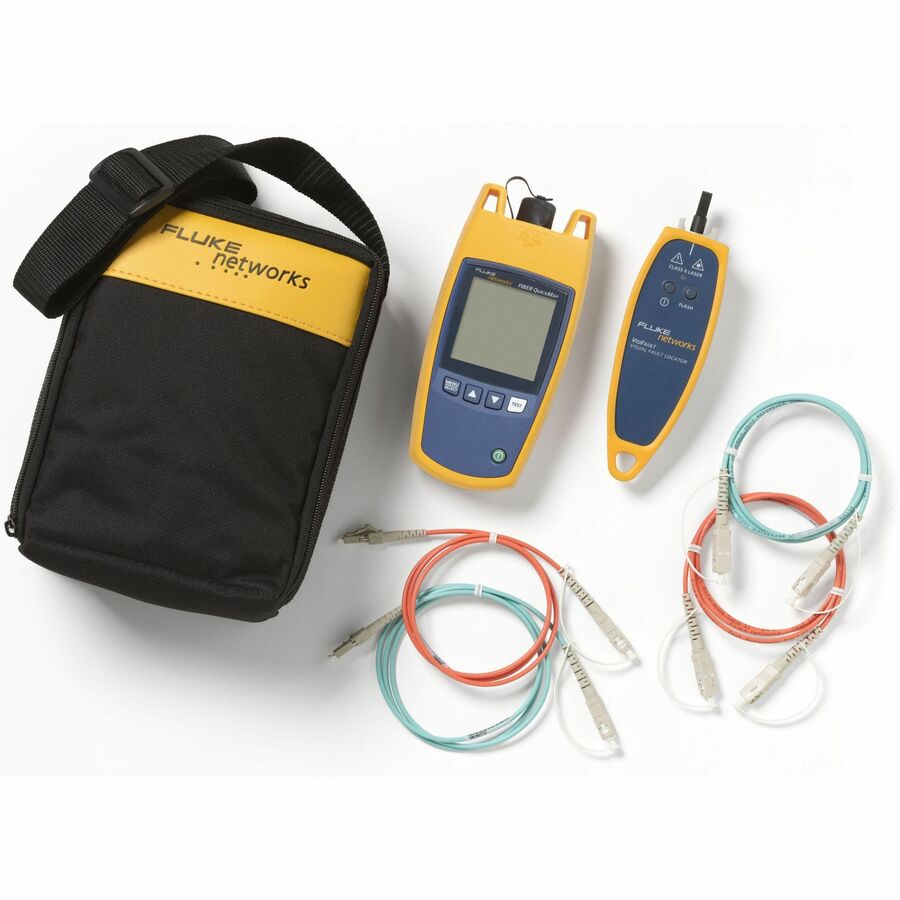

The Fluke Networks FQM-100-M-VFL Fiber QuickMap Kit with VisiFault is an advanced multimode fiber troubleshooting solution that bridges the gap between a simple Visual Fault Locator (VFL) and a complex OTDR. Designed for quick, accurate fault detection, this tool works with 50/125 µm and 62.5/125 µm multimode fibers, measuring distances up to 1,500 meters (4,921 feet) in seconds.
Equipped with an integrated VisiFault Visual Fault Locator, it identifies severe bends, high-loss splices, breaks, and dirty connectors. It detects live optical signals before testing, reducing risk of equipment damage. The device offers simple one-button operation, six-second test times, and a large backlit display for easy viewing in low-light environments. Rugged and portable, it is ideal for field technicians who need fast and reliable fiber diagnostics without the complexity of full OTDR operation.
| Specification | Details |
|---|---|
| Fiber Type | Multimode (50/125 µm, 62.5/125 µm) |
| Output Wavelength | 850 nm ± 10 nm |
| Measurement Range | Up to 1,500 m (4,921 ft) |
| Dynamic Range | >11 dB |
| Detection Capabilities | High-loss splices, severe bends, breaks, dirty connectors, live optical signals |
| Test Speed | < 6 seconds typical |
| Display | Backlit LCD (black & white, segment display) |
| Connector | Removable/cleanable SC adapter, UPC polish |
| Power Source | 2 × AA alkaline batteries |
| Battery Life | Up to 1,500 tests typical |
| Dimensions / Weight | Rugged, drop-tested to 1 m |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Compliance | EN 61326-1:2004, CSA, FCC, EU & Australian standards |
| Included Accessories | VisiFault VFL (2.5 mm adapter), SC adapter, UPC-UPC 2 m patch cord, carrying case, quick reference guide, batteries |
