Description

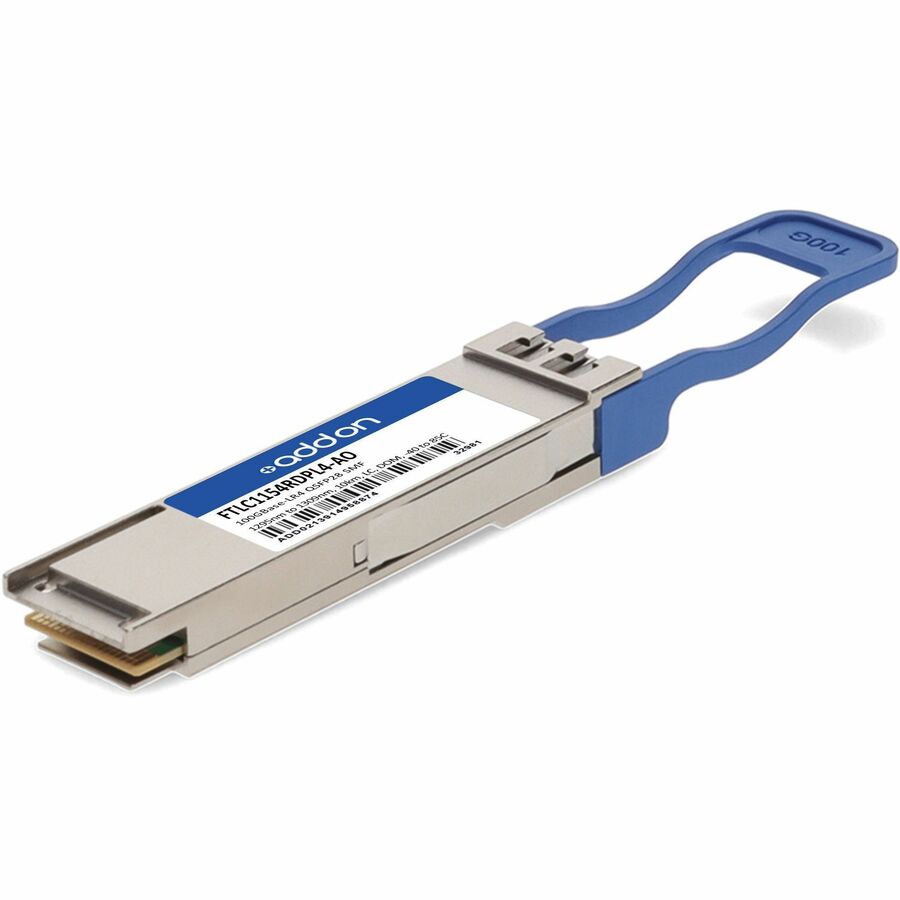

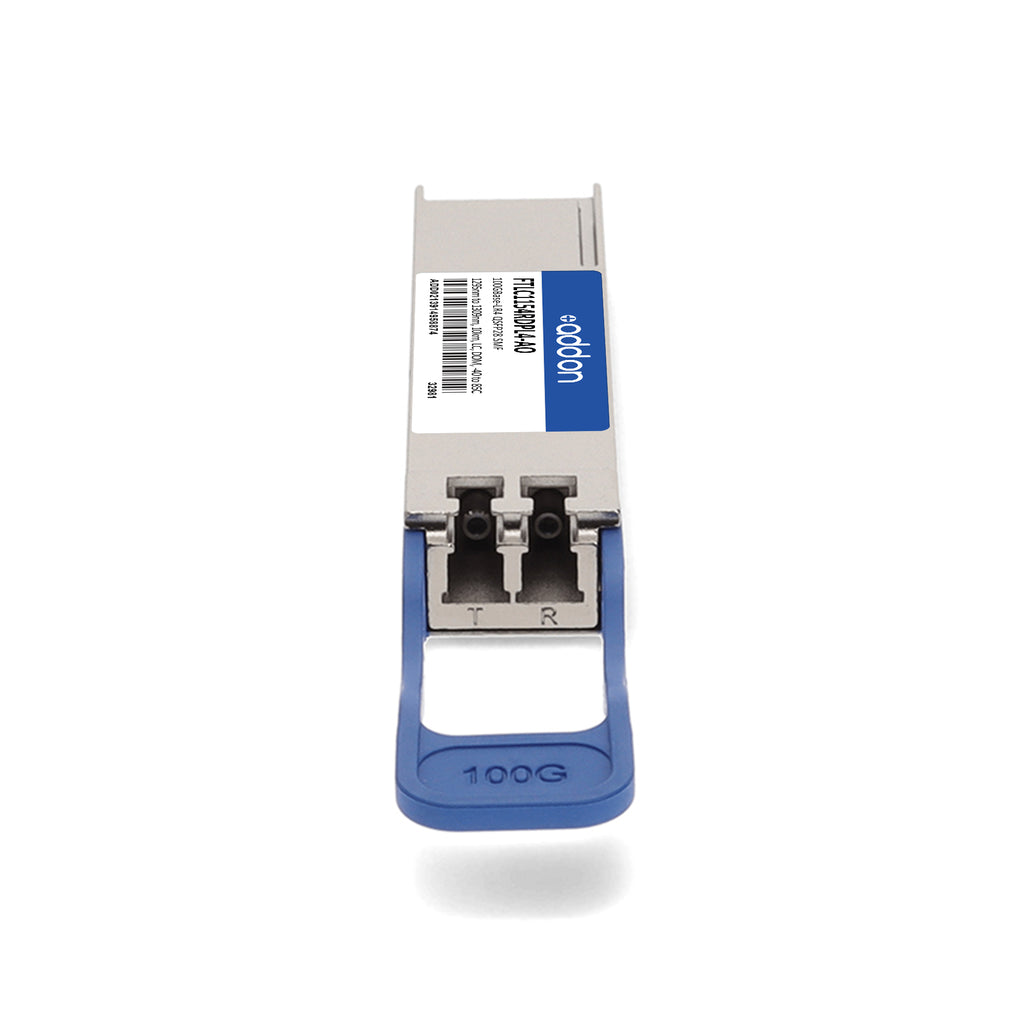

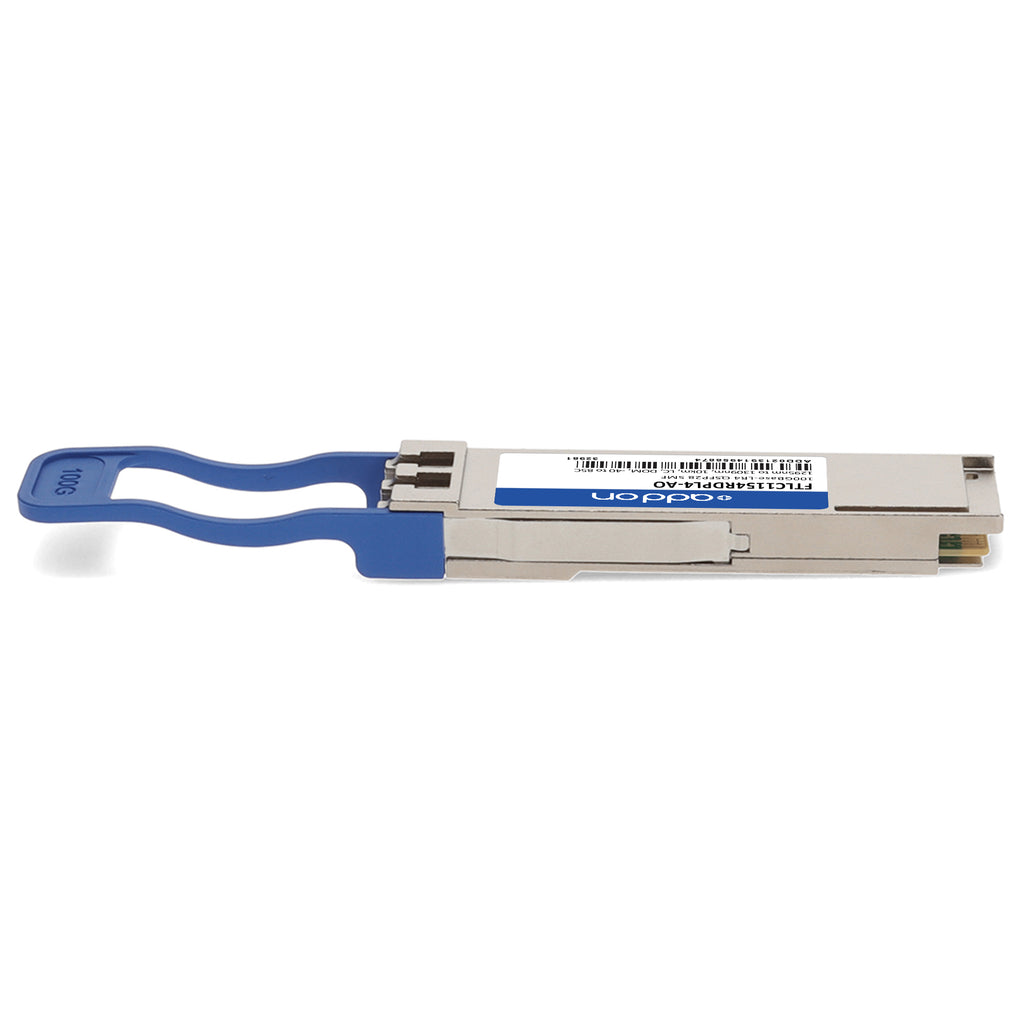

The AddOn Finisar® FTLC1154RDPL4-AO is a 100GBase-LR4 QSFP28 optical transceiver designed for high-speed data center, enterprise, and carrier-grade network applications. It delivers 100 Gbps Ethernet throughput up to 10 km over single-mode fiber (SMF) using a wavelength range of 1295 nm to 1309 nm via a duplex LC connector. This hot-pluggable, industrial-grade transceiver supports operating temperatures from -40 °C to 85 °C, ensuring reliable performance in harsh environments.
Each unit is programmed, uniquely serialized, and rigorously tested for data traffic and application compatibility to guarantee seamless integration and identical performance to the original Finisar® module. With built-in Digital Optical Monitoring (DOM), network administrators gain real-time visibility into key operating parameters. The transceiver is TAA compliant, RoHS lead-free, and meets MSA standards, making it ideal for demanding 100 GbE deployments.
| Specification | Details |
|---|---|
| SKU | FTLC1154RDPL4-AO |
| Compatible OEM | Finisar® |
| Form Factor | QSFP28 |
| Data Rate | 100 Gbps |
| Wavelength | 1295 nm – 1309 nm |
| Reach | Up to 10 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Operating Temperature | -40 °C to 85 °C |
| Compliance | SFF-8665, TAA, RoHS |
| DOM Support | Yes |
| Hot-Pluggable | Yes |
| Power Dissipation | 4.0 W |
| Supply Voltage | 3.135 V – 3.465 V |
| Transmitter OMA (per lane) | -1.3 dBm to 4.5 dBm |
| Receiver Sensitivity (OMA per lane) | -8.6 dBm |
| Average Launch Power (per lane) | -4.3 dBm to 4.5 dBm |
| Extinction Ratio | ≥ 4 dB |
| ESD Protection | MIL-STD-883E, IEC 61000-4-3 |
| EMI/EMC Compliance | FCC Part 15 Subpart B, EN55022:2010 |
| Laser Safety | FDA 21CFR, EN60950-1, IEC 60825-1/2 |
