Description

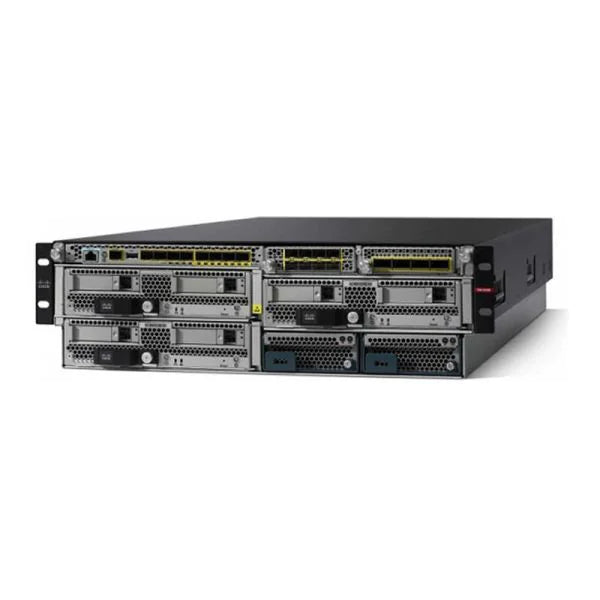

The Cisco Firepower FPR-CH-9300-AC is a carrier-grade next-generation firewall (NGFW) chassis engineered for large-scale data centers and high-performance security environments. Designed to deliver low latency, massive throughput, and scalable protection, the Firepower 9300 Series provides consistent security enforcement across physical, virtual, and cloud workloads.
This modular 3RU chassis supports multiple security and network modules, enabling flexible deployment options ranging from advanced threat defense to high-capacity intrusion prevention and firewall services. Integrated with Cisco Firepower services, the platform reduces operational complexity while supporting open, programmable network architectures.
Equipped with dual AC power supplies, hot-swappable fans, and high-availability redundancy, the FPR-CH-9300-AC is built for continuous operation in mission-critical environments. Its modular design allows organizations to scale interfaces, storage, and performance as security demands grow—making it an ideal foundation for modern enterprise and service-provider security architectures.
| Specification | Details |
|---|---|
| Product Number | FPR-CH-9300-AC |
| Product Type | Next-Generation Firewall Chassis |
| Form Factor | 3RU, standard 19-inch rack mount |
| Dimensions (H × W × D) | 5.25 × 17.5 × 32 in (13.3 × 44.5 × 81.3 cm) |
| Security Module Slots | 3 |
| Network Module Slots | 2 (within supervisor) |
| Supervisor | Firepower 9000 Supervisor with 8 × 10GbE ports |
| Supported Security Modules | SM-24, SM-36 (RAID-1 SSD configuration) |
| Supported Network Modules | 10GbE SFP+, 40GbE QSFP+, 100GbE QSFP28 |
| Maximum Interfaces | Up to 24 × 10GbE or 8 × 40GbE |
| Management Ports | 1 × Gigabit Ethernet |
| Console Port | 1 × RJ-45 |
| USB | 1 × USB 2.0 |
| Maximum Storage | Up to 2.4 TB per chassis |
| Power Supplies | Dual AC, 1+1 redundancy |
| Input Voltage | 200–240V AC |
| Maximum Output Power | 2500W |
| Power Efficiency | 92% at 50% load |
| Cooling | 4 hot-swappable fans |
| Noise Level | 75.5 dBA (max fan speed) |
| Rack Mounting | Rails included (4-post rack) |
| Weight | 105 lb (one module), 135 lb (fully configured) |
| Operating Temperature | 32–104°F (0–40°C) depending on module |
| Operating Humidity | 5–95% non-condensing |
| Operating Altitude | Up to 13,000 ft (module dependent) |
| Compliance | ISO 9001, ISO 14001, RoHS, REACH, CE, FCC |
