Description

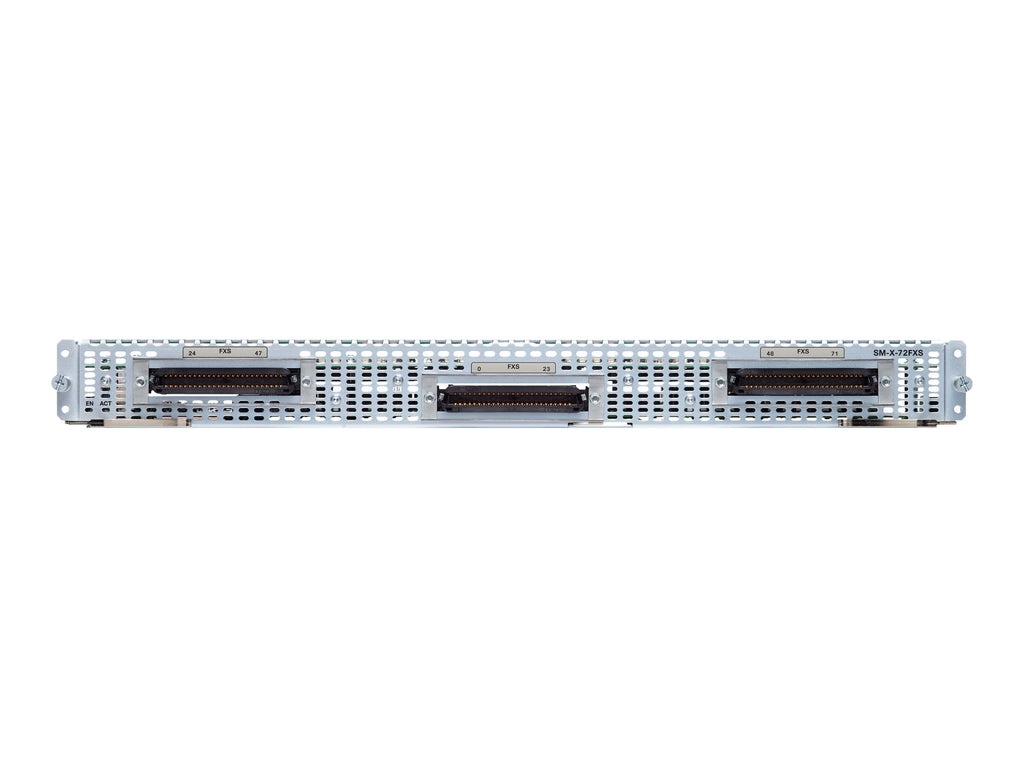

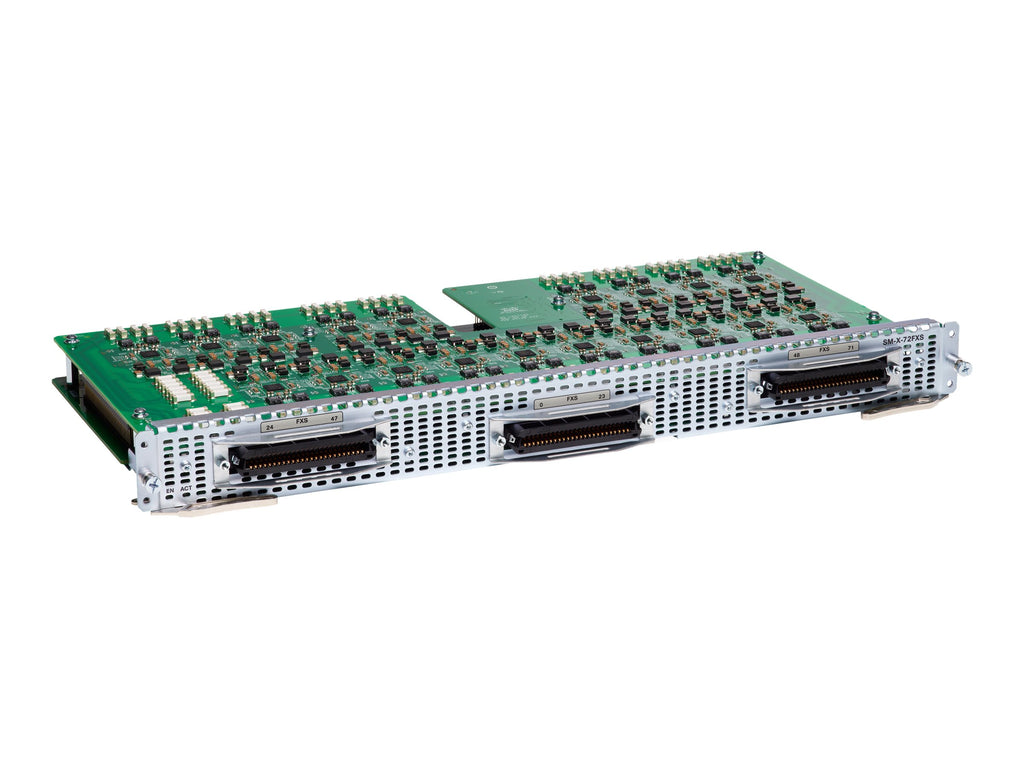

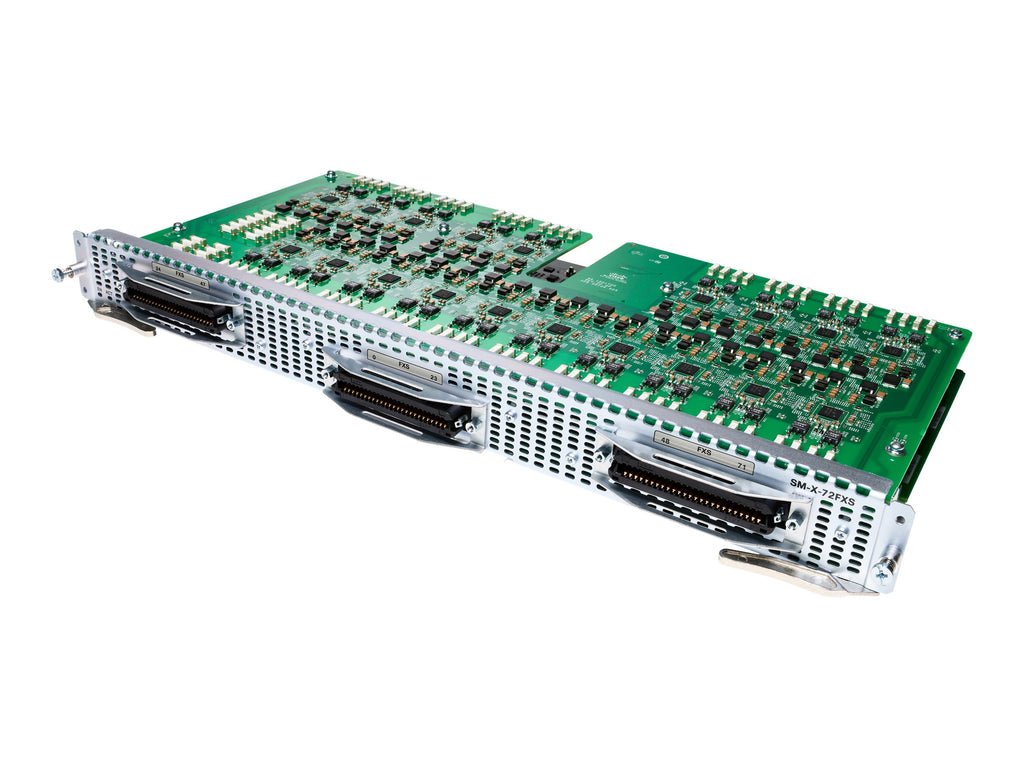

The Cisco SM-X-72FXS is a double-wide, high-density analog voice service module designed for Cisco 4000 Series Integrated Services Routers. It delivers 72 FXS ports in a single module, enabling large-scale connectivity for analog phones, fax machines, modems, and legacy voice devices within modern IP telephony environments.
Built with an onboard DSP, the SM-X-72FXS supports advanced voice features such as echo cancellation, voice compression, fax relay, modem pass-through, and DTMF detection—without requiring additional DSP hardware on the router. Extended loop support (FXS-E) allows for longer cable runs and higher loop current, making it ideal for enterprise campuses, hospitality, healthcare, and service-provider deployments.
With support for major call-control protocols and seamless integration with Cisco Unified Communications platforms, the SM-X-72FXS provides a scalable, reliable solution for migrating or expanding analog voice infrastructure while maintaining centralized management and IP-based control.
| Specification | Details |
|---|---|
| Product SKU | SM-X-72FXS= |
| Module Type | High-Density Analog Voice Service Module |
| Form Factor | Double-wide SM-X module |
| FXS Ports | 72 |
| FXO Ports | None |
| FXS-E Support | Yes (configurable extended loop modes) |
| Supported Devices | Analog phones, fax machines, modems, speaker phones |
| Voice Features | Echo cancellation, VAD, DTMF detection, comfort noise |
| Codec Support | G.711, G.729a, G.726, G.722, iLBC, GSM-AMR, iSAC |
| Fax Support | T.38 fax relay, fax pass-through |
| Signaling Protocols | SIP, H.323, MGCP, SCCP |
| Interface Type | RJ-21 |
| Power Source | Router backplane |
| Compatible Platforms | Cisco 4000 Series Integrated Services Routers |
| Typical Use Cases | Enterprise voice gateways, analog extension density, legacy telephony integration |
