Description

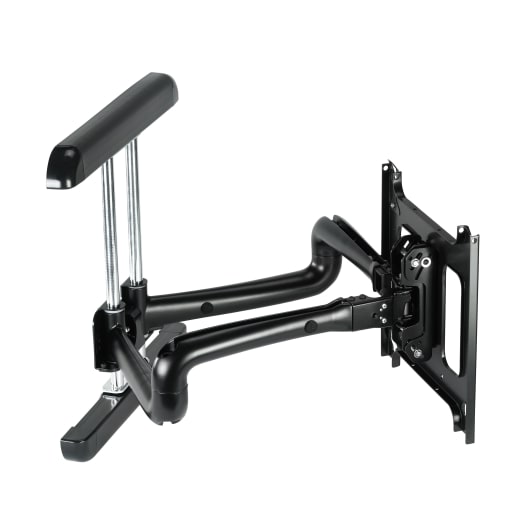

The Chief PDR2000B is a large flat panel swing arm wall mount designed to deliver precise display positioning and exceptional viewing flexibility. Featuring a long 37-inch extension, this mount allows displays to extend outward for optimal viewing angles while maintaining a low-profile position when retracted.
Centris™ Technology enables smooth fingertip tilt adjustment, making it easy to fine-tune the display angle even after installation. The Q-Latch Mounting System securely locks the display in place while allowing for fast, confident installation. Built-in CableTrac™ channels route cables neatly through the arms, ensuring a clean, professional appearance.
The PDR2000B supports both landscape and portrait orientations and accommodates a wide range of large-format displays. This model is UL listed and remains available, with custom PDR2XXX variants discontinued as of June 1, 2014. Interface brackets are sold separately, allowing flexibility for custom or universal mounting solutions.
| Specification | Details |
|---|---|
| Mount Type | Swing Arm Wall Mount |
| Extension Range | Up to 37 in (93.98 cm) |
| Typical Screen Size | 42" – 86" (1067 – 2184 mm) |
| Weight Capacity | Supports displays up to 200 lbs (90.7 kg) |
| Tilt Range | +5° to -16° |
| Swivel | Supports wide-angle articulation |
| Height Adjustment | Up to 1 in (25 mm) post-installation |
| Orientation Support | Landscape and Portrait |
| Wall Stud Compatibility | 16 in (406 mm) |
| VESA Mounting Pattern | 200 x 200 mm to 862 x 517 mm |
| Overall Dimensions (W × H × D) | 39.5 × 22.0 × 3.4 in (1003 × 560 × 86 mm) |
| Depth (without interface) | 3.4 in (8.64 cm) |
| Color | Black |
| Cable Management | Integrated CableTrac™ internal routing |
| Mounting Security | Q-Latch locking system |
| Post-Installation Leveling | Yes |
| Application | Wall-mounted |
| Compliance | UL Listed |
| TAA Compliance | Not compliant |
| Shipping Weight | 63 lbs (28.58 kg) |
| UPC | 841872045368 |
