Description

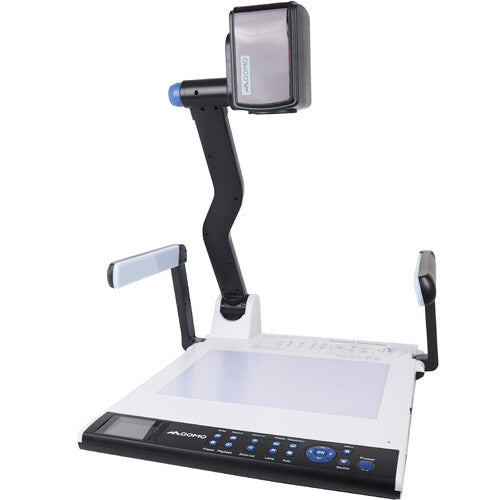

The QOMO QD5000 4K UHD Visualizer is a high-definition document camera designed for educators, presenters, and professionals who need exceptional clarity and versatility. Featuring 10x optical zoom and 10x digital zoom, it delivers crystal-clear visuals up to 4K resolution (3840 × 2160 @ 30 fps). Its integrated LED arm and bottom lighting ensure optimal illumination for both flat documents and 3D objects.
The QD5000 offers extensive connectivity options including HDMI, VGA, USB, RS-232, and RJ-45 ports, allowing seamless integration with projectors, displays, and computers. Users can capture images, record videos, and annotate directly using mouse control or the included remote. Its auto and manual focus modes, built-in microphone, and SD card support (up to 64 GB) make it a complete, ready-to-use visual presentation system.
Compact and foldable for easy transport, the QD5000 is ideal for classrooms, boardrooms, and training environments requiring reliable performance, high-quality imaging, and plug-and-play simplicity.
| Feature | Specification |
|---|---|
| Camera Resolution | 8.3 MP UHD CMOS Sensor |
| Video Output Resolution | 720p (1280×720), 1080p (1920×1080), 2160p (3840×2160 @ 30 fps) |
| Optical Zoom | 10× Optical |
| Digital Zoom | 10× Digital |
| Frame Rate | Up to 30 fps at 4K |
| Shooting Area | A4 size |
| Camera Rotation | 330° Vertical Rotation |
| Image Rotation | 0°, 90°, 180°, 270° |
| Focus Modes | Auto / Manual |
| Lighting | Arm Lamp (1.5 W × 2 LED), Bottom Lamp (2.5 W LED) |
| Microphone | Built-in |
| Storage Options | SD Card Slot (up to 64 GB), USB Memory Slot |

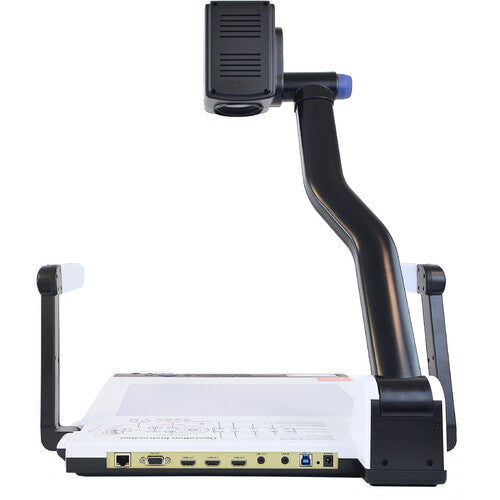

| Connections (Input) | HDMI 1.4b × 2, VGA × 1, RS-232 (DB9 & PS/2), Line-In × 1, RJ45 × 1 |
| Connections (Output) | HDMI 1.4b × 1 (4K @ 30 fps), VGA × 1 (1080p @ 60 fps), USB 3.0 Type B (UVC), Line-Out × 1 |
| Software Compatibility | QCamera (App), Zoom, Microsoft Teams, Google Meet |
| Features | Freeze Image, Annotation, Mirror, Negative/Positive Mode, Split Screen, Black/White Mode |
| Ethernet Support | Yes |
| Mouse Control | Yes |
| Remote Controller | Included |
| Power Requirement | DC 12 V / 2 A (External AC Adapter) |
| Dimensions (Folded) | 510 × 410 × 120 mm |
| Dimensions (Setup) | 510 × 530 × 570 mm |
| Weight | Approx. TBD (Kg not listed) |
| On-Board Memory | Yes |

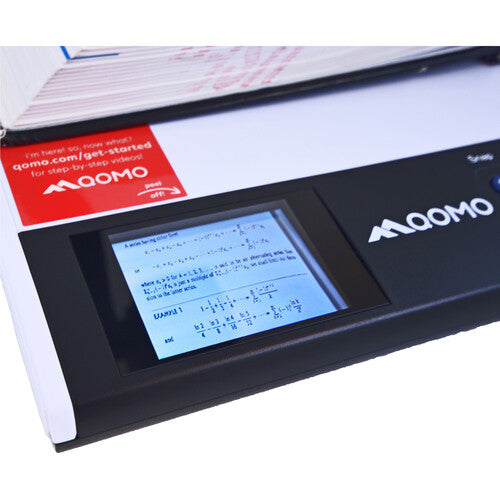

| Preview Display | Built-in LCD Preview Screen |
| Warranty | Limited Manufacturer Warranty |
