Description

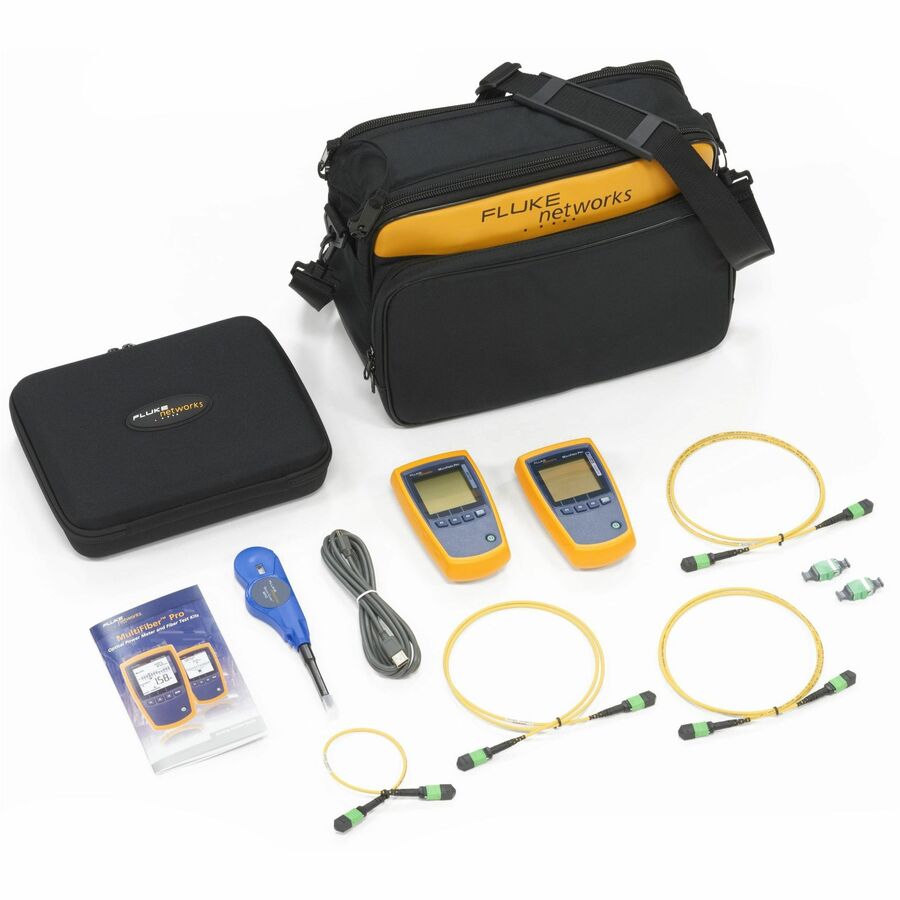

The Fluke Networks MFTK-SM1550 MultiFiber Pro Singlemode MPO Kit delivers fast, accurate, and hassle-free MPO fiber trunk testing. Engineered for data center professionals, it automates scanning and testing of all 12 fibers in MPO connectors in just six seconds using the innovative “Scan All” function—eliminating the need for fan-out cords.
With built-in polarity verification, Encircled Flux compliance, and compatibility with standard 8, 10, and 12 fiber links, the MFTK-SM1550 reduces complexity and test time by up to 90% compared to traditional methods. Its on-board shuttered MPO connector ensures protection against dust and contamination, while the included APC adapters and multiple test cord configurations enhance flexibility in the field.
Whether deploying high-speed 10G, 40G, or 100G Ethernet networks, this kit ensures standards-compliant certification, precise polarity verification, and easy reporting with LinkWare™ software—making it an essential tool for data center MPO validation and troubleshooting.
| Feature | Specification |
|---|---|
| Fiber Type | Singlemode |
| Wavelength | 1550 nm |
| Measurement Range | 0 dBm to -50 dBm |
| Detector Type | InGaAs |
| Calibrated Wavelengths | 850, 1300, 1310, 1550 nm |
| Test Time | 6 seconds |
| Polarity Detection | A, B, C, and Corning Plug & Play™ Universal Systems |
| Auto Wavelength Detection | Yes |
| Record Storage | 3,000 results |
| Interfaces | USB 2.0 |
| Optical Connector | MPO (12-fiber, unpinned plugs) |
| Power Requirement | 2 × AA alkaline batteries |
| Battery Life | 30 hours typical |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +50°C |
| Operating Humidity | 95% (10°C to 35°C), 75% (35°C to 45°C) |
| Size (H × W × D) | 5.8 in × 3.2 in × 1.6 in (14.7 cm × 8.0 cm × 4.0 cm) |
| Weight | 309 g (Power Meter), 323 g (Light Source) |
