Description

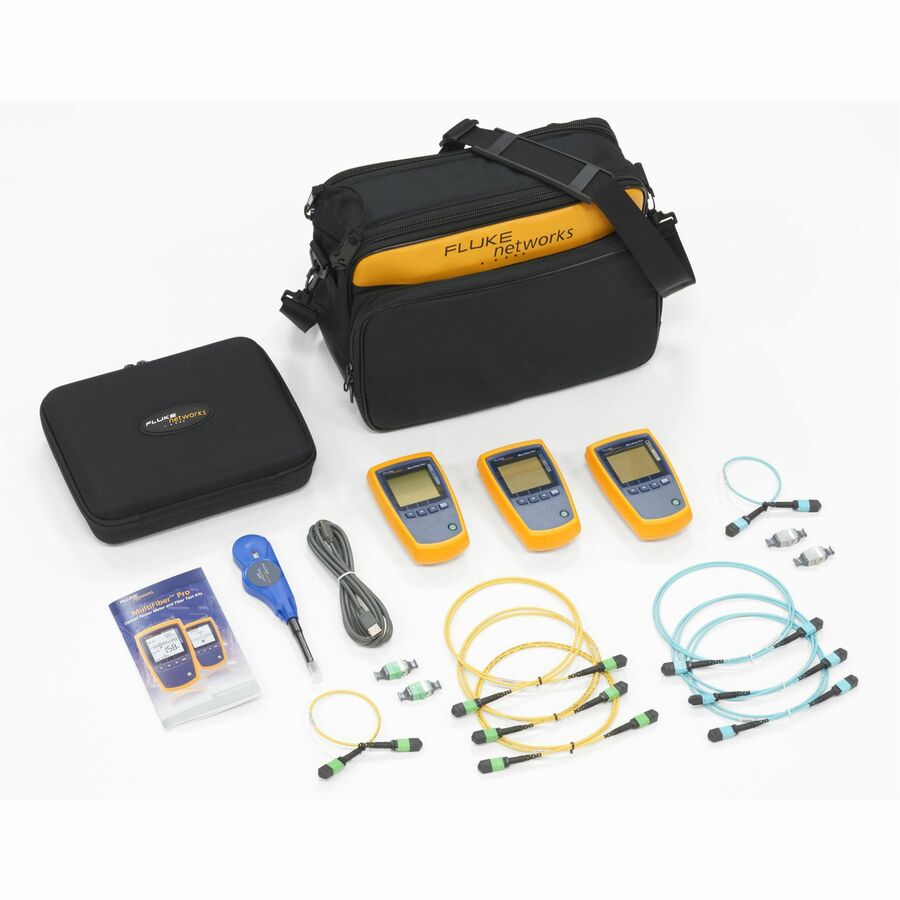

The Fluke Networks MFTK-MM850-SM1310 MultiFiber Pro MPO Test Kit delivers unmatched efficiency in testing both 850nm multimode and 1310nm singlemode MPO trunk cables. Designed for high-speed data centers and enterprise networks, it automates testing of all fibers in an MPO connector with the “Scan All” function, eliminating the need for costly fan-out cords.
With automatic detection and analysis of standard 8, 10, and 12-fiber links, Encircled Flux compliance, and polarity-agnostic referencing, the MFTK-MM850-SM1310 drastically reduces test times—cutting weeks of work down to days. The kit’s on-board MPO connector and shuttered design protect against contamination while ensuring fast, accurate measurements.
Whether deploying 10Gbps pre-terminated MPO fiber trunks or preparing for 40/100Gbps Ethernet, this test kit simplifies verification, troubleshooting, and reporting. Its integration with LinkWare™ software enables easy data management, professional reporting, and enhanced project efficiency.
| Feature | Specification |
|---|---|
| Fiber Type | Multimode (850nm), Singlemode (1310nm) |
| Wavelengths | 850nm LED, 1310nm Laser |
| Functions | Loss measurement, power measurement, polarity verification |
| Scan All Function | Tests all 12 fibers in MPO connector in 6 seconds |
| Detector Type | InGaAs |
| Measurement Range | 0 dBm to -50 dBm |
| Accuracy | ±0.35 dB |
| Display Resolution | 0.01 dB |
| Polarity Detection | Supports A, B, C, and Corning Plug & Play™ polarities |
| Memory | 3,000 records (one fiber per record) |
| Interface | USB 2.0 |
| Connectors | MPO interface (unpinned) with self-closing protective cover |
| Power Supply | 2× AA alkaline batteries |
| Battery Life | Up to 30 hours |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +50°C |
| Size | 5.8 in × 3.2 in × 1.6 in (14.7 cm × 8.0 cm × 4.0 cm) |
| Weight | 309 g (Power Meter), 323 g (Light Source) |
