Description
The Fluke Networks MFTK-MM850-SM1550 MultiFiber Pro Multimode & Singlemode MPO Fiber Test Kit delivers the industry’s fastest and most efficient MPO fiber trunk testing for both 850 nm multimode and 1550 nm singlemode links. Featuring the innovative “Scan All” function, it automatically tests all 12 fibers in an MPO connector in just six seconds—eliminating the need for fan-out cords.
Built for modern data centers and high-speed network environments, this kit simplifies polarity verification, ensures Encircled Flux compliance, and provides easy-to-interpret results with advanced troubleshooting capabilities down to the single-fiber level. The on-board MPO connector and polarity-agnostic referencing streamline testing, reduce errors, and cut test times by up to 90% compared to traditional simplex methods.
With robust build quality, USB connectivity, and LinkWare™ software compatibility for professional reporting, the MFTK-MM850-SM1550 is the go-to solution for technicians handling 10 Gbps, 40 Gbps, and 100 Gbps Ethernet fiber deployments.
| Feature | Details |
|---|---|
| Fiber Type | Multimode (850 nm) and Singlemode (1550 nm) |
| Connector Interface | MPO (unpinned) |
| Test Time | 6 seconds for 12 fibers |
| Wavelengths | 850 nm LED, 1550 nm Laser |
| Measurement Range | 0 dBm to -50 dBm |
| Accuracy | ±0.35 dB |
| Polarity Detection | A, B, C, Corning Plug & Play™ |
| Record Storage | 3,000 results (250 x 12-fiber cables) |
| Display Resolution | 0.01 dB |
| Power Source | 2 × AA alkaline batteries |
| Battery Life | ~30 hours typical |
| Dimensions | 5.8" × 3.2" × 1.6" (14.7 cm × 8.0 cm × 4.0 cm) |
| Weight | 309–323 g (depending on unit) |
| Operating Temperature | -10°C to +50°C |
| Humidity | 95% (10°C–35°C), 75% (35°C–45°C) non-condensing |
| Interface | USB 2.0 |

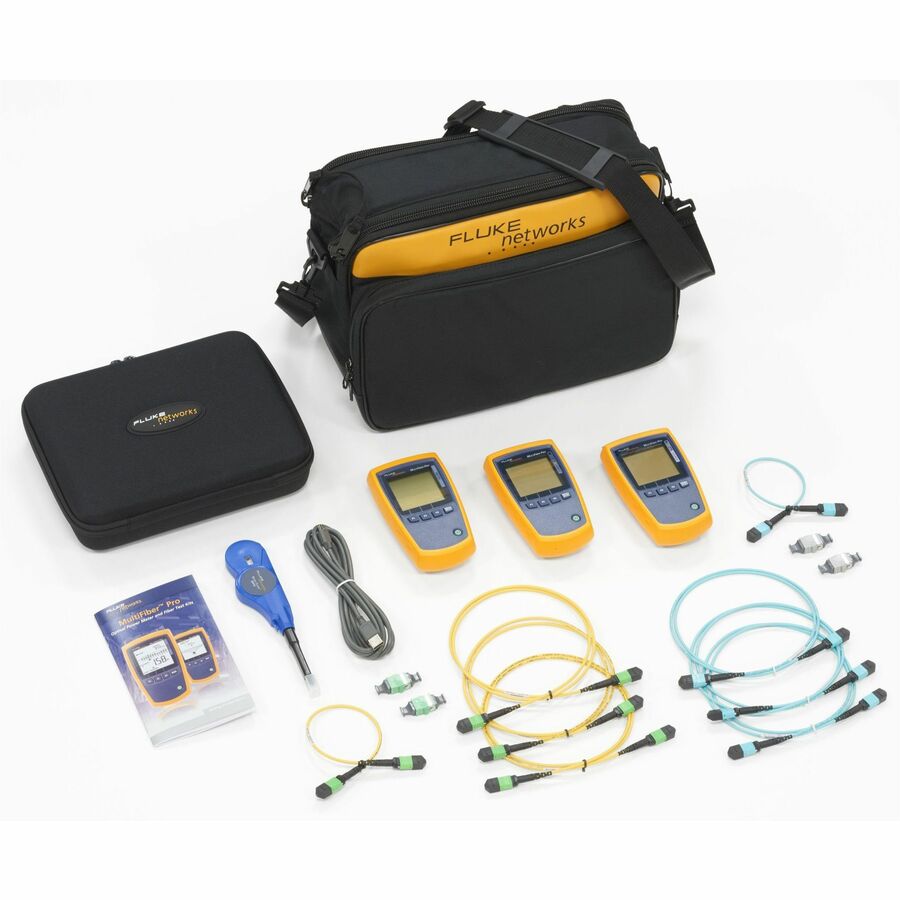

| Kit Includes | MultiFiber Pro Power Meter, 850 nm LED source, 1550 nm laser source, multimode & singlemode test cords (various configurations), MPO adapters, APC MPO adapters, magnetic strap attachments, carrying case, manuals, and cleaning tools |
