Description

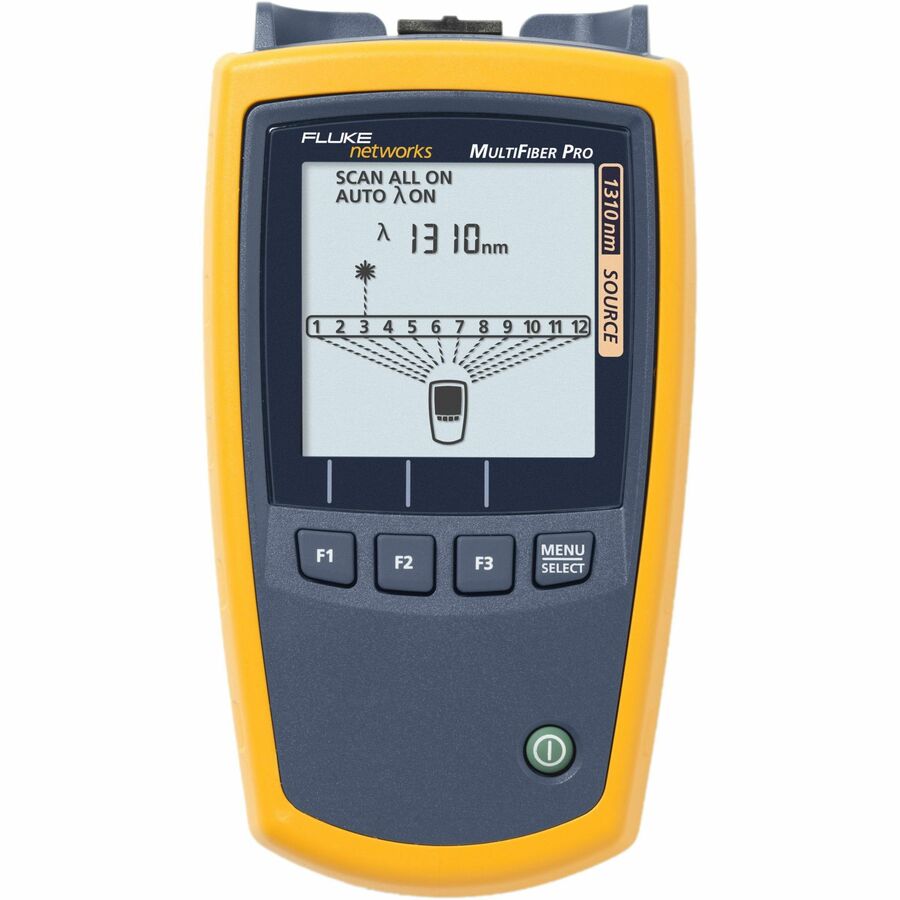

The Fluke Networks MF1310SOURCE MultiFiber Pro Singlemode MPO Laser Light Source is designed for fast, accurate testing and certification of MPO fiber trunks without the need for fan-out cords. Featuring a powerful 1310nm laser, it supports both singlemode and multimode MPO trunks and automates testing for 8, 10, and 12 fibers. With its “Scan All” function, built-in polarity verification, and on-board MPO connector, it reduces test times by up to 90% compared to single-fiber certification. Ideal for data centers preparing for 40/100 Gbps Ethernet, this tool delivers easy-to-read results, minimal navigation, and efficient troubleshooting down to individual fibers.
Key Features:
-
1310nm laser light source with MPO connector
-
“Scan All” function for simultaneous fiber testing
-
Built-in polarity verification
-
Simple user interface with individual fiber selection
-
Easy reporting and data management via USB
-
Durable, compact design for field use
| Specification | Details |
|---|---|
| Wavelength | 1310 nm ±20 nm |
| Emitter Type | Laser |
| Spectral Width (FWHM) | 2 nm typical, 5 nm maximum |
| Minimum Output Power | ≥ -1 dBm |
| Power Output Stability | ±0.25 dB over 8 hours |
| Laser Safety | IEC 60825-1: Class 1 |
| Connector Type | MPO/MTP, 12-fiber, unpinned plugs, APC only |
| Compatible Fiber Types | 9 µm singlemode |
| Modes | 2 kHz modulated, auto wavelength |
| Interface | USB 2.0 |
| Power Source | 2 × AA alkaline batteries |
| Battery Life | >30 hours typical |
| Automatic Power-Off | 10, 20, 30, or 60 min (user selectable) |
| Dimensions | 5.8 in × 3.2 in × 1.6 in (14.7 cm × 8.0 cm × 4.0 cm) |
| Weight | 11.4 oz (323 g) |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +50°C |
| Operating Humidity | 95% (10°C to +35°C) non-condensing |
| Operating Altitude | Up to 4,000 m |
| Storage Altitude | Up to 12,000 m |
