Description

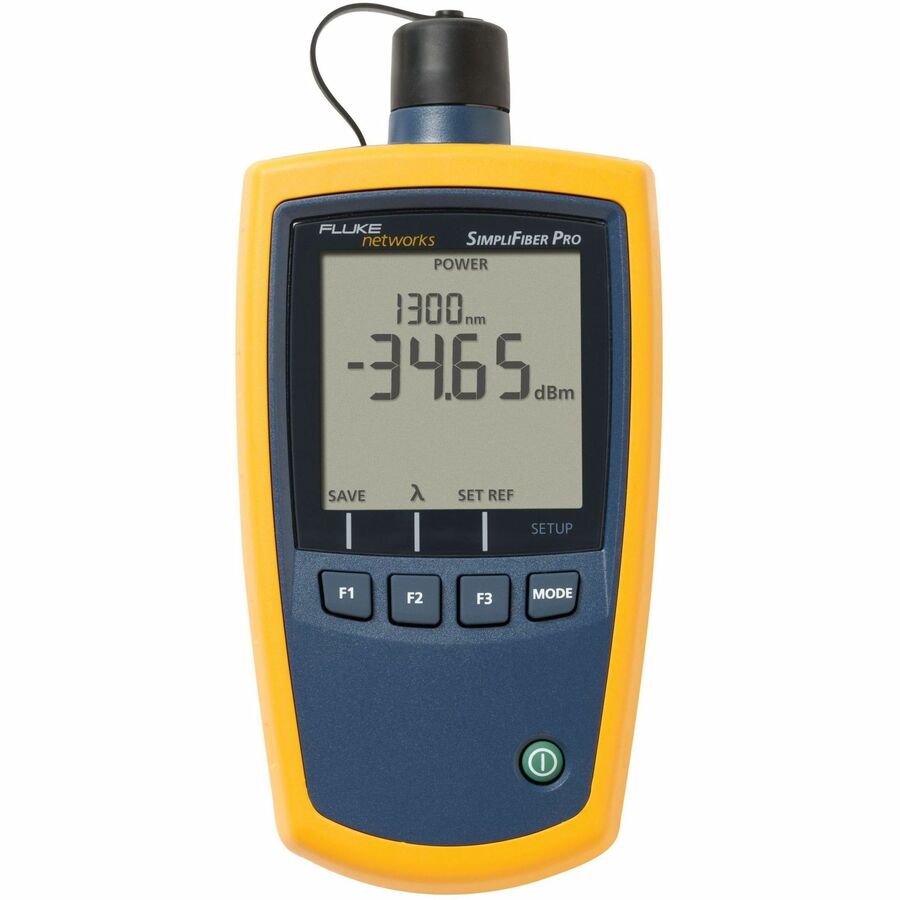

The Fluke Networks SFPOWERMETER SimpliFiber® Pro Optical Power Meter is a versatile and highly accurate fiber testing solution designed to simplify and accelerate front-line fiber-optic testing. With its simultaneous dual-wavelength testing, technicians can complete tests in half the time while storing measurements from multiple wavelengths in one record.
This power meter is calibrated for six wavelengths (850, 1300, 1310, 1490, 1550, and 1625 nm) to meet a broad range of applications, including FTTx deployment, enterprise network verification, and fiber troubleshooting. Features such as CheckActive™ live fiber detection, FindFiber™ Remote ID for cable routing identification, and automatic wavelength detection reduce errors and increase efficiency.
Designed for rugged field use, the SimpliFiber Pro includes a large LCD display, intuitive controls, interchangeable connector adapters, and USB connectivity for fast data transfer. With the ability to store up to 1000 test results and generate professional reports via LinkWare™ Cable Test Management Software, it’s an ideal choice for installers, contractors, and network maintenance teams.
| Feature | Specification |
|---|---|
| Detector Type | InGaAs |
| Calibrated Wavelengths | 850, 1300, 1310, 1490, 1550, 1625 nm |
| Measurement Range | +10 to -52 dBm (850 nm) / +10 to -60 dBm (1300–1625 nm) |
| Linearity | ±0.2 dB (850 nm), ±0.1 dB (other wavelengths) |
| Uncertainty | ±0.25 dB |
| Resolution | 0.01 dB |
| Auto Dual-Wavelength | Yes |
| Auto-Wavelength Detection | Yes |
| Display Units | dBm, mW, µW |
| Data Storage | 1000 records |
| External Interface | USB 2.0 |
| Optical Connector | Removable SC (LC, ST optional) |
| Power | 2 × AA alkaline batteries |
| Battery Life | > 50 hours (typical) |
| Dimensions | 6.4 × 3.2 × 1.5 in (16.5 × 8.0 × 3.9 cm) |
| Weight | 11.5 oz (325 g) |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 50°C |
| Operating Humidity | 95% (10°C–35°C), 75% (35°C–40°C) |
