Description

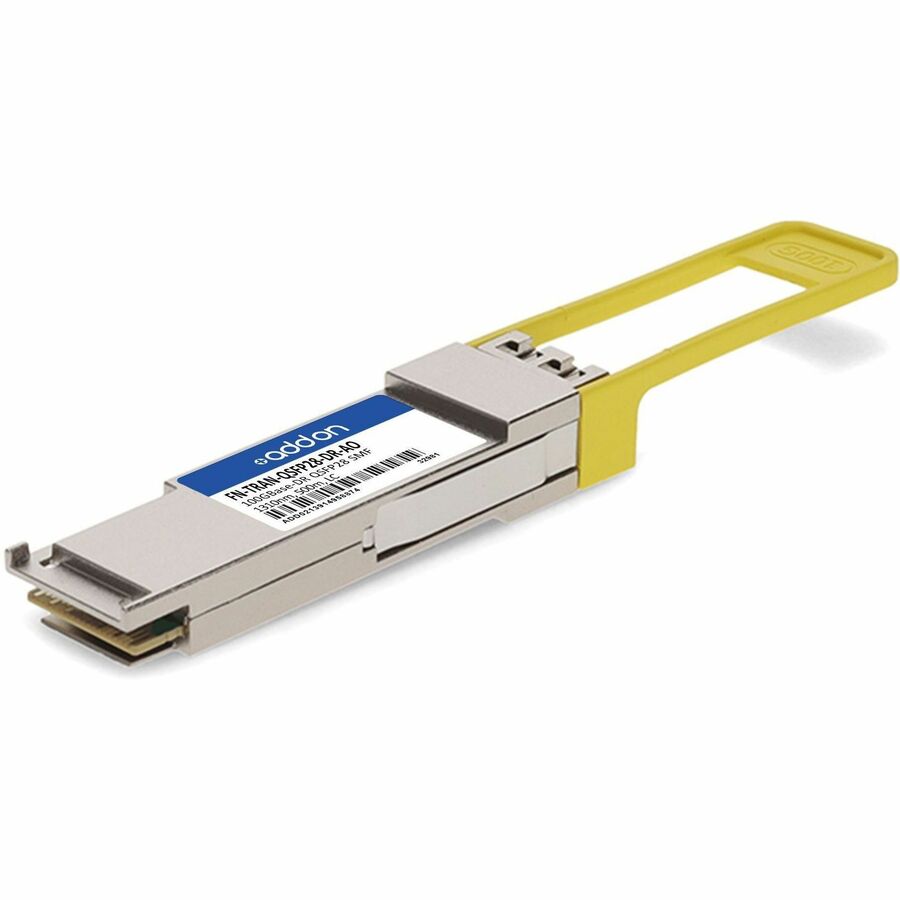

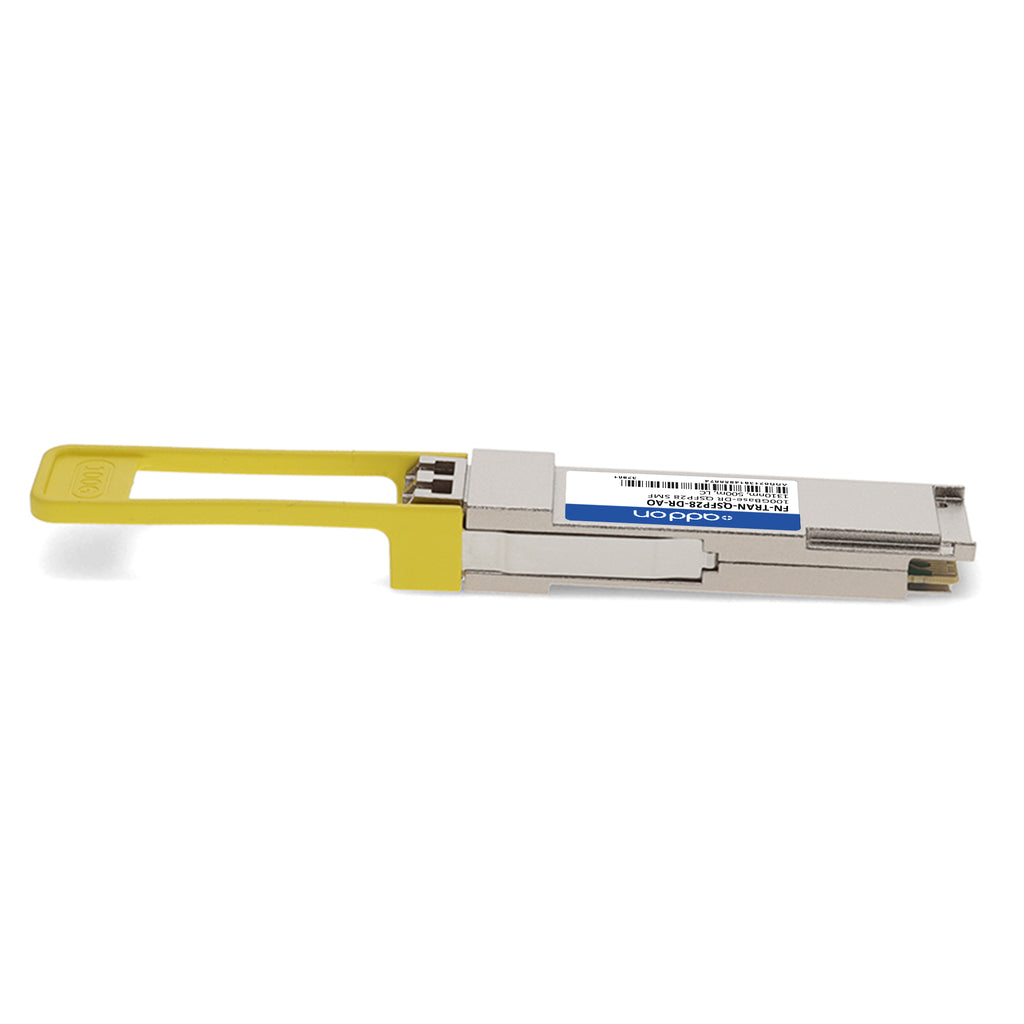

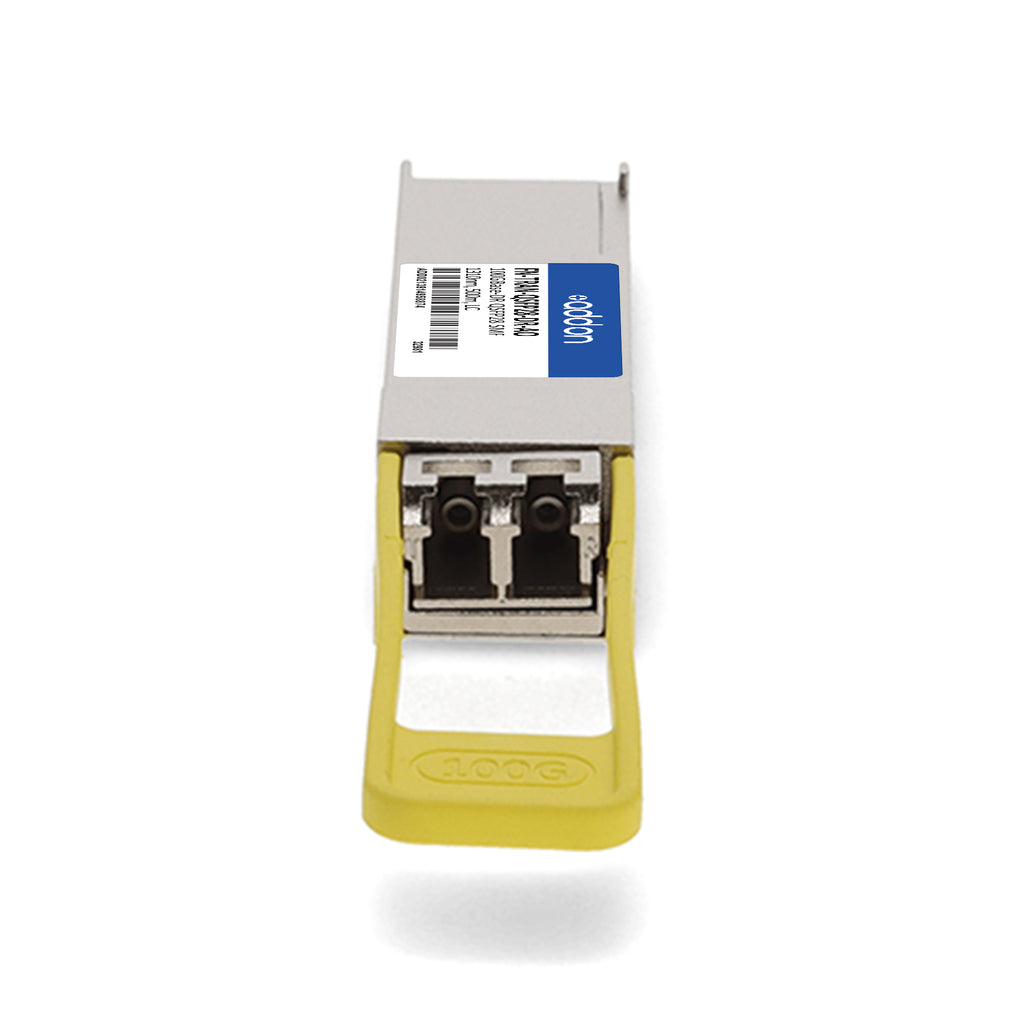

This AddOn Fortinet® FN-TRAN-QSFP28-DR compatible QSFP28 transceiver delivers reliable 100GBase-DR Ethernet throughput over single-mode fiber (SMF) with a maximum reach of up to 500 meters using a 1310nm wavelength and an LC duplex connector. Designed for high-performance data center, enterprise, and access network environments, this single lambda module is fully compliant with SFF-8665 standards and supports Digital Optical Monitoring (DOM) for real-time diagnostics.
Each unit is hot-swappable and rigorously programmed, uniquely serialized, and tested for data-traffic and application performance to ensure seamless interoperability and identical functionality to the OEM part. Featuring built-in Forward Error Correction (FEC) support and Trade Agreements Act (TAA) compliance, this transceiver meets stringent quality and performance standards. AddOn backs this product with a limited lifetime warranty, ensuring reliable, long-term operation for your network infrastructure.
| Specification | Details |
|---|---|
| SKU | FN-TRAN-QSFP28-DR-AO |
| Form Factor | QSFP28 |
| Data Rate (per lane) | 25.78125 Gb/s (NRZ) |
| Total Data Rate (PAM4) | 100 Gb/s (53.125 GBd) |
| Wavelength | 1310 nm |
| Reach / Distance | Up to 500 m over SMF |
| Connector Type | Duplex LC |
| Fiber Type | Single-Mode Fiber (SMF) |
| Optical Modulation | PAM4 |
| Extinction Ratio | ≥ 3.5 dB |
| Average Launch Power | -2.9 dBm to +4 dBm |
| OMA (Outer Optical Modulation Amplitude) | -0.8 dBm to +4.2 dBm |
| Receiver Sensitivity (OMAouter) | As per IEEE 802.3-2018 Eq. (1) |
| Receiver Stressed Sensitivity | -1.9 dBm |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Power Supply Voltage | 3.135 V – 3.465 V |
| Power Consumption | ≤ 4.5 W |
| FEC Support | Required for maximum distance |
| Digital Diagnostic Monitoring (DOM) | Supported |
| Hot-Swappable | Yes |
| Compliance Standards | SFF-8665, RoHS, FCC Part 15, EN55022, IEC 60825-1/2 |
| Applications | 100G Ethernet, Access, Enterprise Networks |
| Warranty | Limited Lifetime Warranty |
