Description

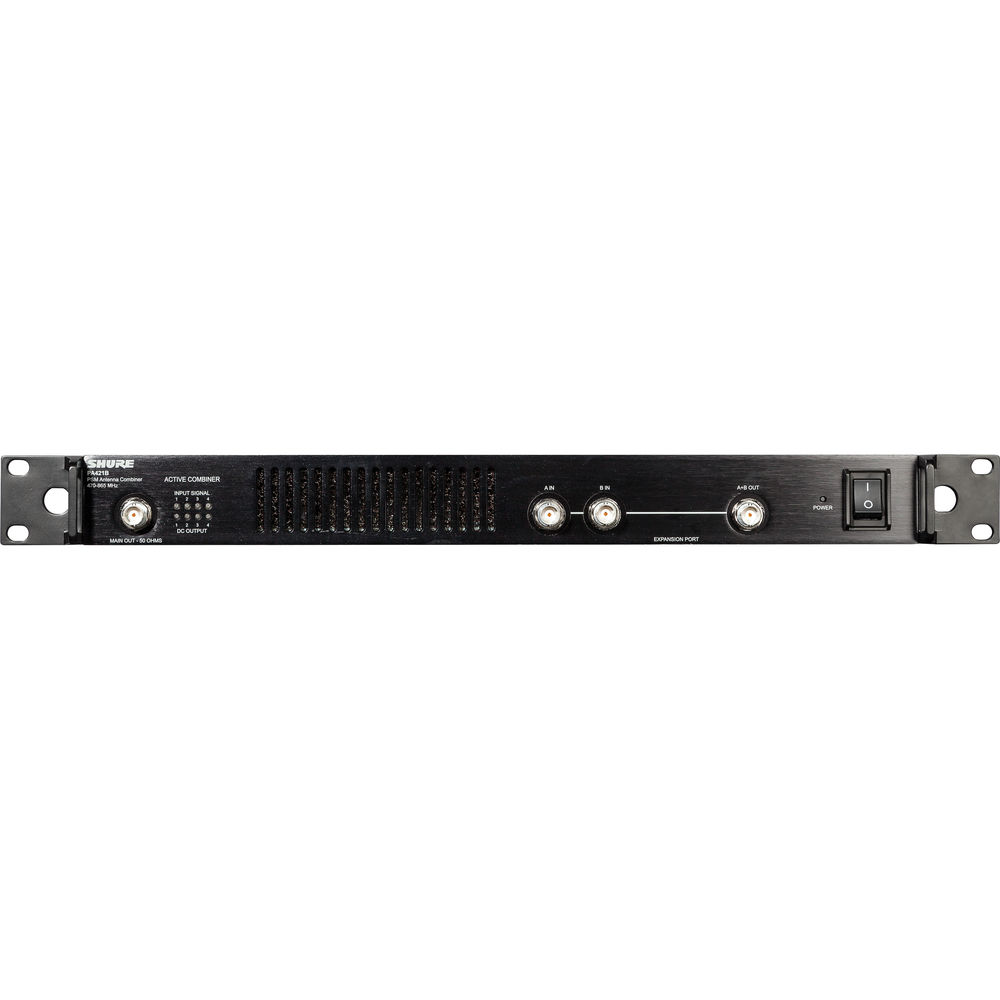

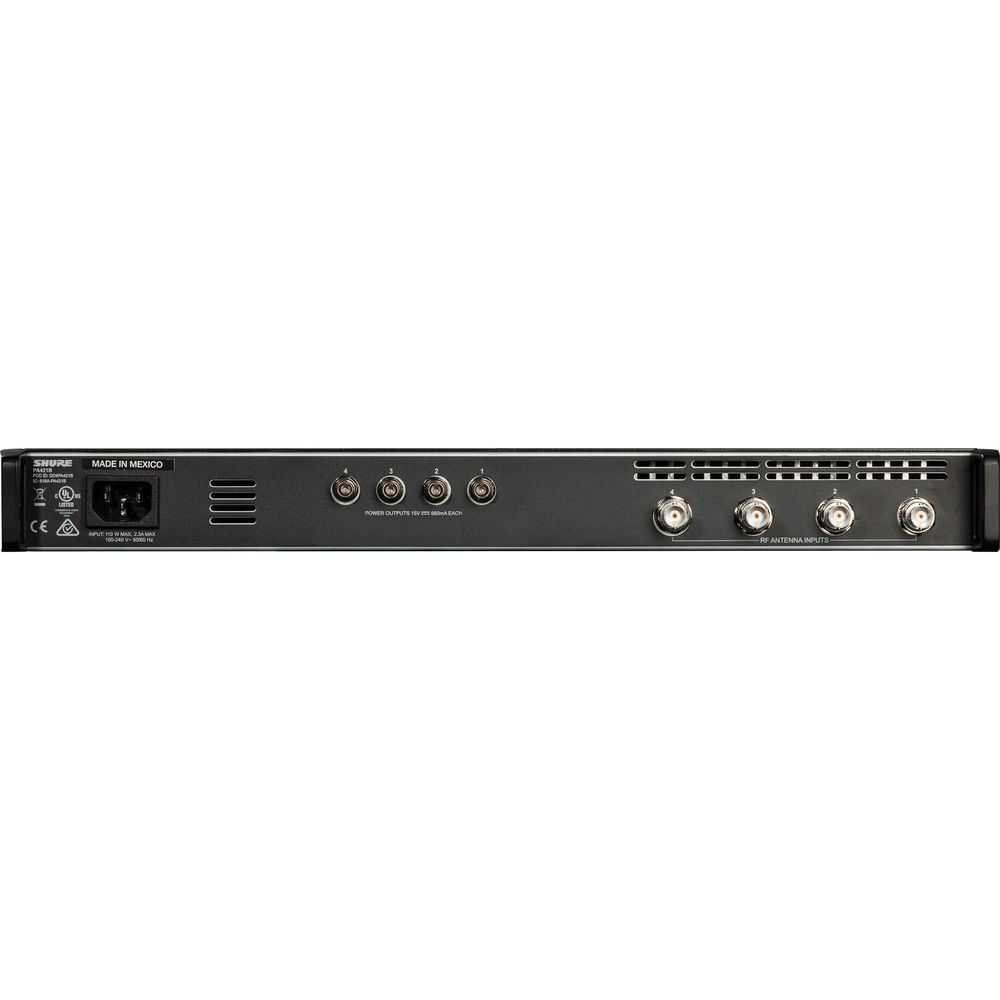

The Shure PA421B Antenna Combiner is a professional-grade RF management solution designed to streamline wireless in-ear monitoring systems. Engineered for use with Shure PSM personal monitor systems, it efficiently combines up to four transmitters into a single antenna, reducing rack clutter while optimizing RF performance.
Ideal for live sound, broadcast, and installed AV environments, the PA421B minimizes intermodulation distortion to maintain a clean and stable RF signal. Its wideband operation across 470–865 MHz ensures compatibility with a wide range of wireless setups. Integrated DC power distribution eliminates the need for separate power supplies, while LED indicators provide real-time monitoring of signal presence, overload conditions, and current draw.
With its improved thermal design and quiet operation, the PA421B is built for reliability in demanding environments, making it an essential component for scalable and professional wireless monitoring systems.
| Specification | Details |
|---|---|
| Product Type | Four-Channel Antenna Combiner |
| Frequency Range | 470 to 865 MHz |
| RF Input Connectors | BNC |
| RF Output Connector | BNC |
| Impedance | 50 Ohms |
| RF Gain | 0 dB (±2 dB) |
| RF Configuration | Active |
| Expansion Port | BNC, passive configuration |
| Expansion Port Insertion Loss | Less than 4 dB |
| RF Expansion Port Operating Range | Up to 33 dBm (2 W) |
| DC Output Voltage | 15 V DC |
| DC Output Current (Per Output) | Up to 660 mA |
| DC Output Power (Per Output) | 9.9 W |
| LED Indicators | Signal presence, overload, and current draw |
| LED Detection Threshold | 2.5 dBm (RF), 85 mA (DC) |
| LED Overload Threshold | Greater than 24 dBm (RF) |
| Power Requirements | 100 to 240 V AC, 50 to 60 Hz |
| Power Consumption | Maximum 98 W |
| Current Drain | 1.09 A at 100 V AC |
| Operating Temperature Range | -18°C to 63°C |
| System Compatibility | Shure PSM Personal Monitor Systems |
| Key Features | Combines up to four transmitters, reduces intermodulation, rack space optimization, DC power distribution, daisy-chain capability |
