Description

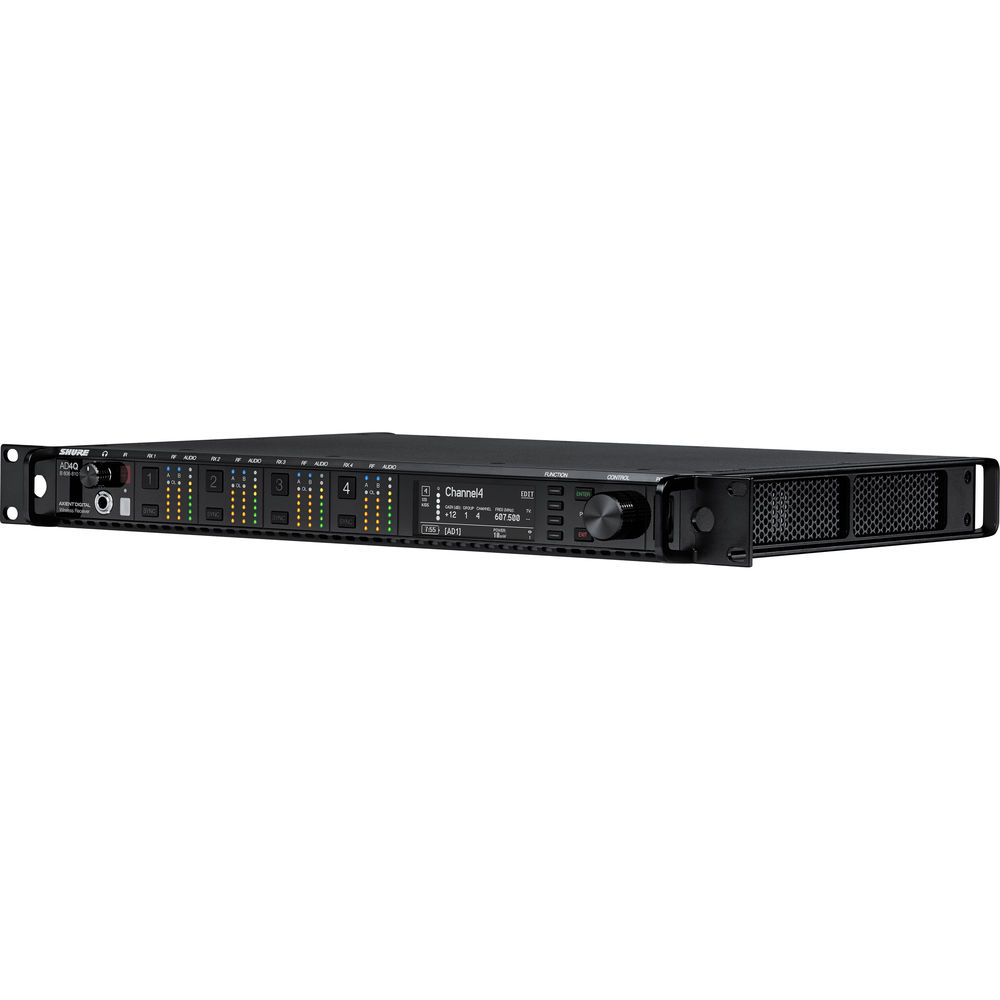

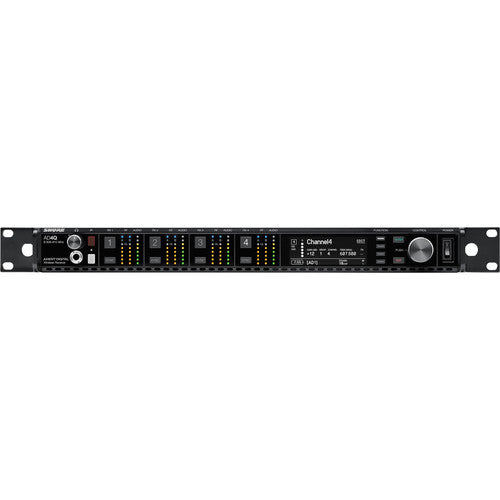

The Shure AD4Q-US Axient Digital Four-Channel Wireless Receiver is engineered for mission-critical wireless audio applications where performance, reliability, and scalability are non-negotiable. Designed for large-scale productions, broadcast environments, and high-security installations, this rackmount receiver delivers pristine 24-bit digital audio with ultra-low latency and exceptional RF stability.
Operating across a wide 166 MHz tuning range, the AD4Q supports up to 120+ simultaneous channels, making it ideal for complex, high-density deployments. True Digital Diversity reception ensures robust signal integrity, while Quadversity mode enhances RF coverage and minimizes dropouts in challenging environments.
With AES-256 encryption, Dante-enabled networking, and flexible analog and digital outputs, the AD4Q-US provides secure, high-performance audio transmission with seamless integration into modern AV infrastructures. Built for demanding professionals, it ensures uninterrupted performance for live events, corporate environments, houses of worship, and broadcast productions.
| Category | Specification |
|---|---|
| Wireless Technology | Digital UHF |
| RF Frequency Band | 470 to 636 MHz |
| Tuning Bandwidth | 166 MHz |
| Number of Channels | 4 |
| Max Simultaneous Channels | 120+ |
| RF Channel Frequencies | 6640 |
| Diversity | True Digital Diversity |
| Quadversity Mode | Supported |
| Max Operating Range | 328 ft (100 m) |
| Latency | Selectable 2 to 2.9 ms |
| Encryption | AES-256 |

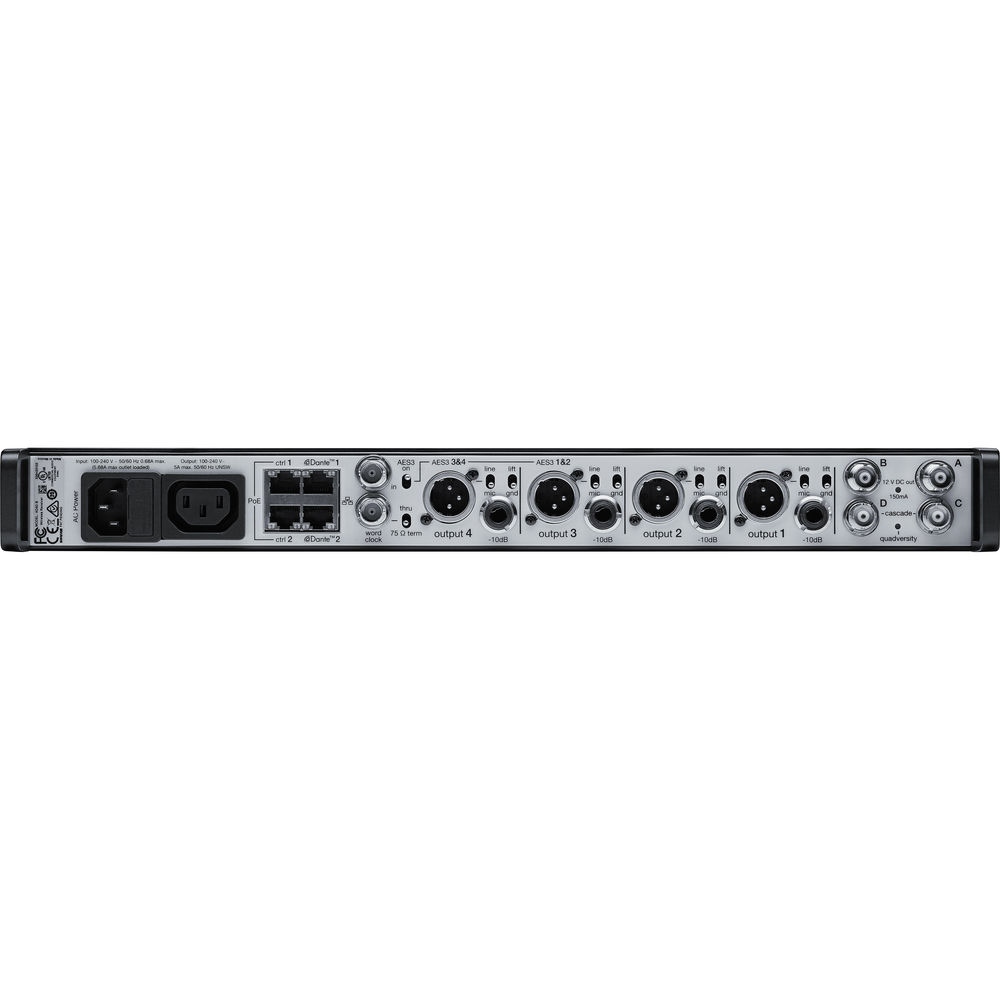

| Receiver Type | 19" Rackmount (1 RU) |
| Audio Outputs | 4 x XLR Balanced, 4 x 1/4" TRS Balanced |
| Digital Outputs | 2 x XLR AES3, Dante / AES67 via Ethernet |
| Headphone Output | 1 x 1/4" TRS |
| Network Interfaces | 4 x RJ45 (Dante, Control, DHCP/Manual IP) |
| Word Clock | 1 x BNC Input, 1 x BNC Through |
| Antenna Inputs | 2 x Removable BNC (Rear-Mount) |
| Gain Range | -18 to +42 dB (1 dB steps) |
| Frequency Response | 20 Hz to 20 kHz ±1 dB |
| Display | Backlit LCD |
| Power Requirements | 100–240 VAC, 50/60 Hz or 10.9–14.8 VDC |
| Power Consumption | 0.68 A (AC) |
| Housing | Steel |
| Dimensions | 19 x 13.1 x 1.7 in |
| Weight | 10.6 lb |
| Transmitters Included | Not Included |
| Microphone Included | Not Included |
