Description

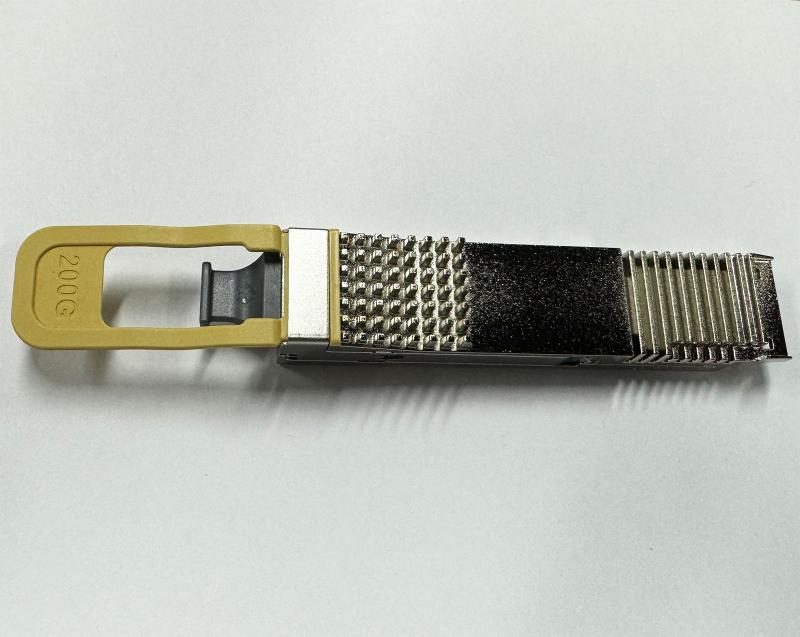

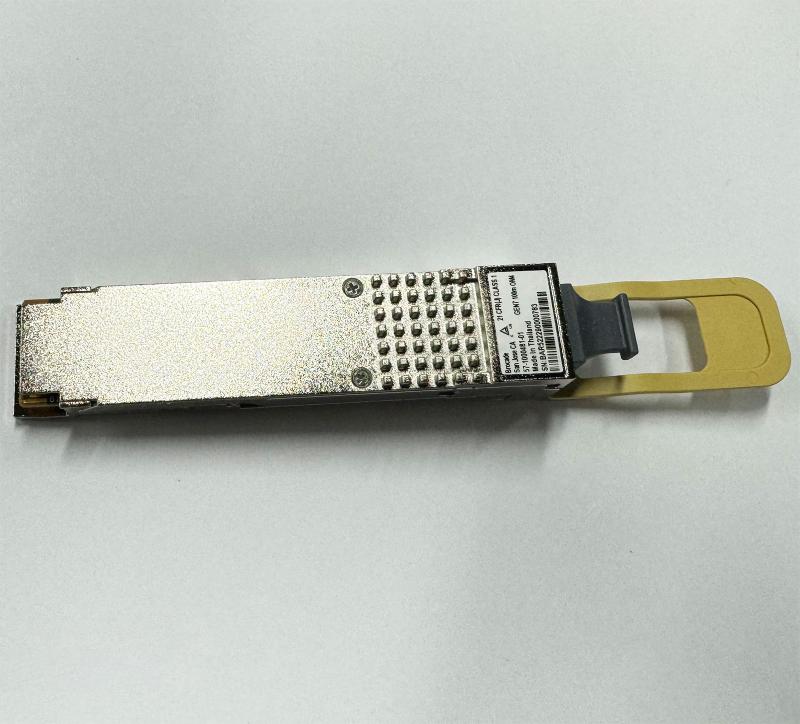

The Brocade XBR-000420 is a 64G Fibre Channel QSFP+ Shortwave (SWL) transceiver designed for high-performance, low-latency data center and storage network applications. Engineered for Gen 7 Fibre Channel environments, this optical transceiver enables reliable, ultra-high-speed connectivity across short-distance links.
It provides 4×16G/32G/64G Fibre Channel lane configurations, offering flexible bandwidth for evolving SAN infrastructures. The transceiver supports FOS 9.2.0 or higher, ensuring optimal compatibility and performance with the Brocade X7, FC64-64, FC64-48, and G730 platforms.
Built for scalability and resilience, the Brocade XBR-000420 delivers the speed and reliability required for mission-critical workloads, NVMe storage, and modern autonomous SAN architectures.
| Specification | Details |
|---|---|
| Manufacturer | Broadcom / Brocade |
| Part Number (Mfr.) | 57-1000481-01 |
| Ordering Part Number | XBR-000420 (1-Pack) |
| Form Factor | QSFP+ |
| Type | 64G Fibre Channel Transceiver |
| Wavelength | Shortwave Laser (SWL) |
| Max Data Rate | 64 Gbps |
| Interface Type | Fibre Channel |
| Distance Support | Typically up to 100 m on OM4 fiber |
| Connector Type | MPO-12 (QSFP+) |
| Supported Platforms | Brocade X7, FC64-64, FC64-48, FC32-X7-48, G730 |
| Supported FOS Version | Minimum FOS 9.2.0 or higher |
| Package Quantity | 1 Pack |
| Compliance | FC-PI-7 standard |
| Applications | SAN fabrics, NVMe over FC, high-speed storage networks |
| Operating Temperature | 0°C to 70°C (typical) |
| Product Type | Physical Product (Optical Transceiver Module) |
