Description

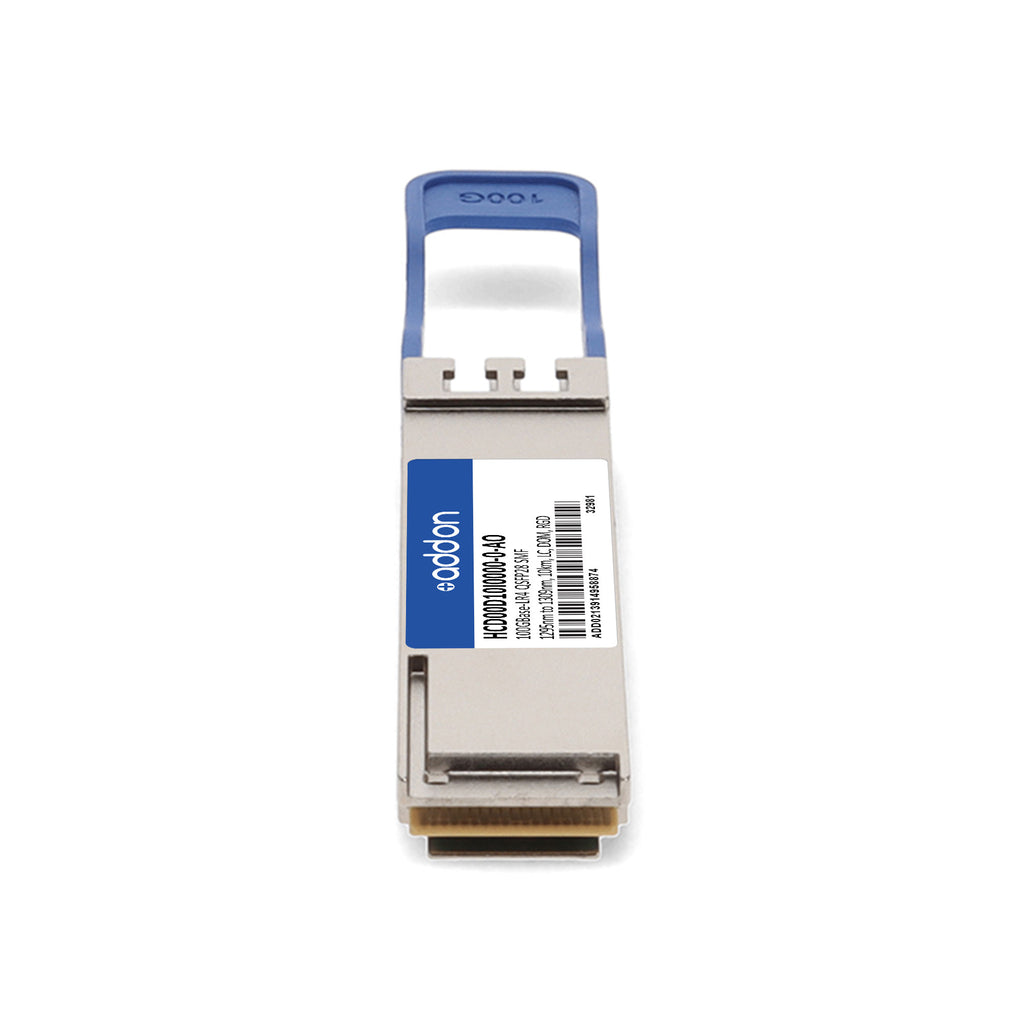

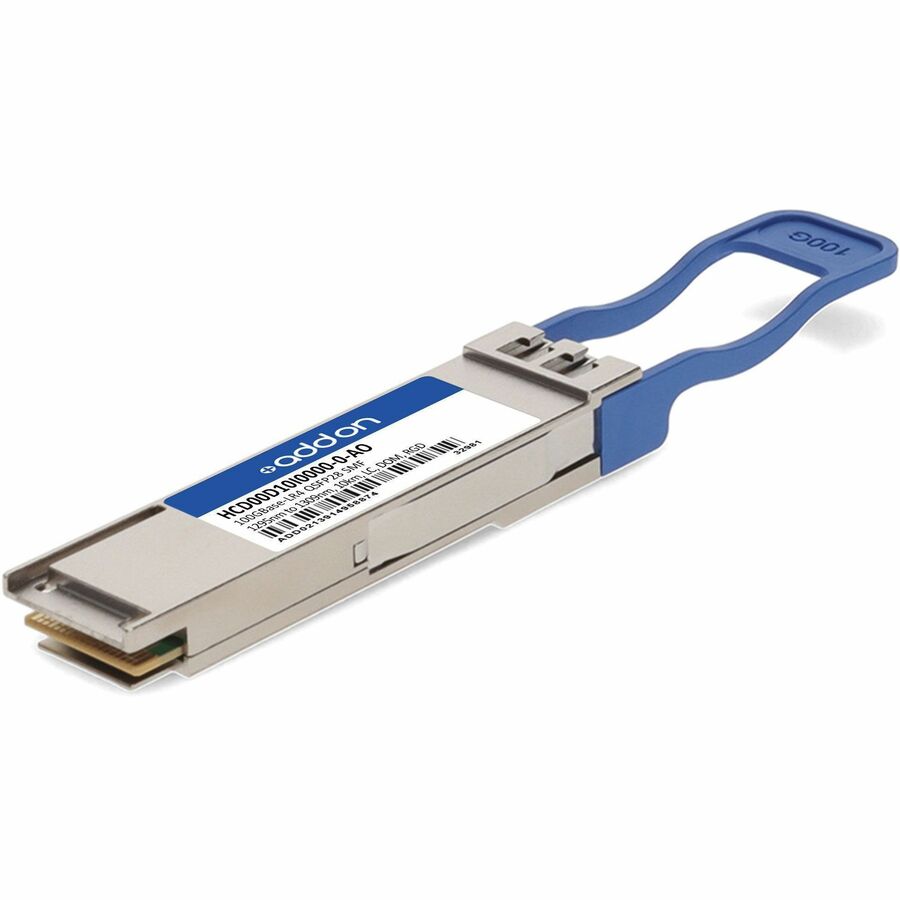

The AddOn Fujitsu® HCD00D10I0000-0 compatible QSFP28 transceiver delivers reliable 100GBase-LR4 Ethernet connectivity over single-mode fiber (SMF) with transmission distances of up to 10km. Operating on four distinct wavelengths from 1295nm to 1309nm and equipped with a duplex LC connector, this hot-swappable module is engineered for high-performance networking environments, including access and enterprise applications.
Built for industrial-grade conditions with a temperature range of -40°C to 85°C, the module supports Digital Optical Monitoring (DOM) for real-time parameter tracking and is fully compliant with SFF-8665 and TAA regulations. Each transceiver is programmed, serialized, and rigorously tested to ensure seamless compatibility and identical performance to the original Fujitsu® part. With RoHS compliance, excellent ESD protection, and a limited lifetime warranty, it’s a cost-effective and dependable solution for 100G network deployments.
| Specification | Description |
|---|---|
| Brand | AddOn |
| Compatible OEM | Fujitsu® |
| Model / SKU | HCD00D10I0000-0-AO |
| Form Factor | QSFP28 |
| Data Rate | 100GBase-LR4 |
| Wavelength | 1295nm – 1309nm |
| Transmission Distance | Up to 10 km |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC |
| Digital Optical Monitoring (DOM) | Supported |
| Operating Temperature | -40°C to 85°C (Industrial) |
| Compliance Standards | SFF-8665, TAA, RoHS 2.0 |
| Power Supply Voltage | 3.135V – 3.465V |
| Power Dissipation | 4.0 W |
| Sensitivity (OMA) | -8.6 dBm |
| Receiver Overload | 4.5 dBm |
| Extinction Ratio | ≥ 4.0 dB |
| Launch Power per Lane | -4.3 to +4.5 dBm |
| Center Wavelengths (Tx/Rx) | 1294.53–1310.19 nm |
| Hot Swappable | Yes |
| ESD Protection | MIL-STD-883E Method 3015.4 |
| Laser Safety | FDA 21CFR, IEC 60825-1,2 |
| EMI/EMC Compliance | FCC Part 15 Subpart B, EN55022:2010 |
| Warranty | Limited Lifetime |
