Description

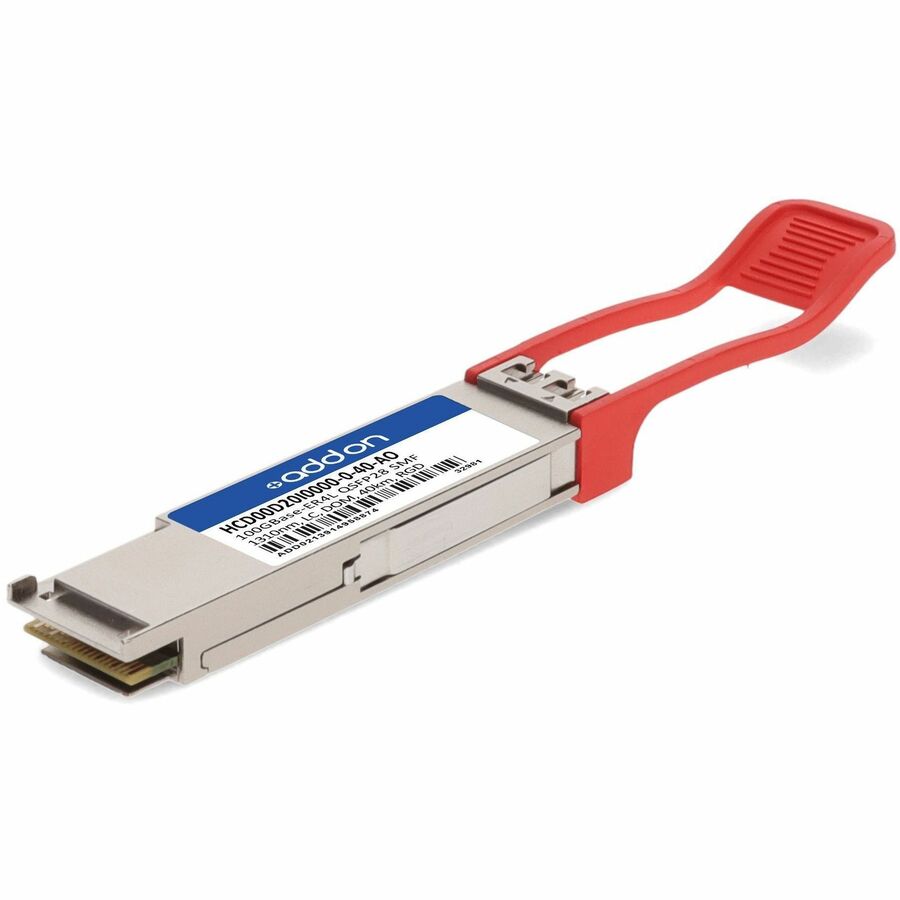

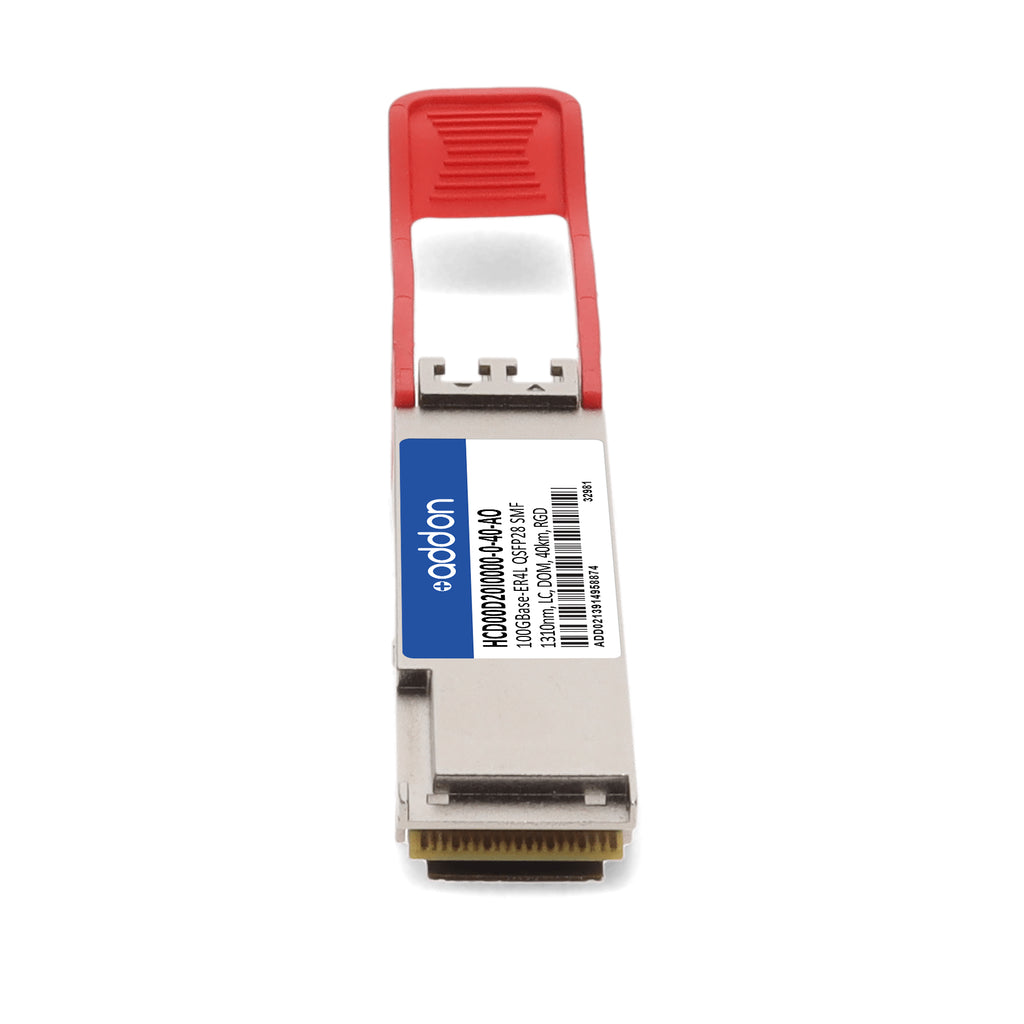

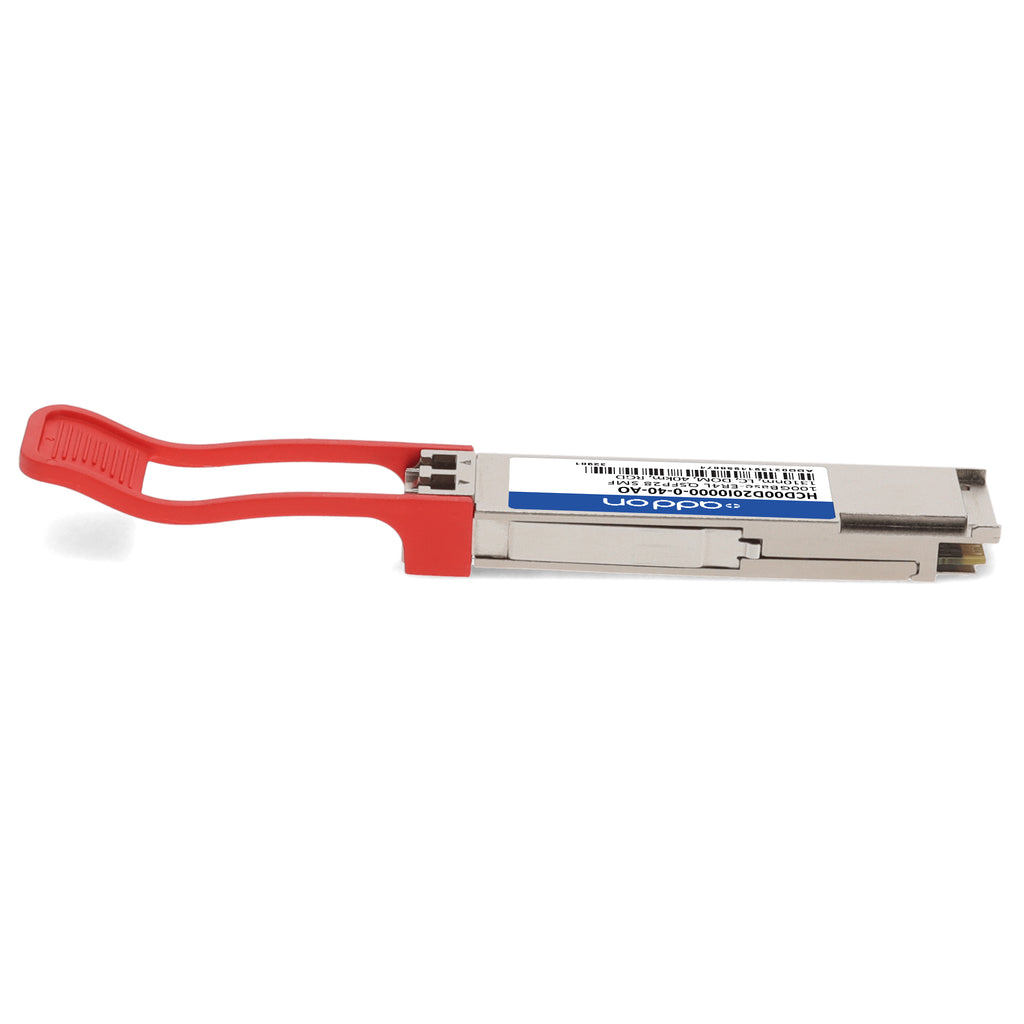

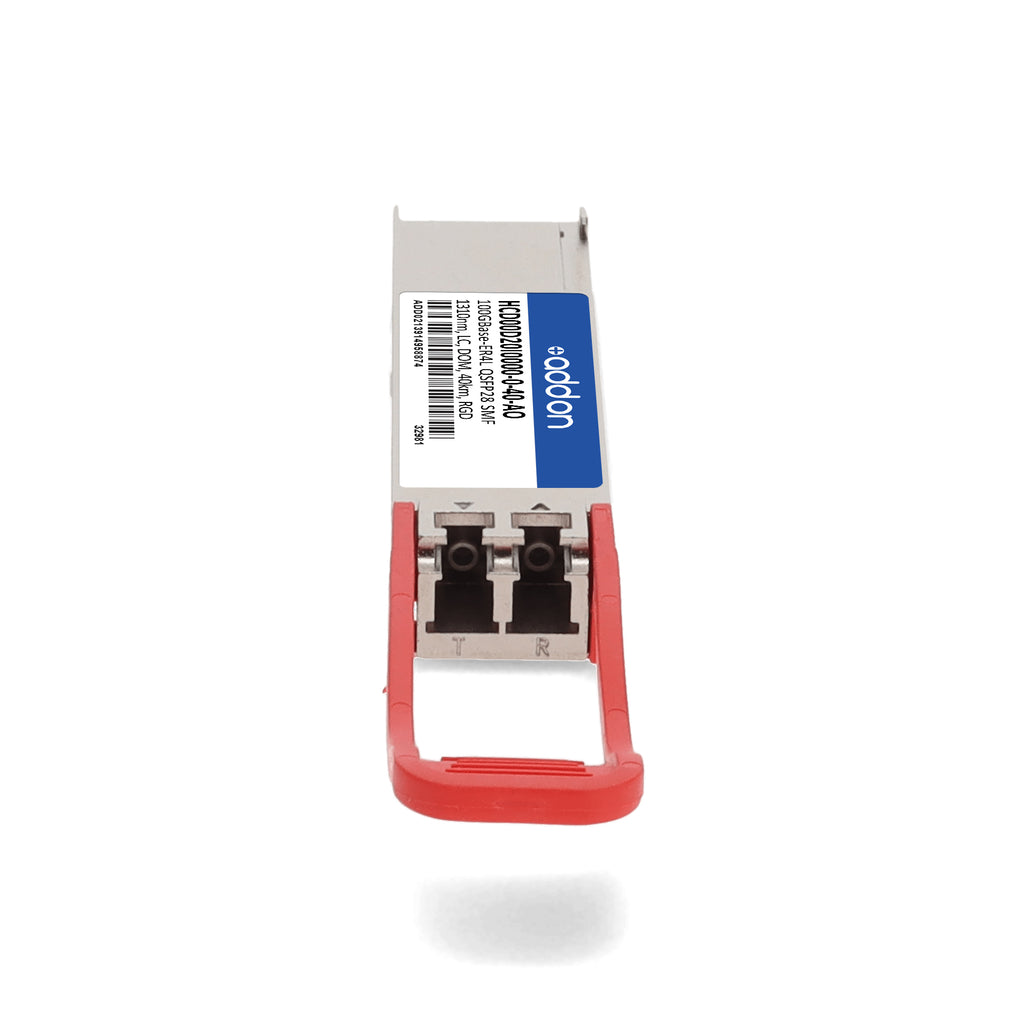

The AddOn Fujitsu® HCD00D20I0000-0-40 Compatible TAA 100GBase-ER4L QSFP28 Transceiver delivers high-performance, long-reach 100 GbE connectivity over single-mode fiber (SMF) for data center, enterprise, and telecom networks. Operating across a wavelength range of 1295 nm to 1309 nm, it provides reliable data transmission up to 40 km via a duplex LC connector.
Engineered for demanding environments, this hot-swappable transceiver supports digital optical monitoring (DOM) for real-time diagnostics and operates over an extended industrial temperature range (-40 °C to +85 °C). Fully TAA compliant, RoHS-certified, and 100% Fujitsu-compatible, each unit undergoes rigorous testing, serialization, and validation to ensure seamless integration and consistent performance in high-availability networks.
| Specification | Description |
|---|---|
| SKU | HCD00D20I0000-0-40-AO |
| Form Factor | QSFP28 |
| Data Rate | 100 Gbps (4 × 25.78125 Gbps) |
| Standards Compliance | IEEE 802.3, SFF-8665 |
| Wavelength Range | 1295 nm – 1309 nm |
| Optical Interface | Duplex LC |
| Fiber Type | Single-Mode Fiber (SMF) |
| Reach / Distance | Up to 40 km |
| Optical Modulation | 100GBase-ER4L |
| DOM Support | Yes |
| Hot Swappable | Yes |
| Extinction Ratio | ≥ 8.0 dB |
| Launch Optical Power (Per Lane) | –2.9 dBm to +2.9 dBm |
| Total Launch Power | +8.9 dBm (max) |
| Receiver Sensitivity (OMA) | –16.6 dBm (typical) |
| Receiver Overload | –4.9 dBm |
| Operating Temperature | –40 °C to +85 °C (Industrial) |
| Storage Temperature | –40 °C to +85 °C |
| Supply Voltage | 3.135 V – 3.465 V |
| Power Dissipation | ≤ 4.5 W |
| Connector Type | Duplex LC |
| Compliance | TAA, RoHS 2.0, FCC Part 15, EN55022:2010, FDA 21CFR, EN60950-1, IEC 60825-1/2 |
| Applications | 100G Ethernet, Data Centers, Access & Enterprise Networks |
| Warranty | Limited Lifetime Warranty |
