Description

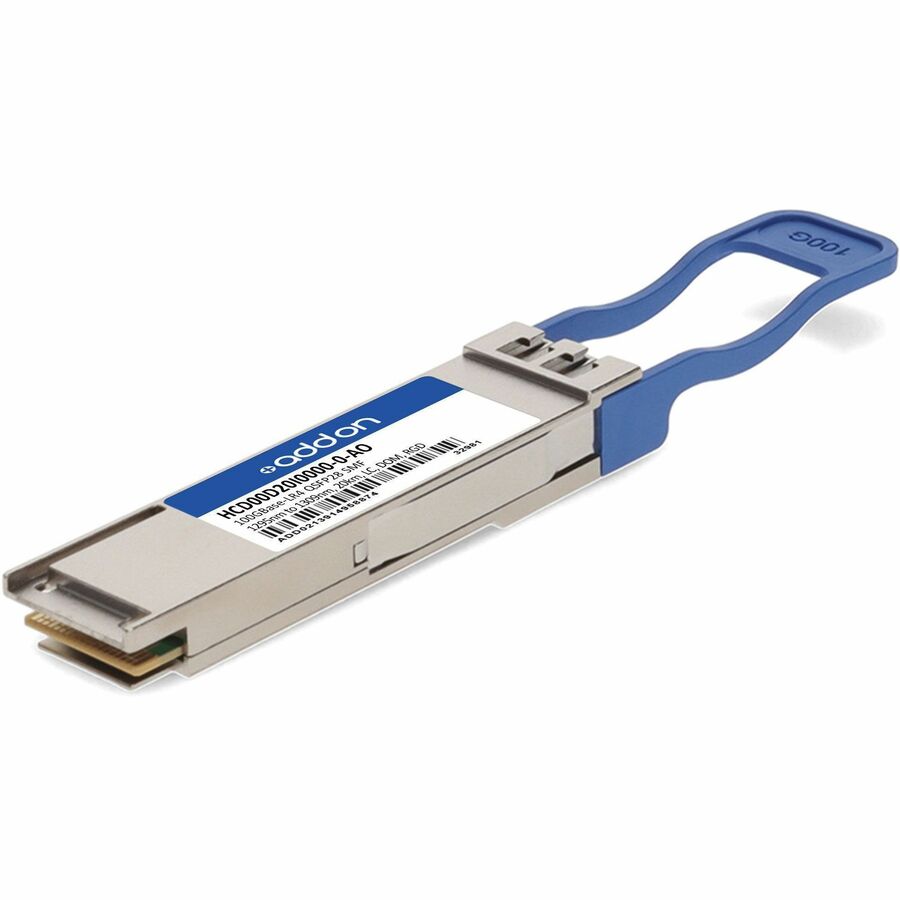

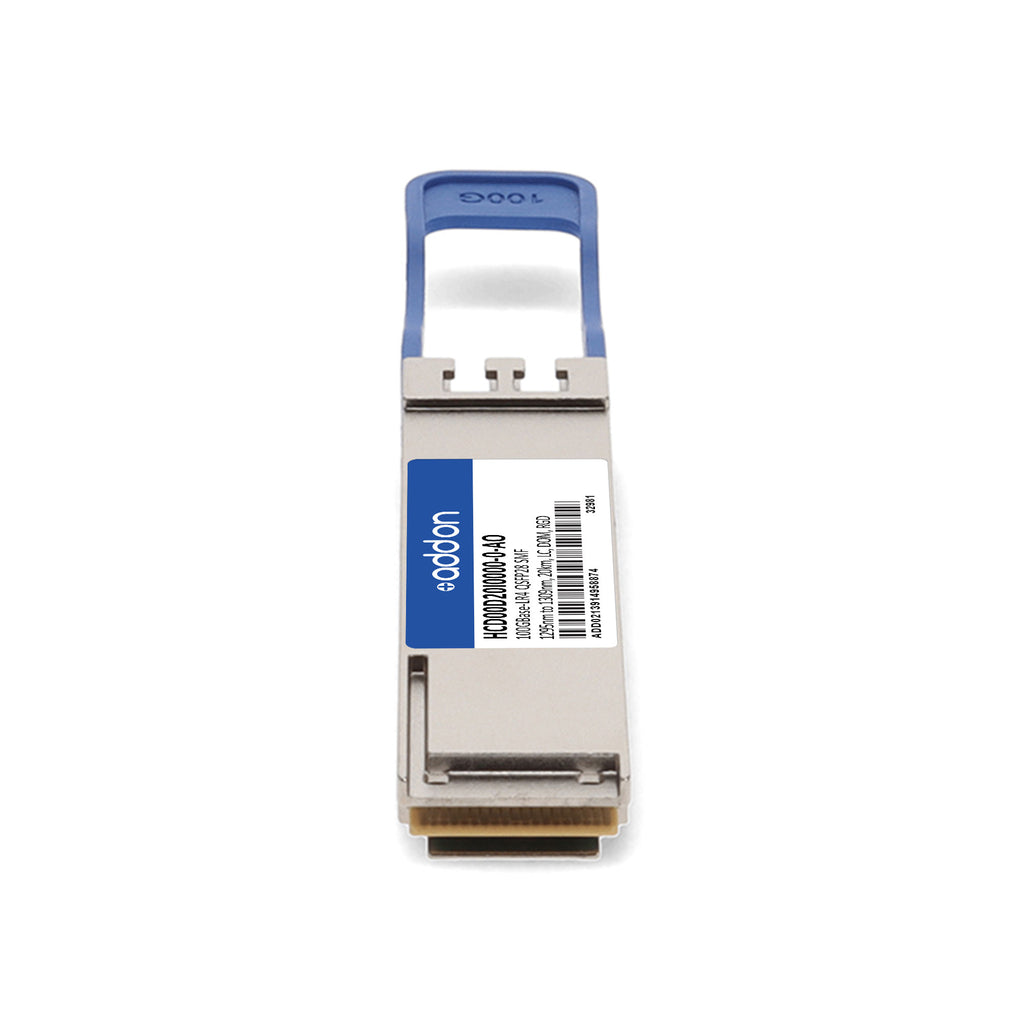

The AddOn Fujitsu® HCD00D20I0000-0 Compatible TAA 100GBase-LR4 QSFP28 Transceiver delivers reliable, high-speed optical connectivity for data center, enterprise, and service provider networks. Supporting data rates up to 100Gbps over single-mode fiber (SMF) at distances of up to 20km, this module uses four CWDM lanes with wavelengths ranging from 1295nm to 1309nm. It features a duplex LC connector, hot-pluggable QSFP28 form factor, and industrial temperature support from -40°C to 85°C, making it ideal for demanding environments.
The transceiver supports Digital Optical Monitoring (DOM) for real-time diagnostics, ensuring optimal network performance. Fully compliant with SFF-8665 standards and TAA requirements, it is guaranteed 100% compatible with the original Fujitsu® transceiver. Designed for long-term reliability and backed by a limited lifetime warranty, this AddOn module provides a cost-effective solution for expanding high-capacity optical networks.
| Specification | Description |
|---|---|
| SKU | HCD00D20I0000-0-AO |
| Compatible OEM | Fujitsu® |
| Form Factor | QSFP28 |
| Application | 100GBase Ethernet |
| Data Rate per Channel | 25.78125 Gb/s |
| Aggregate Data Rate | 100 Gbps |
| Wavelength | 1295nm – 1309nm |
| Fiber Type | Single-Mode Fiber (SMF) |
| Connector | Duplex LC |
| Max Reach | 20 km |
| Digital Optical Monitoring (DOM) | Supported |
| Temperature Range | -40°C to 85°C (Industrial) |
| Power Dissipation | 5 W (max) |
| Power Supply Voltage | 3.135V – 3.465V |
| Tx Launch Power (per lane) | 0 to +5 dBm |
| Total Launch Power | up to +10.5 dBm |
| Receiver Sensitivity (OMA) | ≤ -9.0 dBm |
| Receiver Overload | ≤ +5.0 dBm |
| Extinction Ratio | ≥ 4.0 dB |
| Compliance | SFF-8665, TAA, RoHS 2.0, FCC Part 15 Subpart B, EN55022:2010, IEC 60825-1/2 |
| ESD Protection | MIL-STD-883E Method 3015.4, IEC 61000-4-3 |
| Hot Pluggable | Yes |
| Warranty | Limited Lifetime Warranty |
