Description

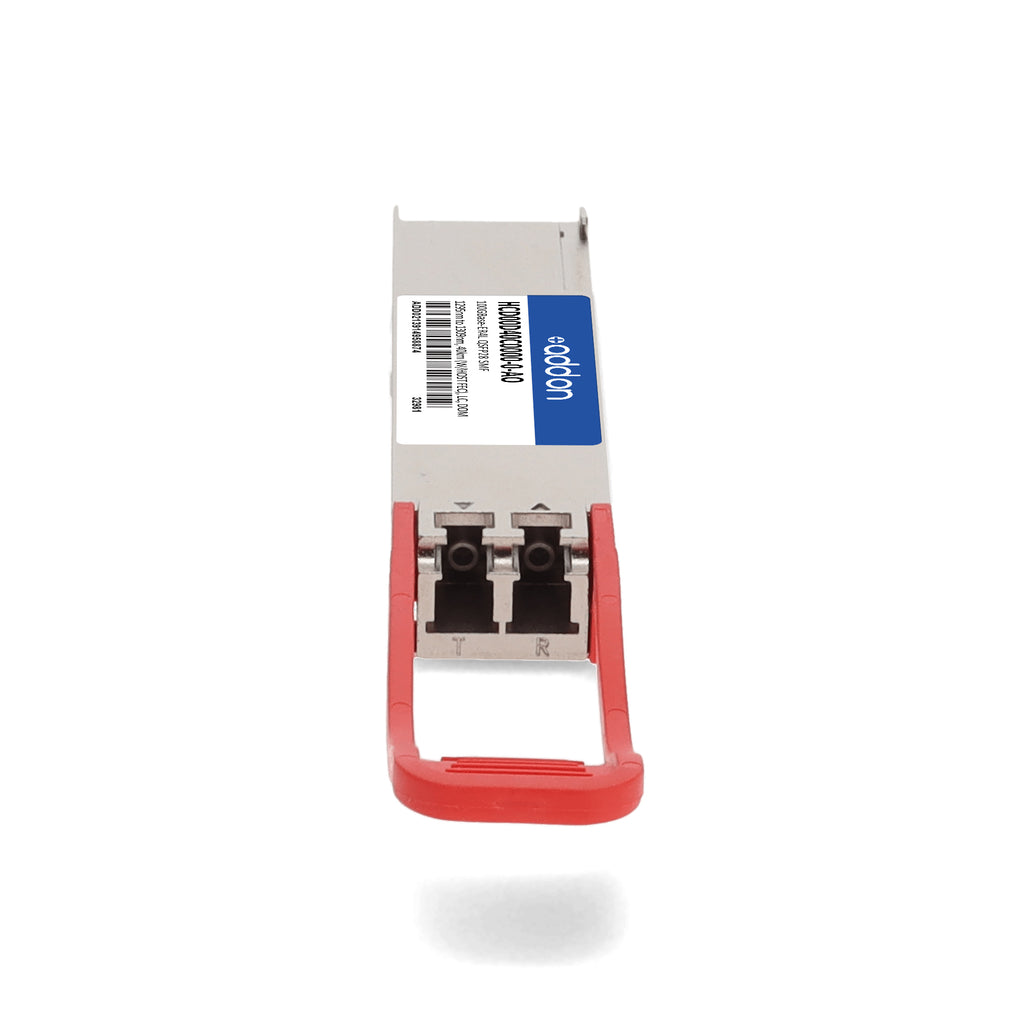

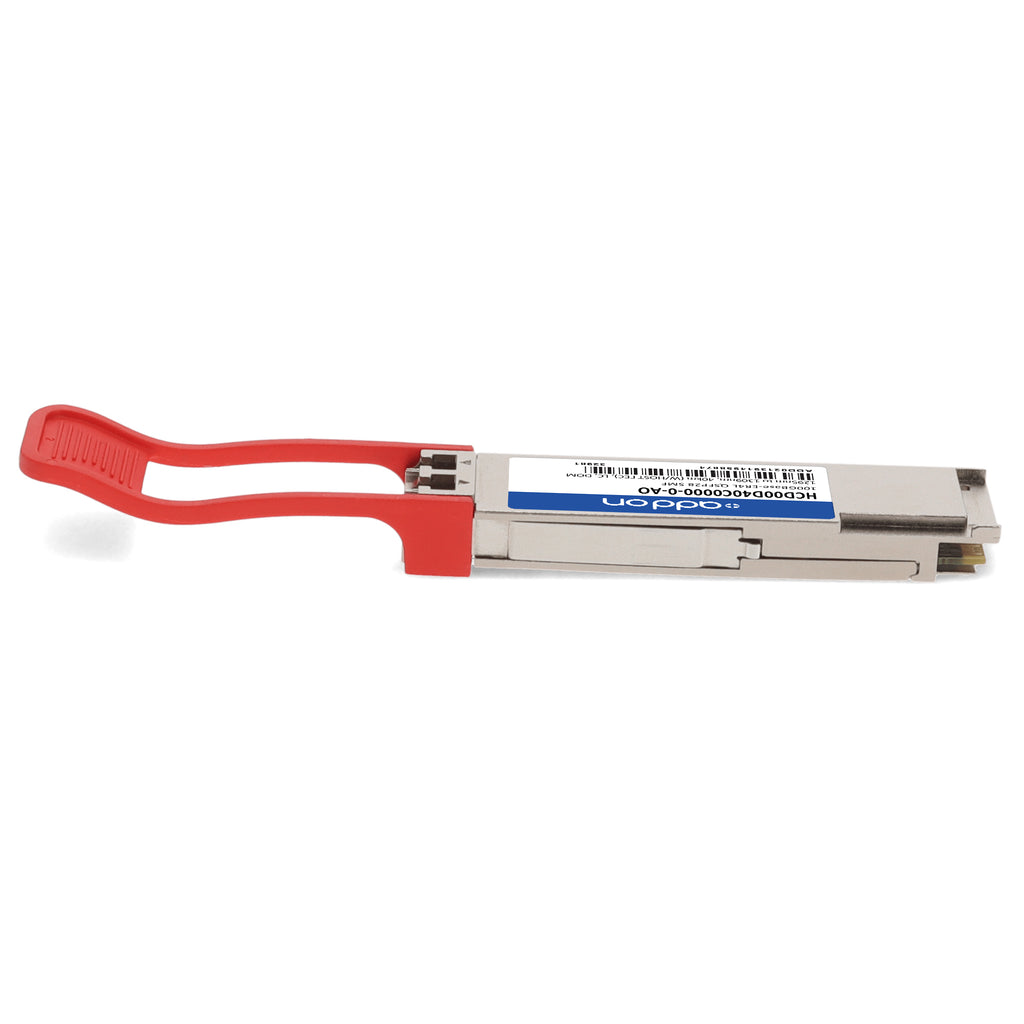

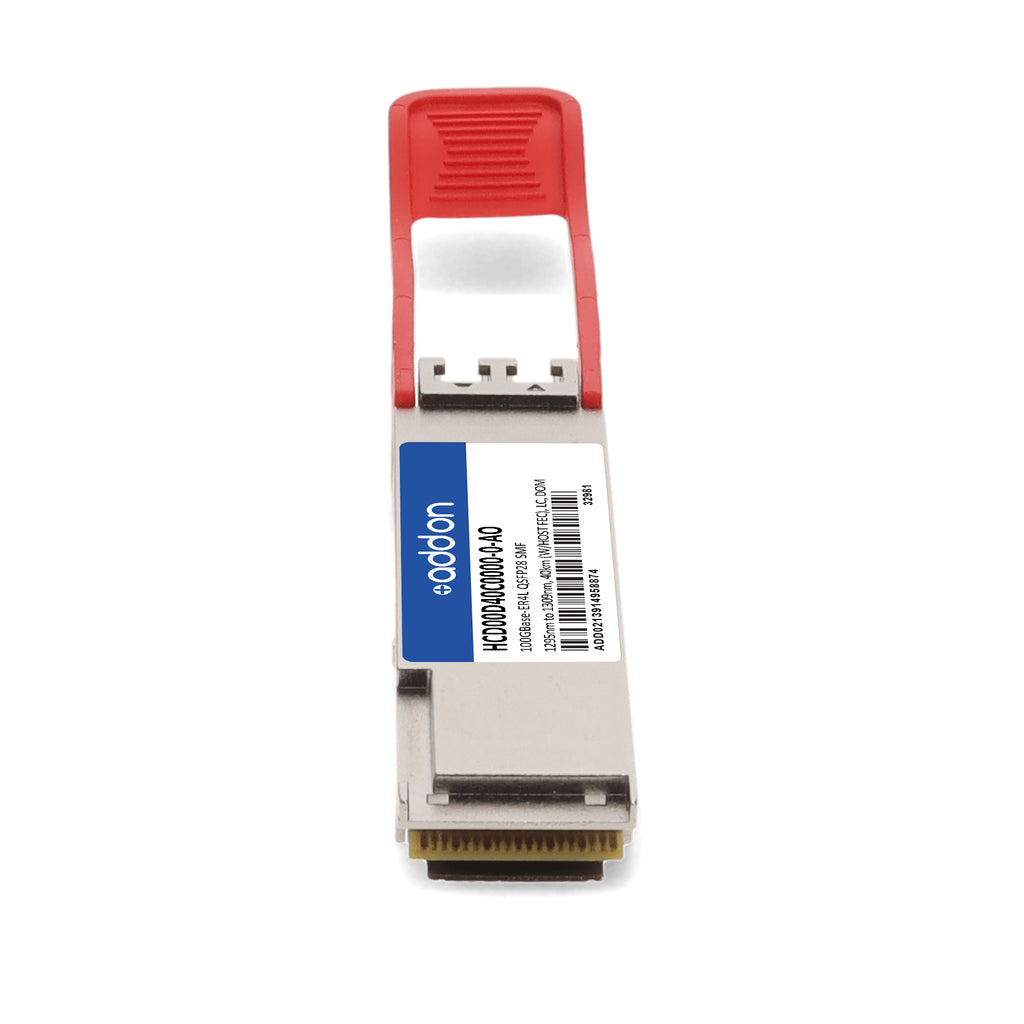

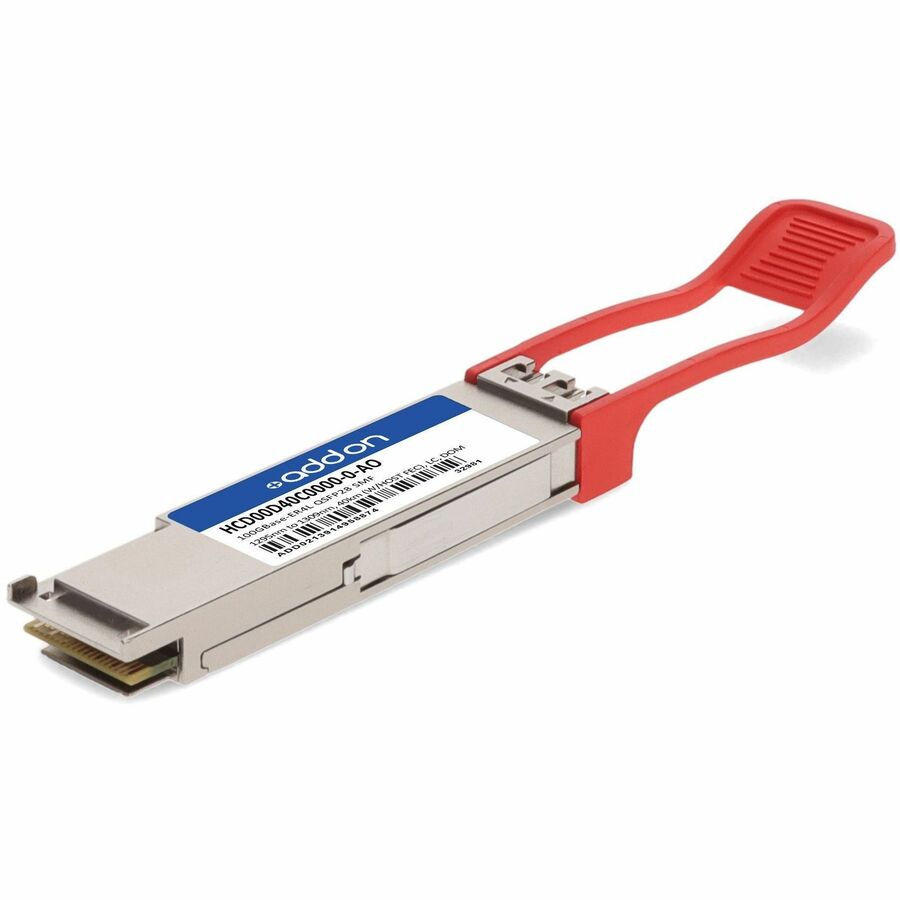

This AddOn Fujitsu® HCD00D40C0000-0 compatible QSFP28 transceiver delivers reliable 100GBase-ER4 Ethernet connectivity with a reach of up to 40km over single-mode fiber (SMF). Operating on wavelengths from 1295nm to 1309nm through a duplex LC connector, it ensures high-performance data transmission for enterprise and access network environments. Each transceiver is hot-swappable, fully compliant with SFF-8665 standards, and rigorously tested for seamless interoperability with Fujitsu® systems. Digital Optical Monitoring (DOM) enables real-time performance tracking, while robust ESD protection, RoHS compliance, and TAA certification make it a secure and future-ready solution for large-scale network deployments.
| Specification | Details |
|---|---|
| Compatible OEM | Fujitsu® |
| Model / SKU | HCD00D40C0000-0-AO |
| Form Factor | QSFP28 |
| Application | 100GBase Ethernet |
| Data Rate per Channel | 25.78125 Gbps |
| Total Data Rate | 100 Gbps |
| Wavelength | 1295nm – 1309nm |
| Maximum Reach | 40 km |
| Connector Type | Duplex LC |
| Fiber Type | Single-Mode Fiber (SMF) |
| Compliance Standards | SFF-8665, IEEE 802.3ba |
| Operating Temperature Range | 0°C to 70°C |
| Storage Temperature Range | -40°C to 85°C |
| Supply Voltage | 3.135V – 3.465V |
| Power Dissipation | 5W (typical) |
| Transmitter Launch Power (Per Lane) | -2.9 to +2.9 dBm |
| Total Launch Power | Up to +8.9 dBm |
| Receiver Sensitivity (OMA) | ≤ -21.4 dBm |
| Receiver Overload (Per Channel) | +2.0 dBm |
| Digital Optical Monitoring (DOM) | Supported |
| Hot Swappable | Yes |
| TAA Compliant | Yes |
| RoHS Compliant | Yes |
| Warranty | Limited Lifetime Warranty |
