Description
The Edgecore Minipack AS8000-O-AC-F-US is a high-performance, open modular 100G chassis switch designed for modern data center fabrics and service provider central offices. Built on the Broadcom Tomahawk 3 chipset, it delivers 25.6 Tbps of full-duplex switching capacity and 19 billion packets per second forwarding rate, meeting the demands of large-scale, high-radix 100G networks.

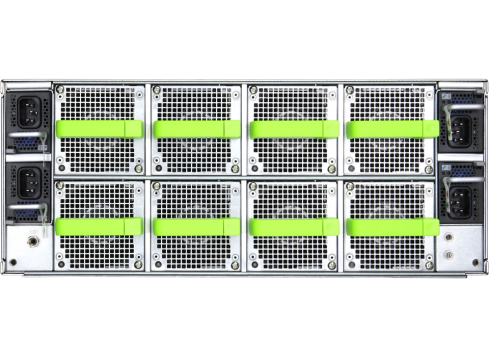

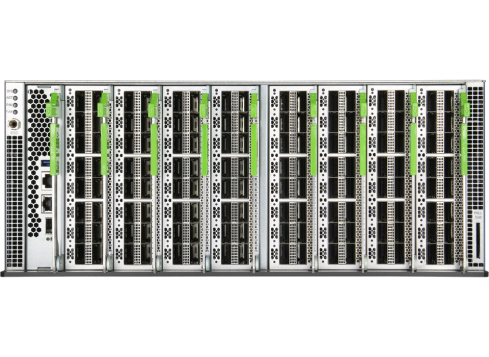

Supporting QSFP28 non-blocking ports, each interface can flexibly provide 1×100G, 2×50G, 1×40G, or 4×25G/10G connectivity. The Minipack AS8000 integrates Intel® Xeon® D-1527 2.2GHz CPU, 32GB DDR4 memory, and redundant hot-swappable 1500W AC power supplies with port-to-power airflow for efficient cooling and service continuity.
Pre-loaded with ONIE (Open Network Install Environment), this platform allows deployment of open-source or commercial Network Operating Systems, giving operators the flexibility to run their preferred software. The system’s modular design simplifies maintenance, reduces cabling complexity, and optimizes power consumption, making it ideal for next-generation leaf/spine architectures, Ethernet aggregation, and internet exchanges.
| Category | Details |
|---|---|
| Brand | Edgecore Networks |
| Model | Minipack AS8000-O-AC-F-US |
| Product Type | Modular 100G Chassis Switch |
| Switch Silicon | Broadcom BCM56980 Tomahawk 3, 12.8 Tbps |
| CPU Module | Intel® Xeon® D-1527 Quad-Core 2.2GHz |
| Memory | 2×16GB DDR4 SO-DIMM |
| Flash Memory | 16MB NOR Flash |
| Switching Capacity | 25.6 Tbps full duplex |
| Forwarding Rate | 19 Bpps |
| Packet Buffer | 64MB integrated |
| Interfaces | QSFP28 ports (1×100G / 2×50G / 1×40G / 4×25G / 4×10G) |
| Management Ports | 1×RJ45 console, 1×USB Type-A, 1×RJ45/SFP 1G OOB |
| Airflow Direction | Port-to-Power |
| Power Supply | 4×1500W AC (100–277V, 50/60Hz) |
| Cooling | Hot-swappable redundant fan modules |
| Form Factor | 4RU rack-mountable chassis |
| Dimensions (W×D×H) | 44.04×75.55×17.62 cm (17.34×29.74×6.94 in) |
| Weight | 55 kg (121.25 lb) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Humidity | 5%–95% non-condensing |
| Certifications | CE, FCC Class A, VCCI, UL/CUL, RoHS 2.0 |
| Software Environment | Preloaded with ONIE (Open Network Install Environment) |
| Warranty | 3-Year Hardware Warranty |
