Description

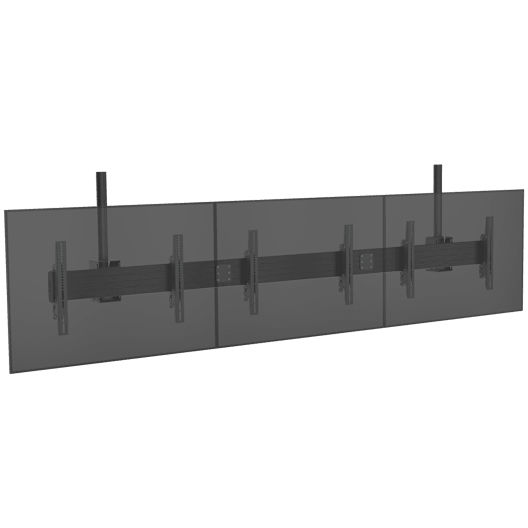

The Chief Fusion® Large Ceiling 3x1 Modular Menu Board Mount LCM3X1UM is engineered for professional digital menu board installations in fast food restaurants, delis, campus dining halls, and commercial food service environments. Designed for a clean, perfectly aligned three-screen horizontal configuration, this ceiling-mounted solution delivers precision positioning, fast installation, and long-term serviceability.
Built on Chief’s trusted Fusion modular platform, the system features horizontal extrusions with depth adjustment to ensure a seamless, uniform display alignment—even on irregular mounting surfaces. Micro-adjustable roll and controlled tilt allow installers to fine-tune each screen for a polished, professional presentation.
Tool-free screen engagement simplifies installation and maintenance, while modular components ship compactly for easier handling, storage, and deployment. Designed to support most 40”–55” displays (with optional brackets supporting up to 65”), this mount is ideal for high-traffic commercial environments requiring durability, flexibility, and a streamlined appearance.
Ceiling plate and extension column are required and must be ordered separately.
| Specification | Details |
|---|---|
| Brand | Chief |
| Series | Fusion® Modular Menu Board Ceiling Solutions |
| Model | LCM3X1UM |
| Screen Configuration | 3 Screens Wide x 1 Screen High (3x1) |
| Recommended Display Size | 40"–55" (Supports up to 65" with FCAX extension brackets; compatibility verification required) |
| Tilt Adjustment | +5° to -20° |
| Roll Adjustment | Micro-adjustable leveling ±3° |
| Mounting Type | Ceiling-mounted modular extrusion system |
| Screen Engagement | Tool-free installation |
| Depth Adjustment | Horizontal extrusion with adjustable depth alignment |
| Security | Optional padlock security capability |
| Ceiling Plate & Column | Required; ordered separately |
| Pipe Compatibility | Compatible with 1.5" NPT and CPA pinned ceiling plate and column systems |
| Ceiling Structure Compatibility | Double 2" x 4" wood framework ceiling, 8" concrete ceiling, suspended metal framing channel ceiling (accessories may be required) |
| Application | Quick-service restaurants, food courts, delis, campus dining halls, commercial menu board installations |
