Description

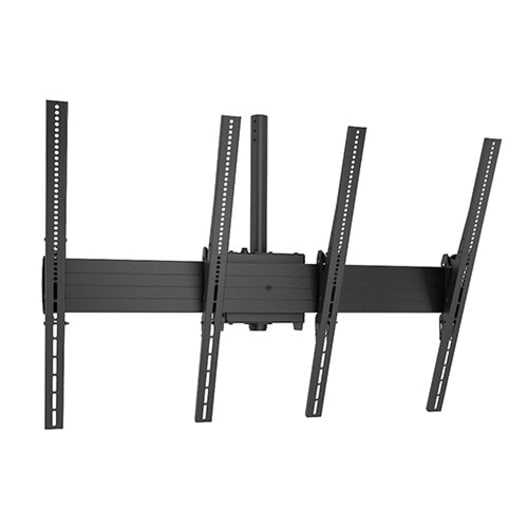

The Chief FUSION LCM2X1UP is a large-format, ceiling-mounted 2x1 portrait menu board solution designed for digital signage installations where wall mounting is not an option. Ideal for retail, QSR, and commercial environments, this system allows two displays to be mounted side by side in a clean, professional overhead configuration.
Built around a single horizontal extrusion, the LCM2X1UP keeps screens perfectly aligned while allowing easy expansion to longer menu boards. Centris™ tilt technology enables smooth, fingertip adjustment for precise screen positioning, while micro-adjustable roll ensures accurate leveling after installation.
Tool-free screen engagement speeds up installation and maintenance, and optional pad-lock security provides added protection in public-facing environments. Compatible with standard 1.5" NPT and CPA pinned ceiling plate and column systems, this solution offers flexibility across a wide range of ceiling configurations.
| Specification | Details |
|---|---|
| Mount Type | Ceiling Mounted Menu Board |
| Configuration | 2 Displays Wide x 1 Display High |
| Orientation | Portrait |
| Typical Screen Size | 40"–55" Displays |
| Extended Screen Support | Up to 65" with FCAX Extension Brackets |
| Tilt Adjustment | +5° to -20° (Centris™ Technology) |
| Roll Adjustment | ±3° Micro-Adjustment |
| Swivel | 360° |
| Alignment System | Single Horizontal Extrusion |
| Screen Engagement | Tool-Free |
| Security | Optional Pad-Lock Screen Security |
| Compatibility | Traditional 1.5" NPT and CPA Pinned Ceiling Systems |
| Required Accessories | Ceiling Plate and Extension Column (Sold Separately) |
| Certification | UL Listed |
| Application Use | Digital Signage, Menu Boards, Retail Displays |
