Description

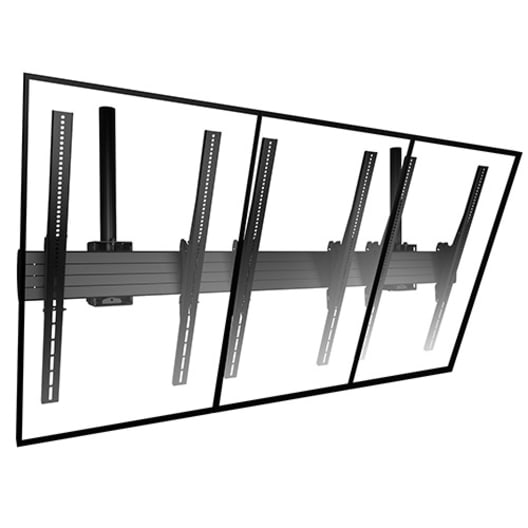

The Chief FUSION Large Ceiling Mounted 3x1 Portrait Menu Board (LCM3X1UP) is designed for high-visibility digital signage installations where wall mounting is not an option. This professional ceiling-mounted solution supports a three-display-wide, single-row portrait configuration, making it ideal for menu boards, retail signage, transportation hubs, and commercial environments.
Built on the proven FUSION platform, this system uses a single horizontal extrusion to maintain precise screen alignment while allowing installers to easily extend configurations to create longer menu boards. Centris™ tilt technology enables smooth, fingertip adjustment, while micro-adjustable roll and full swivel provide precise leveling and optimal viewing angles after installation.
Tool-free screen engagement speeds installation and servicing, while optional pad-lock security helps protect displays in public spaces. Designed to work with both traditional 1.5" NPT and CPA pinned ceiling plate and column systems, the LCM3X1UP offers flexibility, stability, and a clean, professional appearance for ceiling-mounted digital signage applications.
| Specification | Details |
|---|---|
| Mount Type | Ceiling Mounted Menu Board |
| Screen Configuration | 3 displays wide Ă— 1 display high |
| Orientation | Portrait |
| Typical Screen Size | 40"–55" displays |
| Extended Screen Support | Up to 65" with FCAX extension brackets |
| Tilt Adjustment | +5° to -20° using Centris™ technology |
| Roll Adjustment | Micro-adjustable ±3° |
| Swivel | 360° for optimal viewing angles |
| Screen Engagement | Tool-free |
| Alignment System | Single horizontal extrusion for precise screen alignment |
| Security | Optional pad-lock screen security |
| Compatibility | Traditional 1.5" NPT and CPA pinned ceiling plate & column systems |
| Certification | UL Listed |
| Required Accessories | Ceiling plate and extension column (ordered separately) |
| Application Use | Digital signage and menu board installations |
