Description

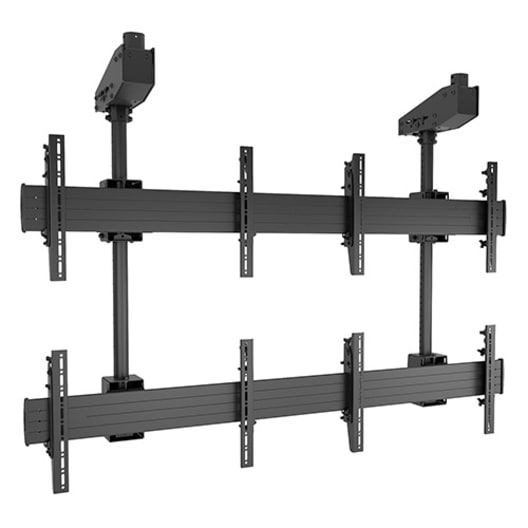

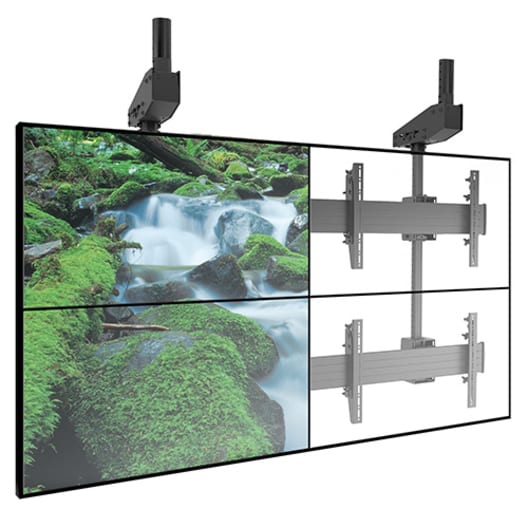

The Chief FUSION Micro-Adjustable Large Ceiling-Mounted 2×2 Video Wall is engineered for professional video wall installations where wall mounting is not possible. Designed for digital signage and commercial environments, this solution delivers precise alignment, structural strength, and long-term stability in high-visibility spaces.
Independent micro-adjustment controls allow installers to fine-tune height and plumb without tools, ensuring perfectly aligned display rows and columns. CONTROLZONE™ leveling at all column intersection points provides additional accuracy, while infinite vertical and lateral adjustments enable tight bezel alignment across all four screens.
Built with heavy-duty steel construction, this ceiling-mounted system supports large-format displays up to 55 inches and up to 125 lb per screen. The modular design allows expansion side-by-side or vertically, making it easy to scale video walls up to three displays tall as installation needs evolve.
Ceiling plates and extension columns are required and must be ordered separately. The system is compatible with traditional 1.5" NPT components as well as CPA pinned ceiling plate and column systems. Optional Fusion Universal Back Covers can be added to provide a clean, professional appearance by concealing rear-mounted hardware and cabling.
| Specification | Details |
|---|---|
| Product Type | Ceiling-mounted video wall system |
| Configuration | 2 screens wide × 2 screens high |
| Mounting Location | Ceiling |
| Display Orientation | Landscape or portrait (display dependent) |
| Maximum Display Size | Up to 55" per screen |
| Maximum Weight Capacity | Up to 125 lb (56.7 kg) per display |
| Adjustment Features | Independent height and plumb micro-adjustment knobs |
| Leveling System | CONTROLZONE™ micro-height and leveling adjustment |
| Positioning | Infinite vertical and lateral adjustment |
| Construction | Heavy-duty steel |
| Expandability | Configurable side-by-side and vertically up to 3 displays tall |
| Ceiling Interface | Requires ceiling plate and extension column (sold separately) |
| Column Compatibility | Traditional 1.5" NPT and CPA pinned systems |
| Compliance | UL Listed |
| Typical Applications | Digital signage, commercial video walls, public venues |
