Description

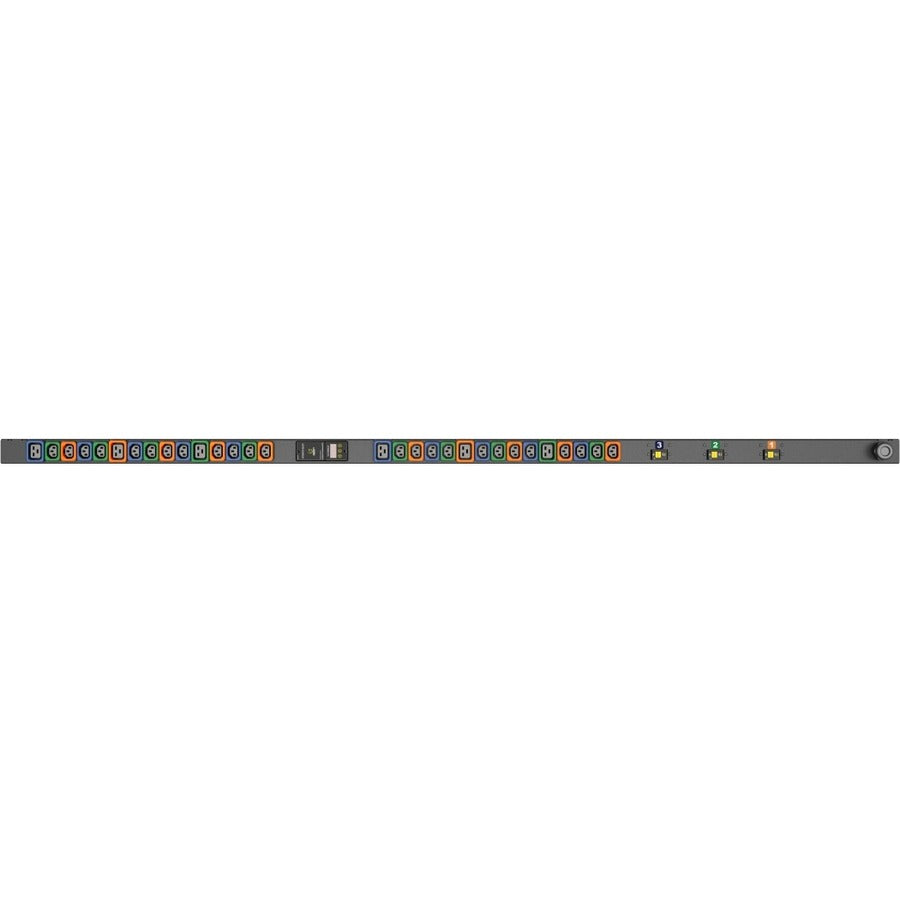

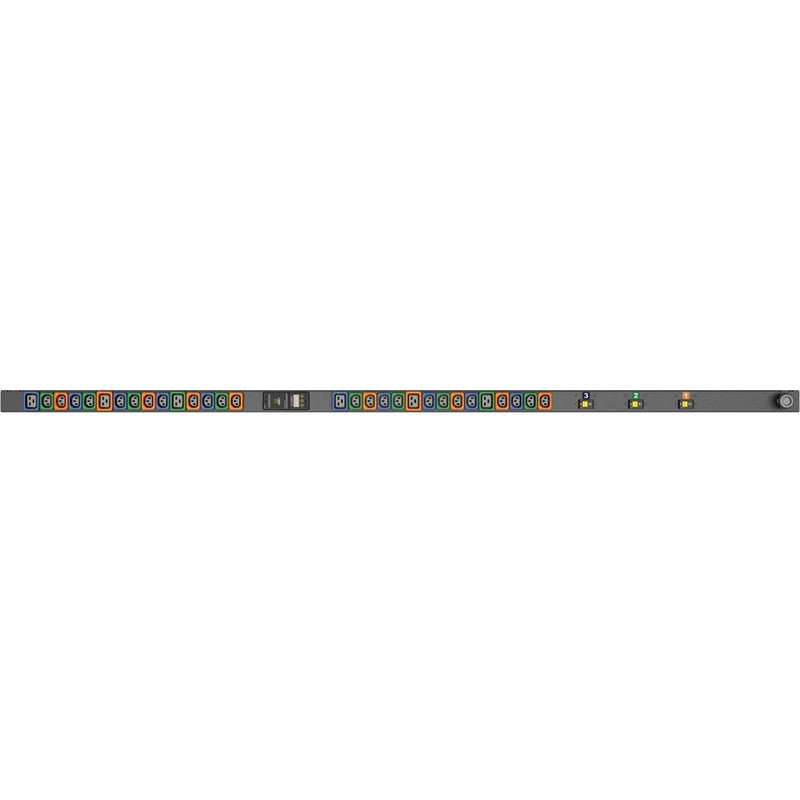

The Vertiv Geist I10140L is a 30-outlet, metered vertical PDU engineered for high-efficiency power distribution in data center racks. It includes 24 x U-Lock IEC C13 and 6 x U-Lock IEC C19 outlets, with a 3P+E CA plug delivering 230V AC input and up to 10kW of power. Real-time power data is accessible via Visible Light Communication (VLC) through the Geist Mobile App—allowing monitoring down to the circuit level. This unit supports upgradeable hot-swap Interchangeable Monitoring Devices (IMD), enabling easy transition to monitored functionality without downtime. Built for vertical 0U rack installation and overcurrent protected, it’s ideal for mission-critical deployments.
| Specification | Details |
|---|---|
| Brand | Geist |
| Manufacturer | Vertiv |
| Part Number | I10140L |
| Model | MN01D4W1-30PN68-4CS15A0A10-S-A |
| PDU Type | Metered |
| Phase | Three Phase |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Power Capacity | 10 kW |
| Input Current | 35 A |
| Plug Type | 3P+E CA |
| Receptacles | 24 x U-Lock IEC 60320 C13, 6 x U-Lock IEC 60320 C19 |
| Protection | Overcurrent Protection |
| Mounting | Vertical, 0U Rack-Mountable |
| Dimensions (WxDxL) | 2" x 2" x 72" |
| Monitoring | Visible Light Communication (VLC), IMD Upgradeable |
| Warranty | 5-Year Limited |
| Shipping Weight | 17 lbs |
| Product Condition | New and Factory Fresh |
| Environmentally Friendly | Yes |
| Country of Origin | United States |
| Package Contents | PDU Unit, Vertical Mounting Bracket Kit |
