Description

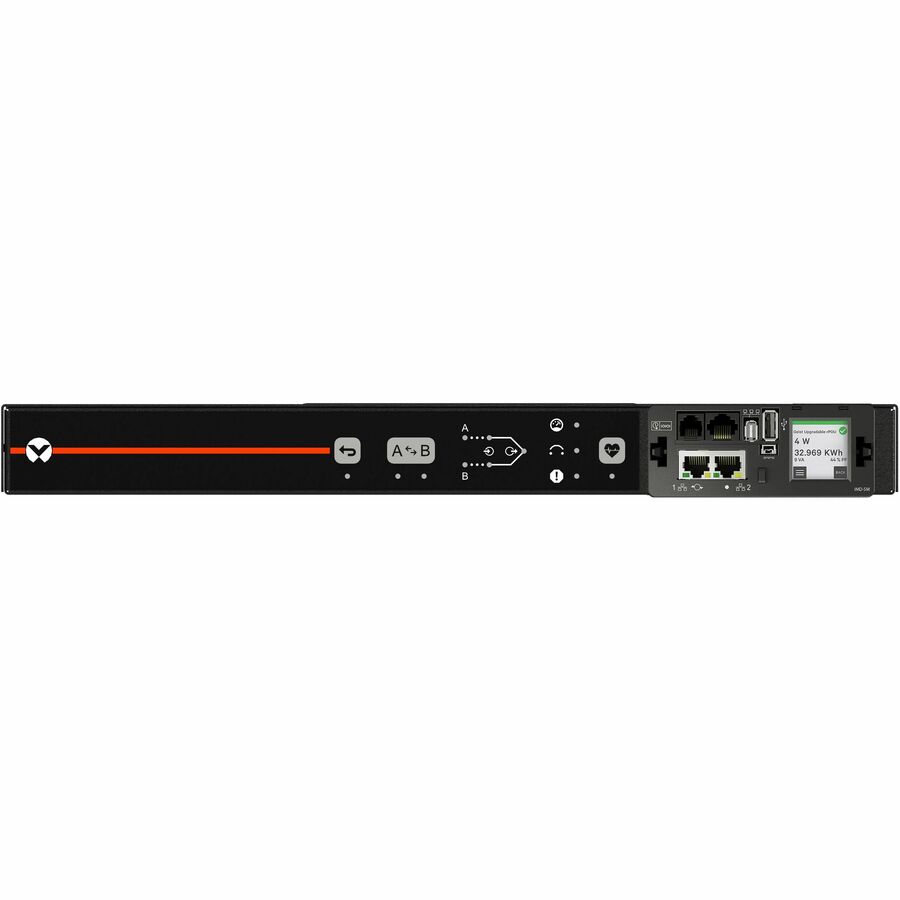

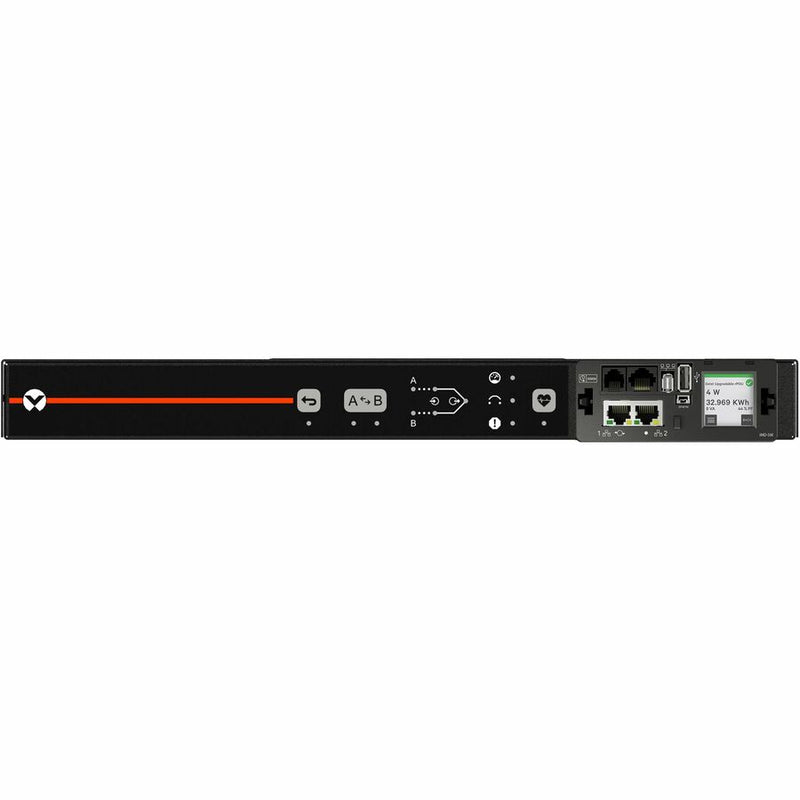

Ensure reliable power delivery to single-corded IT devices with the Vertiv VA7U21A0 Rack Transfer Switch. This intelligent rPDU offers auto power switching in under 8ms, outlet-level control, and real-time power monitoring. With dual C20 inlets and 6 combination C13/C19 outlets, it supports loads up to 3.6kW across global voltage ranges. The unit also features environmental sensor support, daisy chaining for up to 50 units, and dual Ethernet ports—making it ideal for high-availability rack environments.
| Specification | Details |
|---|---|
| Model Number | VA7U21A0 |
| Product Type | Rack Transfer Switch, Switched, Metered-by-Outlet rPDU |
| Input Power | Dual IEC C20, 100–240V, 16A or 20A |

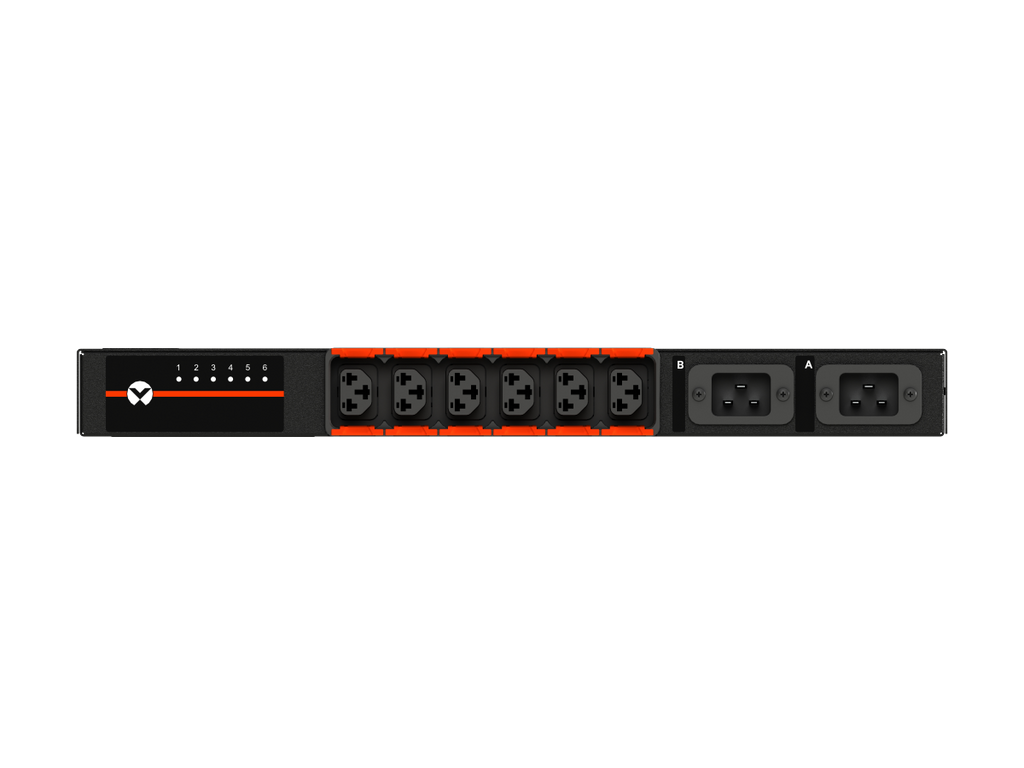

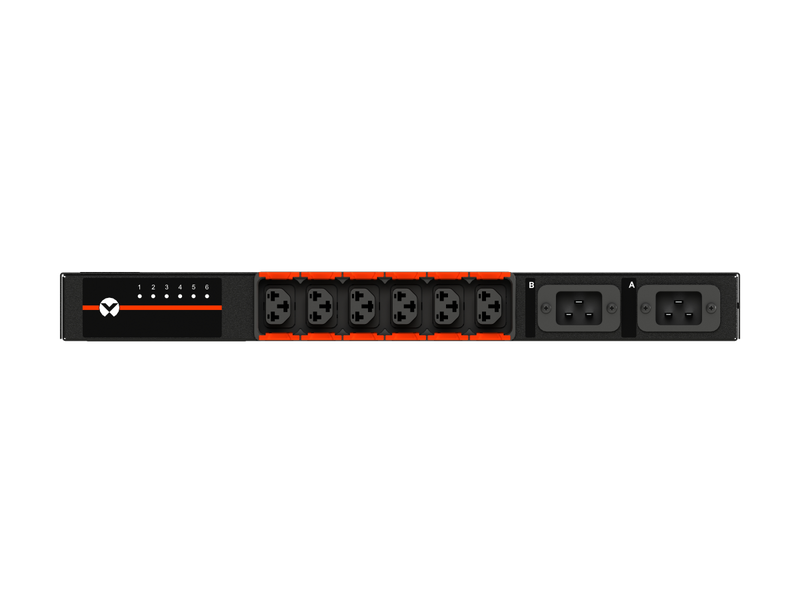

| Output Receptacles | 6x Combination C13/C19 |
| Power Capacity | 1.9kW @120V, 3.3kW @208V, 3.6kW @230V |
| Form Factor | 19" Horizontal (1U), Adjustable 4-Post or 2-Post Mounting |
| Monitoring | Input & Outlet Level (kWh, W, VA, PF, V, A), ANSI C12.1 & IEC 62053-21 |
| Switching Functionality | Automatic Transfer < 8ms, Individual Outlet Switching |
| Connectivity | Dual Gigabit Ethernet, RS232 via RJ45, USB |
| Protocols Supported | DHCP, HTTP/HTTPS, SNMP v1/v2c/v3, SSH, RADIUS, Modbus TCP, etc. |
| Environmental Monitoring | Optional sensors via RJ connection jack (supports up to 16) |
| Indicators | Front/Rear LED overlays, Auto-oriented LCD touchscreen |
| Finish | Black Powder Coat, Heavy Steel |
| Dimensions (HxWxD) | 1.72in x 17in x 18in (44mm x 432mm x 457mm) |
| Weight | 15 lbs (6.8 kg) |
| Certifications | UL/c-UL 62368-1, CE, UKCA, RoHS, FCC Part 15 Class A, RCM, China RoHS |
| Warranty | 5-Year (with registration within 120 days); otherwise 3-Year |
