Description
The Vertiv Geist VP7U21A0 is a horizontal 19" Switched rPDU with advanced outlet-level monitoring and switching. Designed for enterprise and edge IT environments, it supports 16A or 20A input power at 100–240V, delivering up to 3.6kW of load capacity. It features 12 combination C13/C19 outlets and a C20 inlet. Remote power management, environmental monitoring, and robust protocol support make it ideal for dynamic infrastructure. The upgradeable design allows seamless monitoring device upgrades to future-proof your investment.
| Attribute | Details |
|---|---|
| Part Number | VP7U21A0 |
| Power Configuration | 16A or 20A, 100-240V, 1.9kW to 3.6kW |
| Mounting | 19-inch Horizontal Rackmount (1U) |

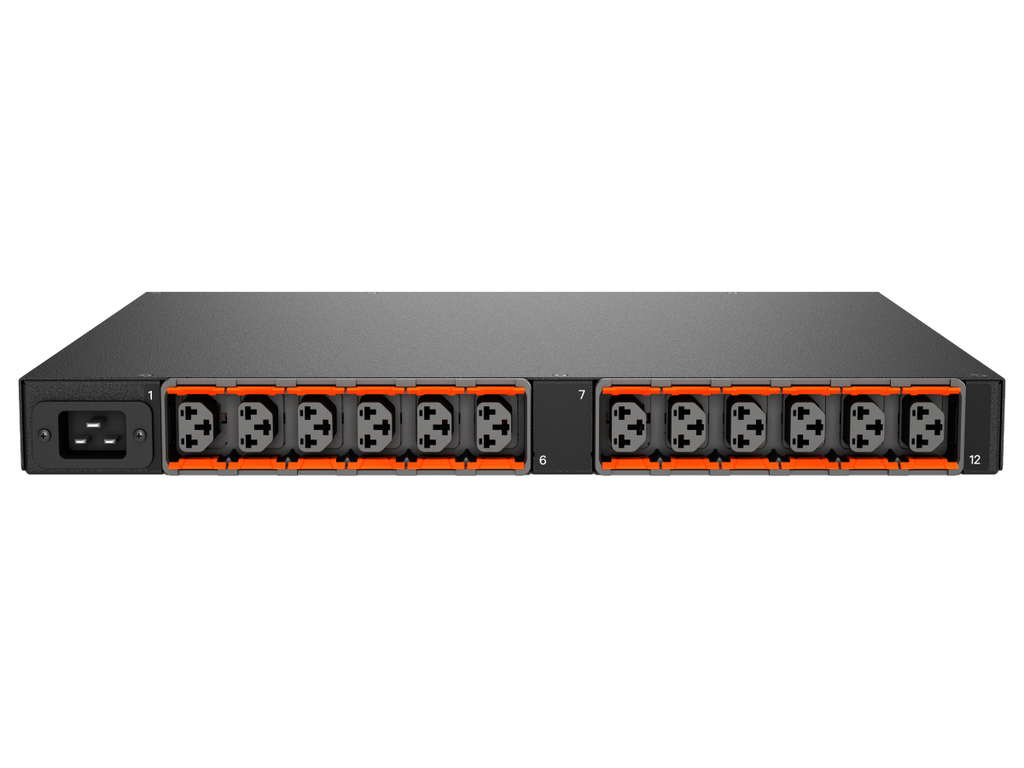

| Receptacles | 12 × Combination C13/C19 |
| Input Plug | IEC C20 (Cord sold separately) |
| Monitoring | Input & Outlet-level (kWh, W, VA, PF, V, A) |
| Switching | Individual Outlet Switching with Delays & Sequential Power-up |
| Environmental Monitoring | Optional sensors via RJ port (supports up to 16) |
| Network Connectivity | Dual Gigabit Ethernet, Daisy-chain up to 40 units |
| Protocols Supported | SNMP (v1/v2c/v3), HTTPS, SSH, RADIUS, TACACS+, Modbus TCP, and more |
| Data Access | CSV, JSON API, Syslog |

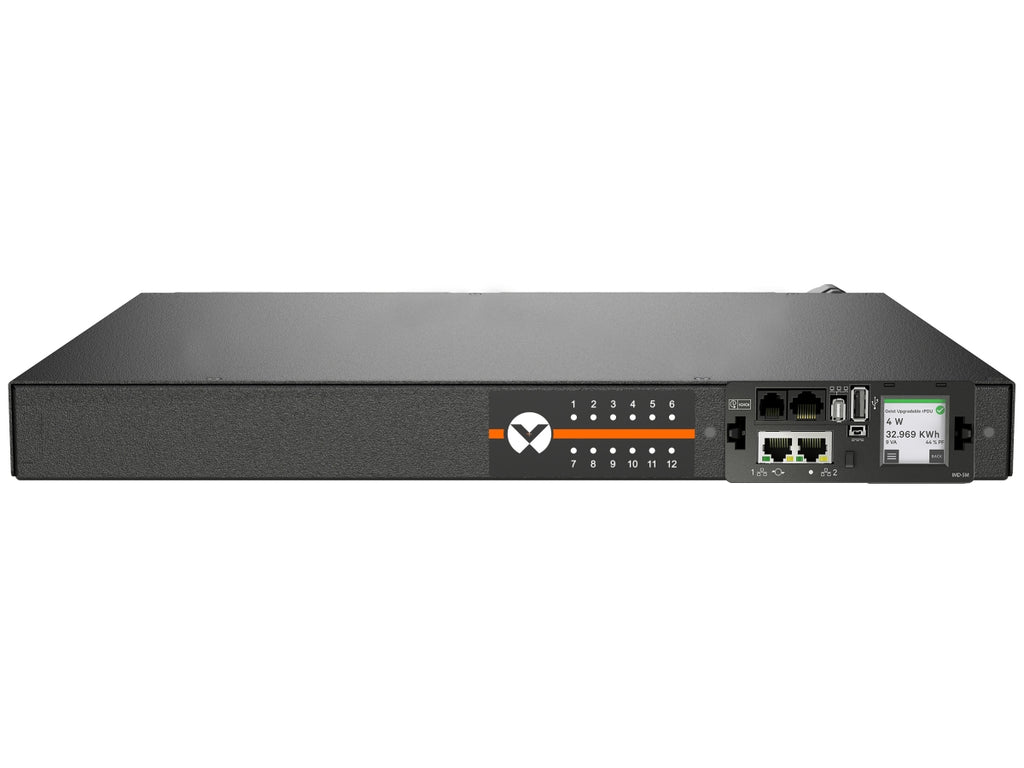

| LCD Display | Auto-oriented with high visibility |
| Indicators | 12 × LED per outlet |
| Finish | Black Powder Coat |
| Dimensions (HxWxD) | 1.72 × 17 × 12 in (44 × 432 × 305 mm) |
| Weight | 10 lbs (4.54 kg) |
| Certifications | UL, c-UL, CE, UKCA, RoHS, FCC Class A, RCM, China RoHS |
| Warranty | 5-year limited (with registration), otherwise 3 years |
