Description

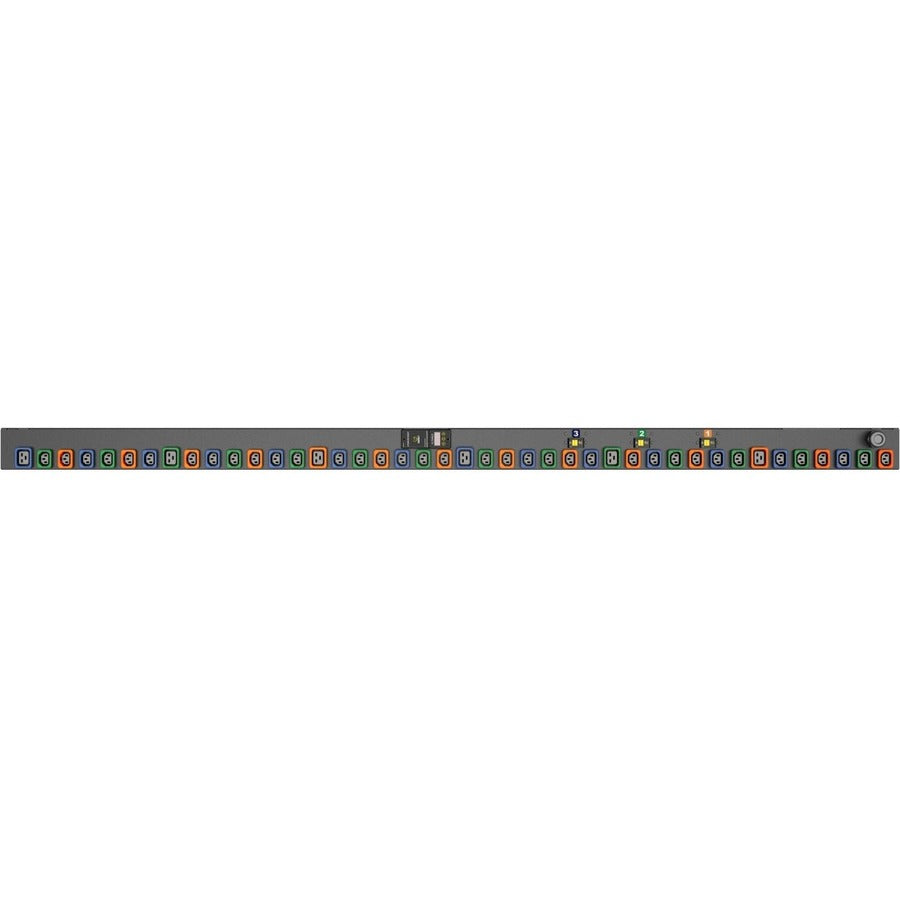

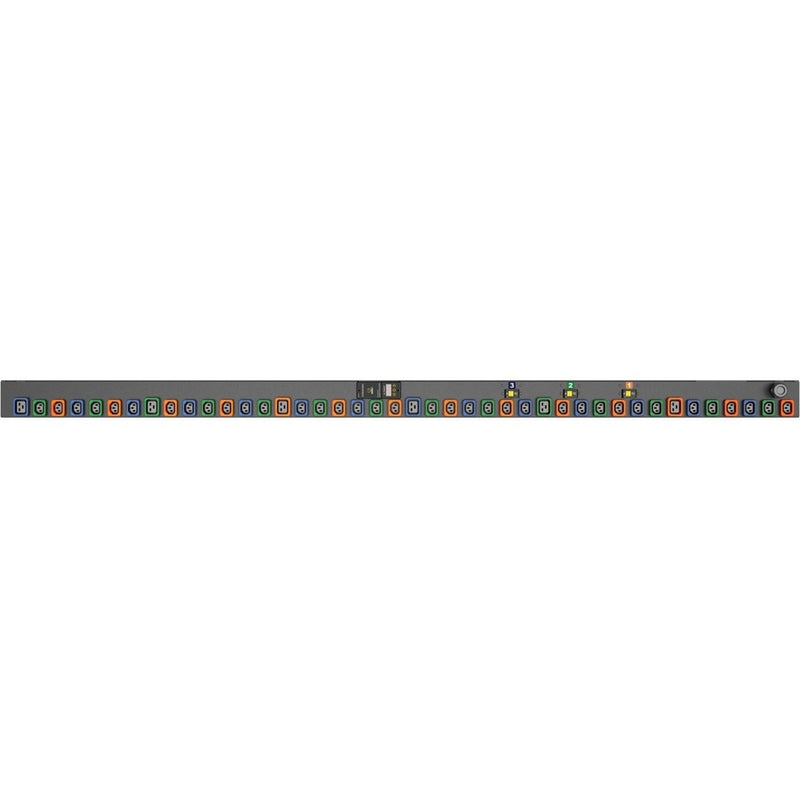

The Vertiv Geist I10146L is a metered 42-outlet vertical PDU designed to deliver reliable and intelligent power distribution in high-density IT environments. With 36 U-Lock IEC C13 and 6 U-Lock IEC C19 outlets, this 0U rack-mountable unit supports a 3P+E CA plug and 230V AC input, handling up to 10kW at 35A.
Real-time monitoring is made simple with Visible Light Communication (VLC) technology, which transmits power data from the LED display directly to a handheld device via the Geist Mobile App. The unit also supports Vertiv’s upgradeable hot-swap Interchangeable Monitoring Device (IMD), allowing seamless transformation from metered to monitored PDU—no downtime required. Built for performance, efficiency, and scalability.
| Specification | Details |
|---|---|
| Brand | Vertiv Geist |
| Manufacturer | Vertiv |
| Part Number | I10146L |
| Model | MN01D5W1-42PZ68-4CS15A0A10-S-A |
| PDU Type | Metered |
| Phase | Three Phase |
| Input Plug | 3P+E CA |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Input Current | 35 A |
| Power Capacity | 10 kW |
| Receptacles | 36 x U-Lock IEC 60320 C13, 6 x U-Lock IEC 60320 C19 |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Dimensions (WxDxL) | 3.5" x 2" x 75" |
| Weight | 19 lbs. |
| Monitoring | Metered with |
