Description

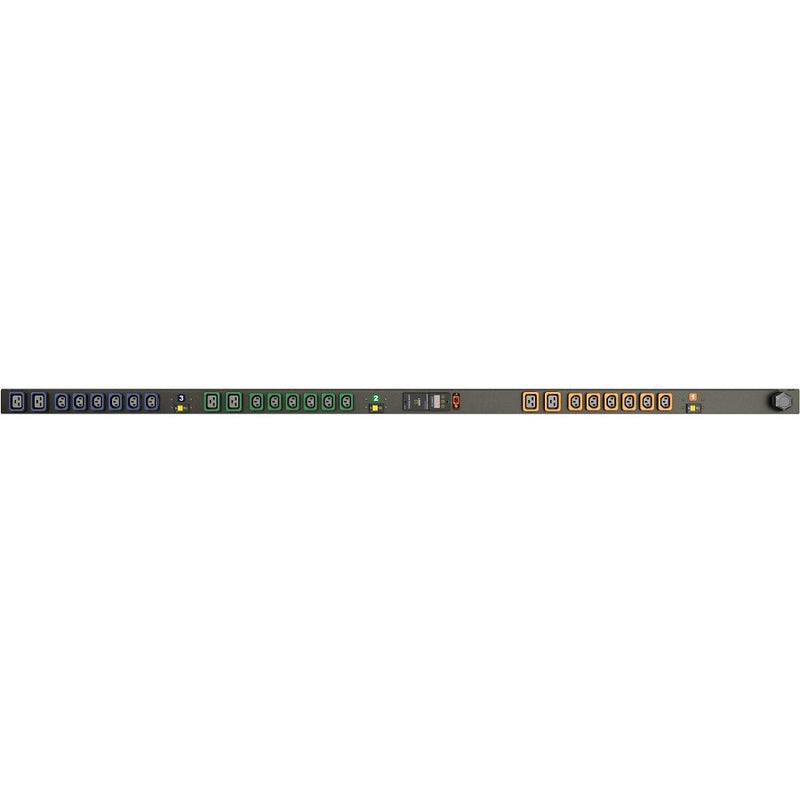

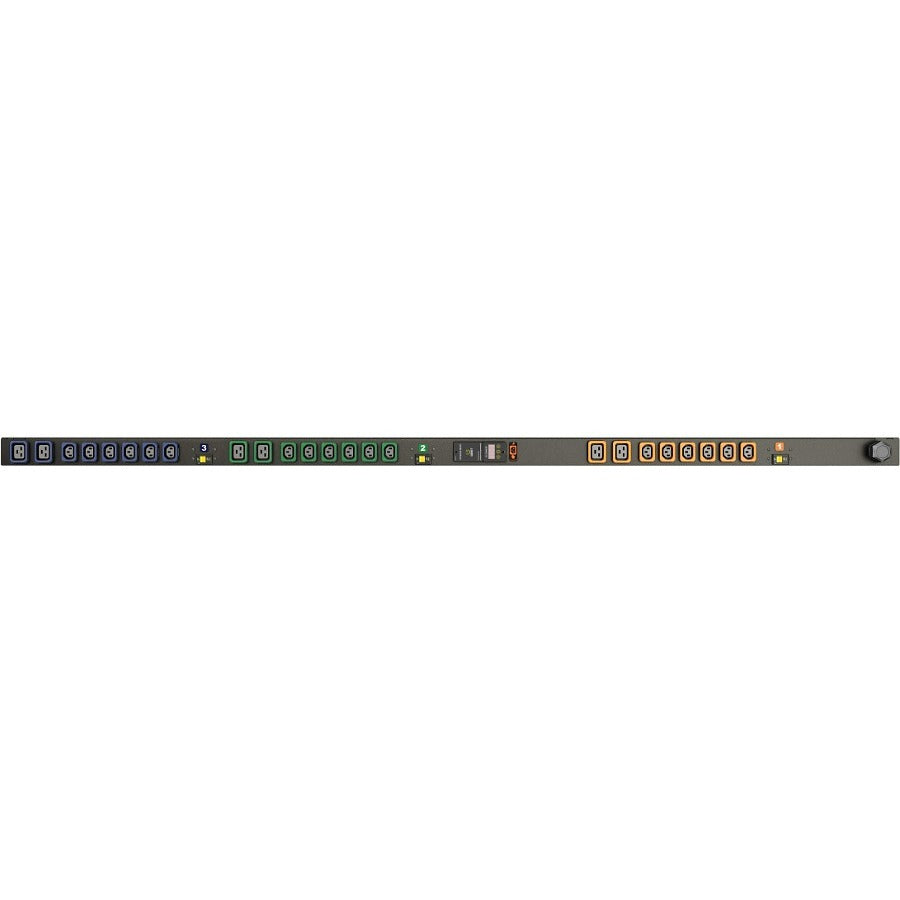

The Geist I10080L is a 24-outlet vertical metered PDU engineered for high-performance power distribution in data centers. Equipped with 18 U-Lock IEC C13 and 6 U-Lock IEC C19 receptacles, this unit supports a 2P+E (IP44) plug and delivers a robust 9.9kW at 230V AC. With support for hot-swappable Interchangeable Monitoring Devices (IMD), users can seamlessly upgrade to a monitored configuration without downtime.
Using Geist’s Visible Light Communication (VLC) technology, the PDU transmits real-time power data from its LED display to the Geist Mobile App—providing critical insight down to the phase and circuit level. This 0U, rack-mountable, RoHS-compliant PDU is ideal for high-density vertical rack deployments requiring metered monitoring, overload protection, and space-saving design.
| Specification | Details |
|---|---|
| Brand | Geist |
| Manufacturer | Vertiv |
| Part Number | I10080L |
| Model | MN01D8W1-24PH68-6PS6B0A10-S |
| Product Type | Metered PDU |
| Phase | Three Phase |
| Plug Type | 2P+E (IP44) |
| Input Voltage | 230V AC |
| Output Voltage | 208V AC |
| Input Current | 60A |
| Power Capacity | 9900W |
| Receptacle Type | 18 × U-Lock IEC C13, 6 × U-Lock IEC C19 |
| Mount Type | Vertical, Rack-mountable (0U) |
| Dimensions (W x D x L) | 2.3" x 3.4" x 72" |
| Protection | Overcurrent Protection |
| Communication | Visible Light Communication (VLC) |
| Upgradeable | Yes (Hot-swap IMD support) |
| RoHS Compliant | Yes |
| Package Includes | PDU, Vertical Mounting Bracket Kit |
| Warranty | 5-Year Limited Warranty |
| Shipping Weight | 28 lbs |
| Condition | New and Factory Fresh |
| Country of Origin | United States |
