Description

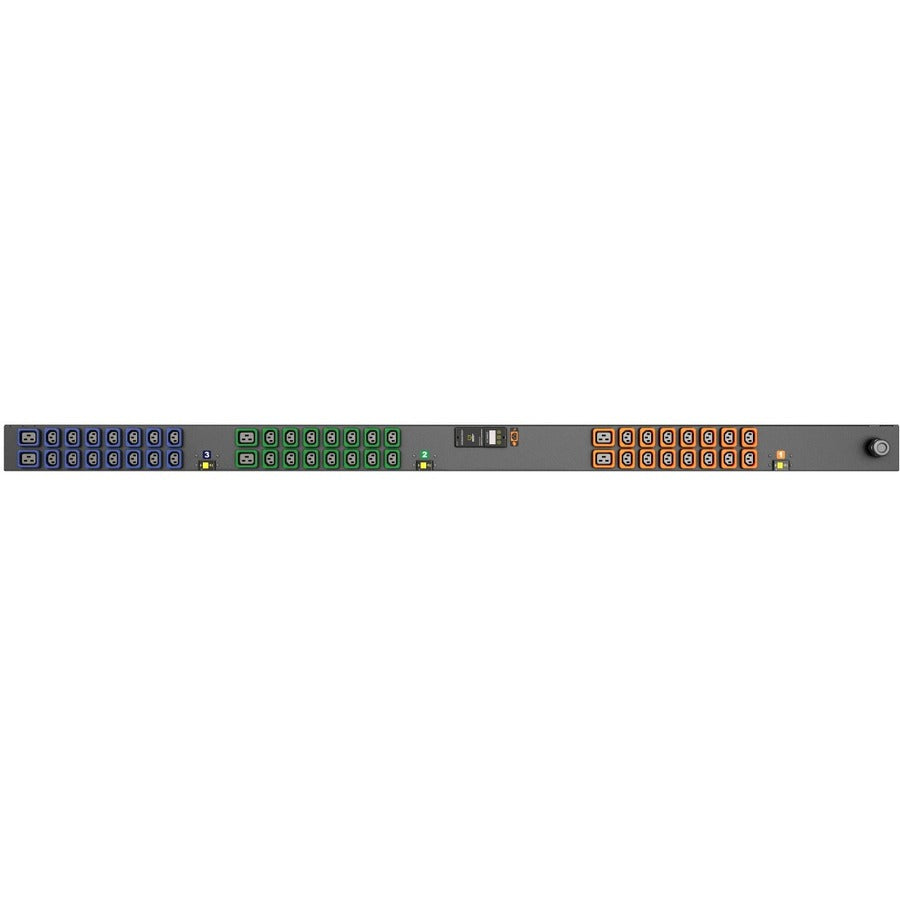

The Vertiv Geist I10098L is a 48-outlet vertical metered PDU engineered for high-density rack environments. Equipped with 42 locking IEC C13 and 6 locking IEC C19 outlets, it delivers reliable 3-phase power distribution at 230V AC input and 208V AC output, supporting up to 9.9 kW.
This unit features a 2P+E (IP67) plug and leverages Visible Light Communication (VLC) technology to transmit real-time power usage data directly to your handheld device via the Geist Mobile App. With upgradeable hot-swap IMD support, users can easily convert this PDU from Metered to Monitored without service interruptionāideal for evolving data center needs.
Designed with 0U vertical rack-mountable form factor, it comes complete with a vertical mounting bracket kit and is backed by a 5-year Vertiv warranty.
| Specification | Details |
|---|---|
| Brand | Geist |
| Manufacturer | Vertiv |
| Part Number | I10098L |
| Model | MN01D9W1-48MI18-6PS6D0A10-S |
| Product Type | Metered PDU |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Power Rating | 9,900 Watts |
| Input Current | 60 Amps |
| Plug Type | 2P+E (IP67) |
| Receptacles | 42 x Lock IEC 60320 C136 x Lock IEC C19 |
| Form Factor | 0U Vertical, Rack-mountable |
| Dimensions (WxDxL) | 3.8" x 3.4" x 72" |
| Monitoring | Metered with Upgradeable IMD (hot-swap) |
| Communication | Visible Light Communication (VLC) |
| Protection | Overcurrent Protection |
| Mounting Kit | Included |
| Environmentally Friendly | Yes |
| Country of Origin | United States |
| Warranty | 5-Year Limited |
| Product Condition | New and Factory Fresh |
| Shipping Weight | 30 lbs |
