Description

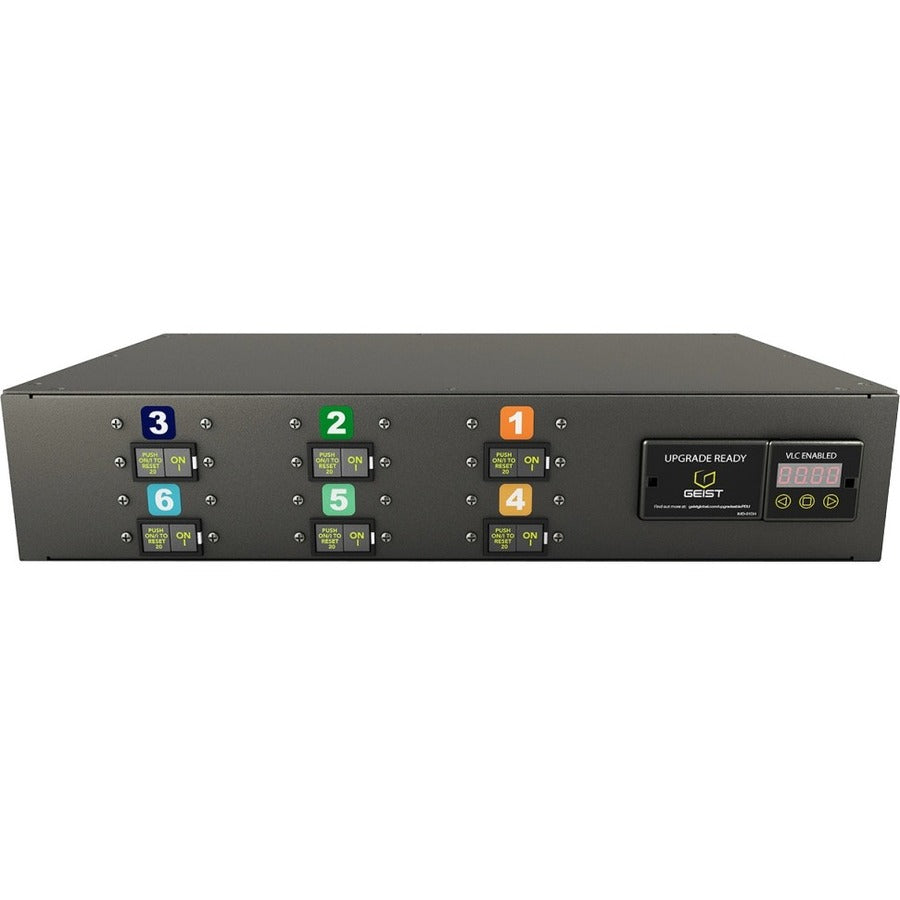

The Vertiv Geist I10093L is a metered horizontal PDU engineered to deliver efficient three-phase power distribution in high-density environments. Equipped with 15 locking receptacles (3 x C13 and 12 x C19), it supports up to 17.2 kW of power at 230V AC. Real-time power usage metrics are transmitted via Visible Light Communication (VLC) to the Geist Mobile App, providing granular insights to prevent overloads and optimize load balance. Designed for horizontal rack-mount installations (2U), this unit features a 60A IEC 60309 3P+E plug and upgradeable hot-swap IMD support—allowing seamless transformation to a monitored unit without downtime.
| Specification | Details |
|---|---|
| Brand | Geist |
| Manufacturer | Vertiv |
| Part Number | I10093L |
| Model | MN01DDR1-15P3B8-6PS15D0H10-S |
| PDU Type | Metered |
| Phase | Three Phase |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Power Capacity | 17.2 kW |
| Input Current | 60 A |
| Plug Type | IEC 60309 3P+E 60A |

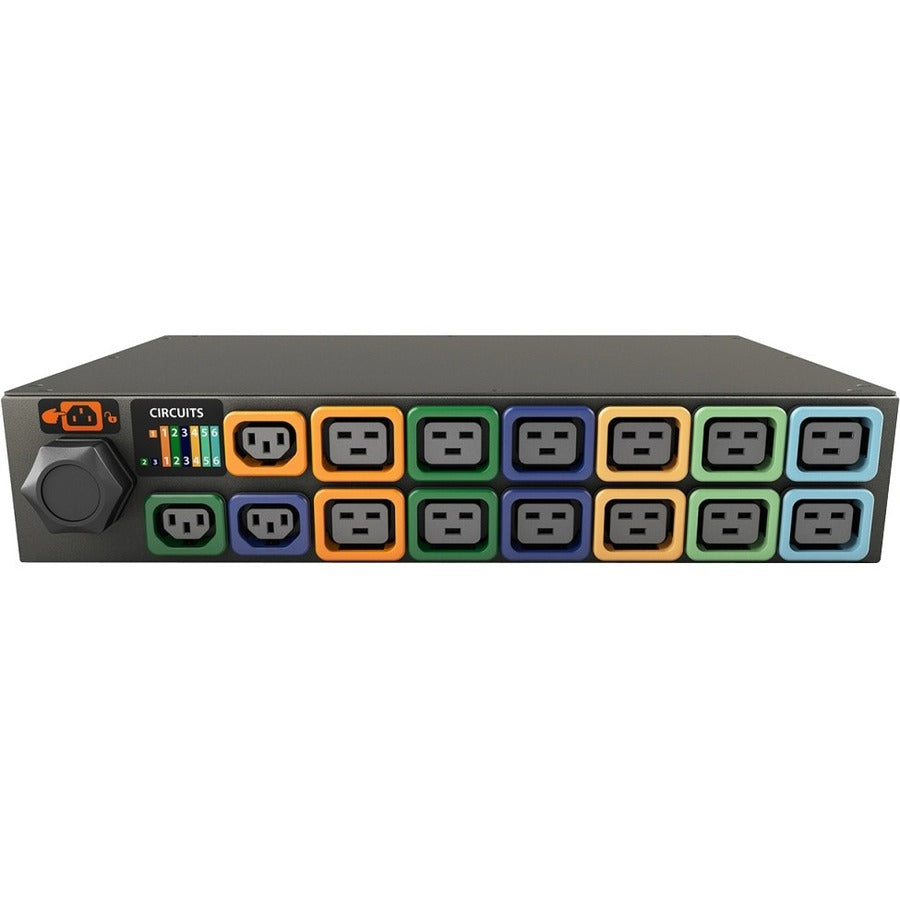

| Receptacles | 3 x IEC C13 (U-Lock), 12 x IEC C19 (U-Lock) |
| Form Factor | Horizontal Rack-Mount |
| Rack Height | 2U |
| Dimensions (HxWxD) | 3.4" x 17" x 12" |
| Mounting | Rack-mountable |
| Protection | Overcurrent, Overload |
| Monitoring | Visible Light Communication (VLC), IMD-ready |
| Warranty | 5-Year Limited |
| Environment | RoHS Compliant, Environmentally Friendly |
| Included | Mounting Brackets, PDU Unit |
| Weight (Shipping) | 29 lbs |
| Country of Origin | United States |
