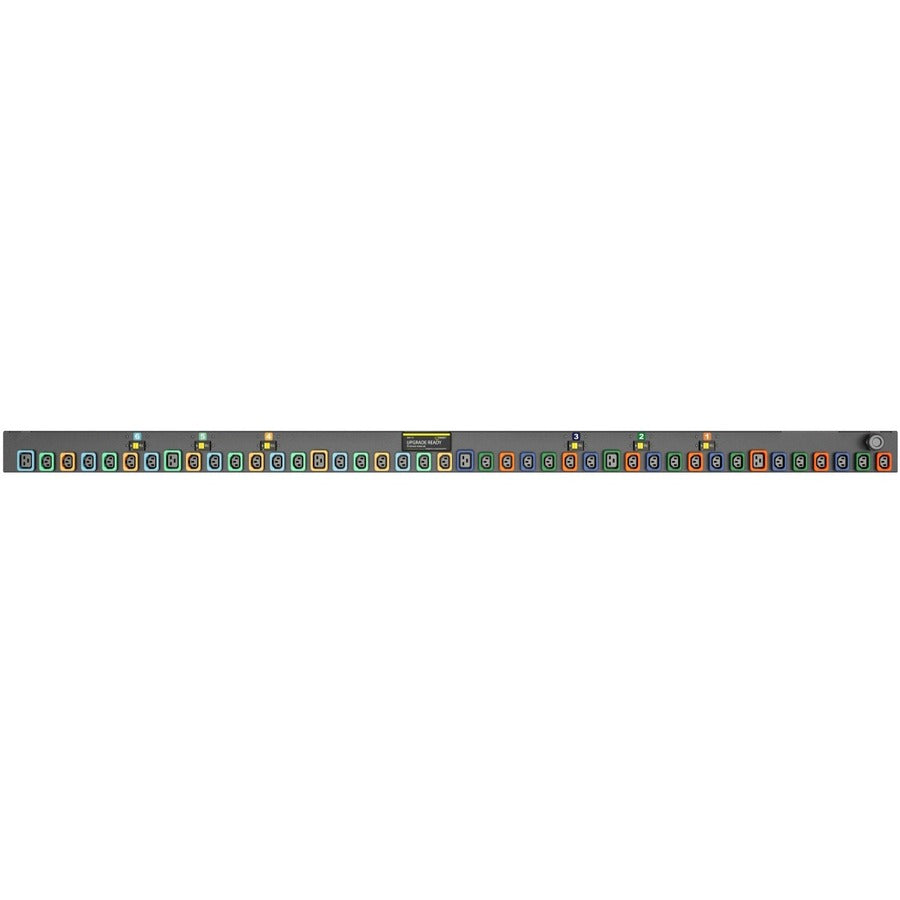

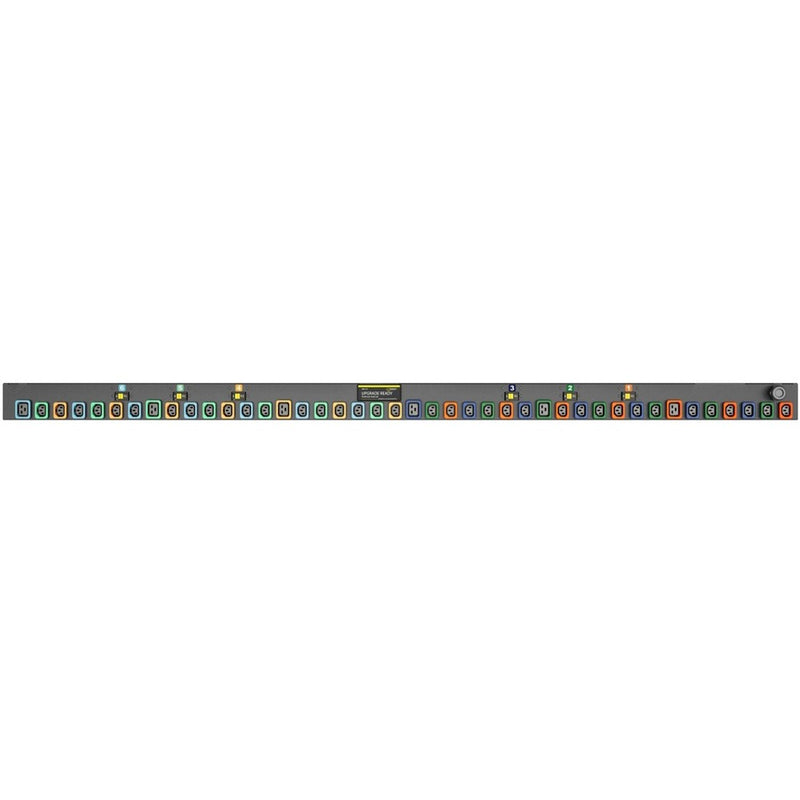

The Vertiv Geist I10137L is a 42-outlet basic vertical PDU engineered for reliable rack-level power distribution in high-density environments. It features 36 U-Lock IEC C13 and 6 U-Lock IEC C19 receptacles, powered by a 3P+N+E (IP44) input plug with 230V–415V AC support at 30A. With a robust 16.60kW power capacity and built-in overcurrent protection, this unit is designed for mission-critical uptime.
Geist’s upgradeable hot-swap technology allows for seamless conversion from a basic to a metered or monitored PDU by adding an Interchangeable Monitoring Device (IMD)—without downtime. Designed for vertical rack mounting, this 1U unit ships with a bracket kit and is backed by a 5-year warranty.
| Specification | Details |
|---|---|
| Brand | Geist |
| Manufacturer | Vertiv |
| Part Number | I10137L |
| Model | MN01X5W1-42PZ63-3PS56B0A10-S-A |
| PDU Type | Basic |
| Input Plug Type | 3P+N+E (IP44) |
| Input Voltage | 230V AC / 415V AC |
| Output Voltage | 230V AC |
| Input Current | 30A |
| Power Capacity | 16.60 kW |
| Receptacle Types | 36 x U-Lock IEC 60320 C13, 6 x U-Lock IEC C19 |
| Mounting Orientation | Vertical |
| Rack Height | 1U |
| Mount Type | Rack-mountable |
| Dimensions (WxDxL) | 3.5" x 2" x 75" |
| Protection | Overcurrent Protection |
| Environmentally Friendly | Yes |
| Package Includes | PDU Unit, Vertical Mounting Bracket Kit |
| Warranty | 5-Year Limited Warranty |
| Country of Origin | United States |
| Shipping Weight | 19 lbs |
| Condition | New and Factory Fresh |
