Description

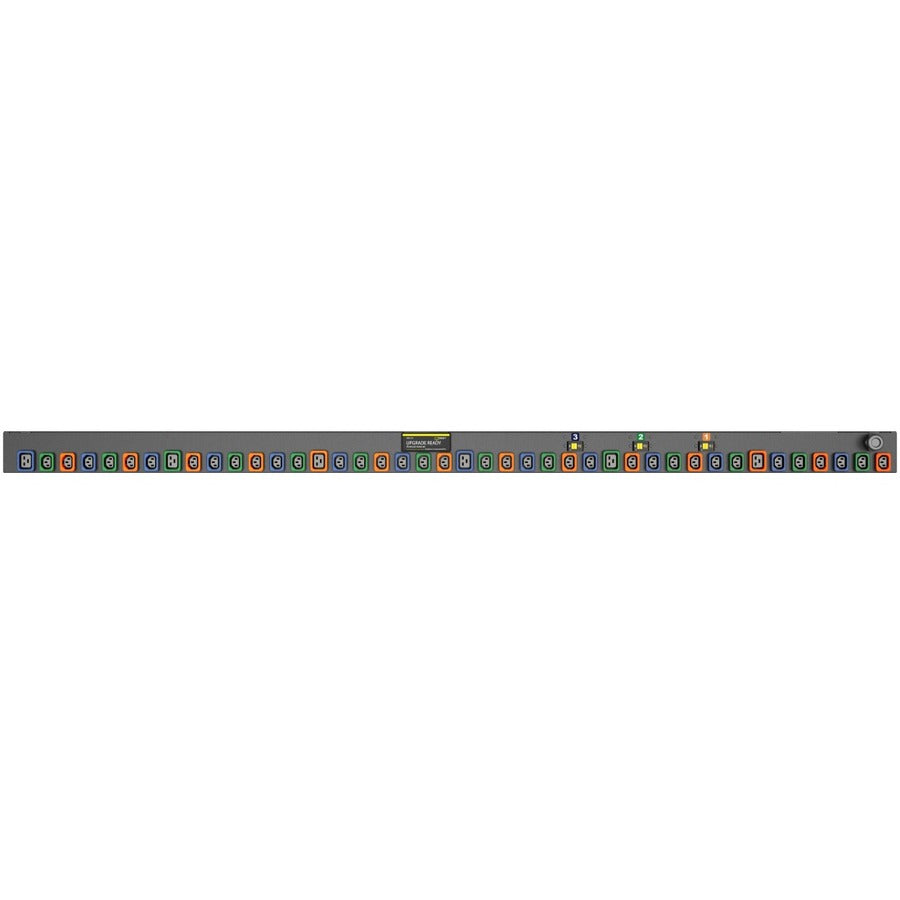

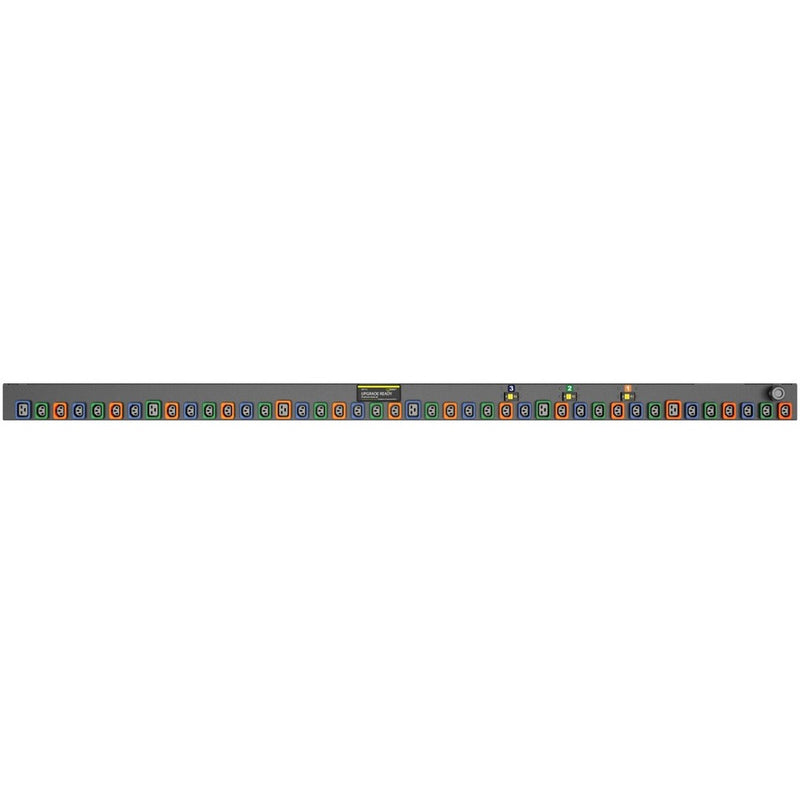

The Vertiv Geist I10134L is a basic vertical rack PDU designed for reliable power distribution in high-density data environments. Featuring 36 U-Lock IEC C13 and 6 U-Lock IEC C19 outlets, it delivers up to 10 kW of power through a 3P+E CA plug with 230V AC input. Its 0U form factor maximizes rack space, while the integrated overcurrent protection enhances safety. With Geist’s upgradeable hot-swap IMD technology, this unit can be easily transformed into a metered or monitored PDU without interrupting power—ideal for evolving IT infrastructure needs.
| Specification | Details |
|---|---|
| Brand | Geist |
| Manufacturer | Vertiv |
| Part Number | I10134L |
| Model | MN01X5W1-42PZ68-4CS15A0A10-S-A |
| PDU Type | Basic |
| Phase | Three Phase |
| Input Plug | 3P+E CA |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Input Current | 35 A |
| Power Rating | 10 kW |
| Receptacles | 36 x U-Lock IEC C13, 6 x U-Lock IEC C19 |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable (0U) |
| Dimensions (WxDxL) | 3.5" x 2" x 75" |
| Weight | 19 lbs. |
| Protection | Overcurrent Protection |
| Upgradeable IMD | Yes (Hot-swap capable) |
| Environmental | Environmentally Friendly |
| Origin | United States |
| Warranty | 5-Year Limited Warranty |
| Included Accessories | Vertical Mounting Bracket Kit |
| Product Condition | New and Factory Fresh |
