Description

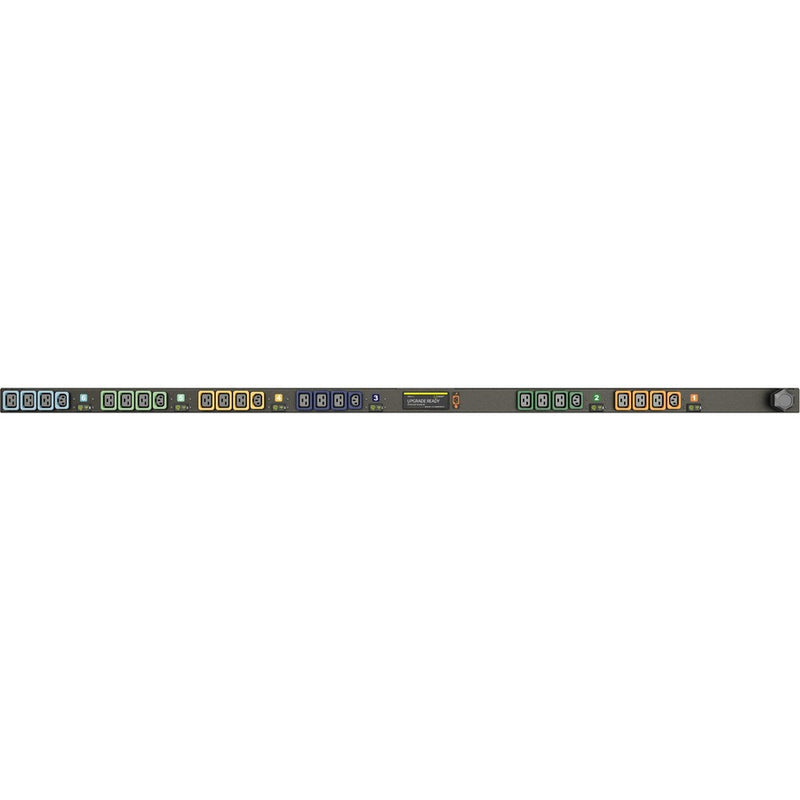

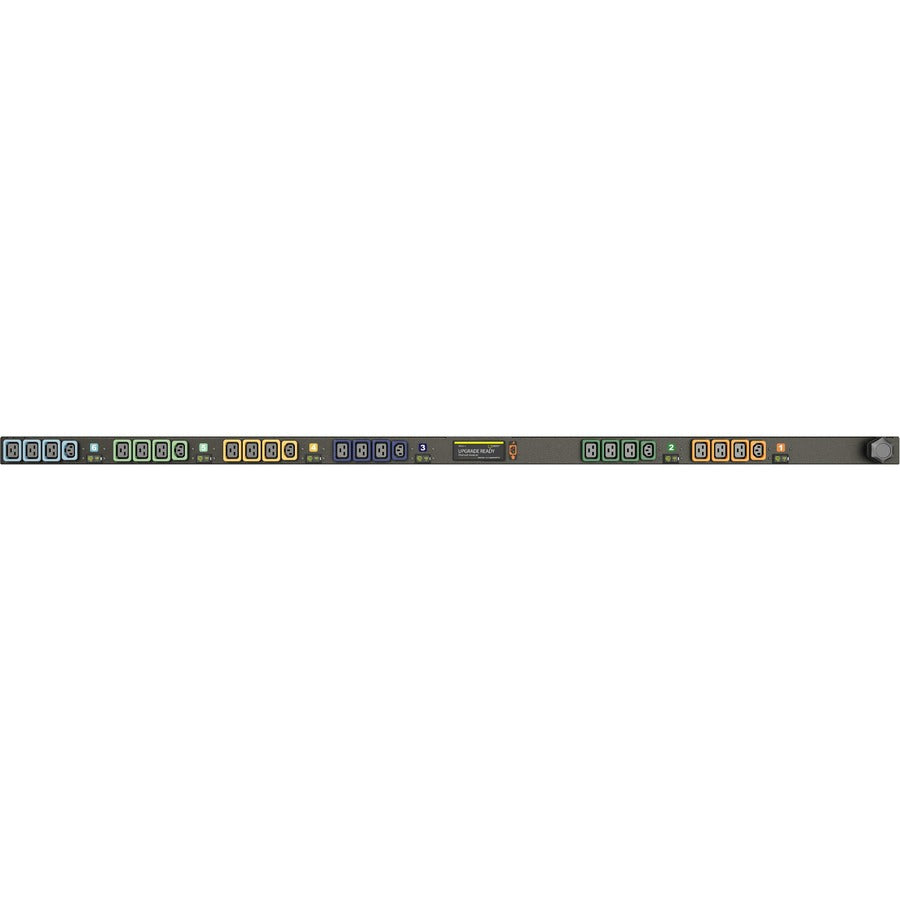

The Vertiv Geist I10046L PDU delivers reliable power distribution in a rack-mountable 0U vertical format, ideal for data centers and high-density IT environments. Equipped with 24 U-Lock outlets (6 x C13 and 18 x C19), it ensures secure, consistent connections and helps prevent accidental disconnection. This basic PDU features a 3P+E (IP67) plug, 230V input, and supports up to 17.2kW of power at 60A. Designed with upgradeable hot-swap Interchangeable Monitoring Device (IMD) technology, it allows future expansion to metered or monitored configurations without disruption. Overcurrent protection, RoHS compliance, and a robust 5-year warranty make this a smart, scalable power solution.
| Specification | Details |
|---|---|
| Brand | Vertiv Geist |
| Manufacturer | Vertiv |
| Part Number | I10046L |
| Model | MN01X8W1-24P6H8-6PS15D0A10-S |
| Product Type | Basic Rack PDU |
| Mounting Orientation | Vertical |
| Rack Height | 0U |
| Mount Type | Rack-mountable |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Input Current | 60 A |
| Power Capacity | 17.2 kW |
| Phase | Three Phase |
| Plug Type | 3P+E (IP67) |
| Receptacles | 6 x U-Lock IEC 60320 C13, 18 x U-Lock IEC 60320 C19 |
| Protection Type | Overcurrent Protection |
| Width | 2.3 in |
| Depth | 3.4 in |
| Length | 72 in |
| Environment Compliance | RoHS |
| Warranty | 5-Year Limited Warranty |
| Product Condition | New and Factory Fresh |
| Shipping Weight | 30 lbs |
| Included Accessories | Vertical Mounting Bracket Kit |
| Country of Origin | United States |
