Description

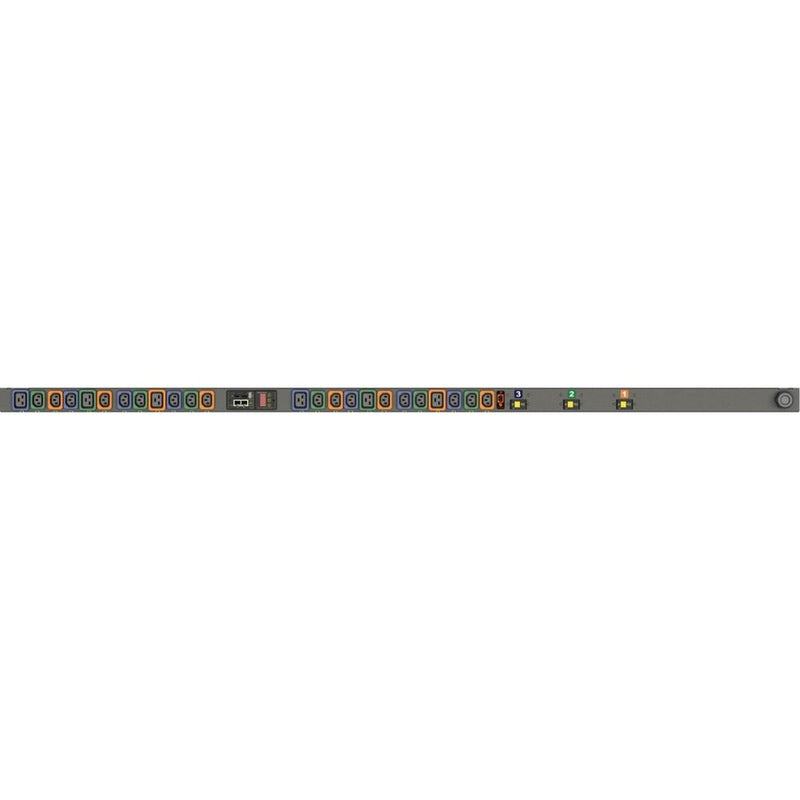

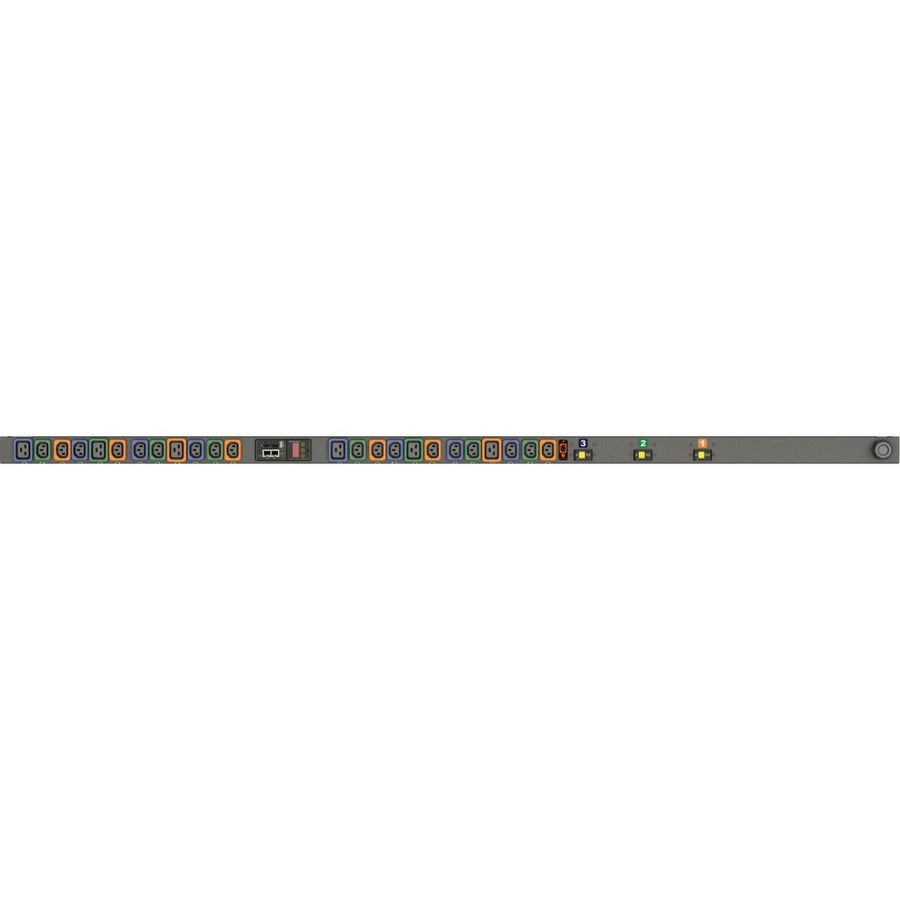

The Vertiv Geist NR30040L is a high-performance monitored PDU featuring 24 locking IEC outlets (18x C13, 6x C19) for secure, reliable power distribution in demanding IT environments. With support for IP-based monitoring, it provides real-time outlet-level metrics and environmental sensor data via Visible Light Communication (VLC) and the Geist Mobile App. The unit is rack-mountable in a vertical 0U orientation, includes overcurrent protection, and features upgradeable hot-swap IMD technology for future-proof flexibility. Built to support enterprise-grade power distribution, it operates at 230V AC and delivers up to 10kW of output.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Geist |
| Model | MNR3EGB1-24PH68-4CS15A0A10-S-A |
| Part Number | NR30040L |
| Product Type | Monitored PDU |
| Input Voltage | 230V AC (Range: 200V–240V) |
| Output Voltage | 208V AC |
| Input Plug Type | 3P+E CA |
| Input Current | 35A |
| Output Receptacles | 18 x Locking IEC C13, 6 x Locking IEC C19 |
| Power Rating | 10 kW |
| Form Factor | Vertical, Rack-Mountable (0U) |
| Dimensions (W x D x L) | 2" x 2.6" x 66.3" |
| Network Port | RJ-45 |
| Communication Protocols | DHCP, HTTP/S, SNMP v1/v2c/v3, Syslog, SSH, NTP, LDAP, IPv4/6 |
| Remote Switching | Yes |
| Protection Type | Overcurrent Protection |
| Warranty | 5-Year Limited |
| Shipping Weight | 20 lbs |
| Country of Origin | United States |
| Package Includes | PDU Unit, Vertical Mounting Bracket Kit |
