Description

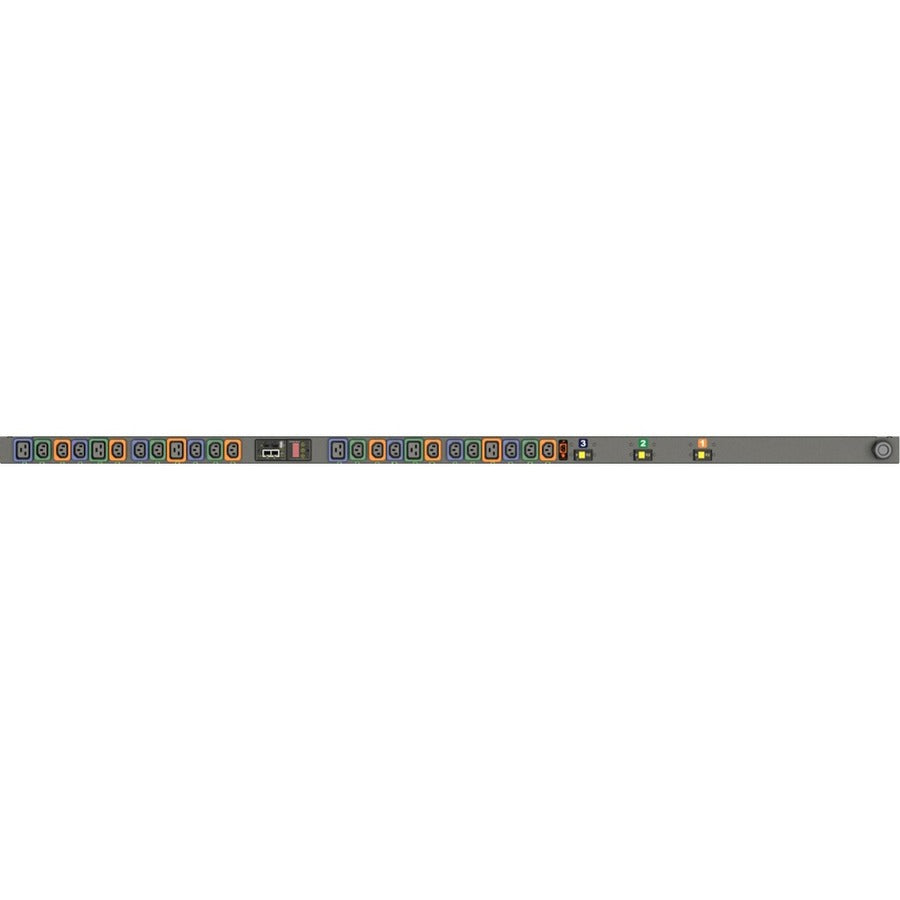

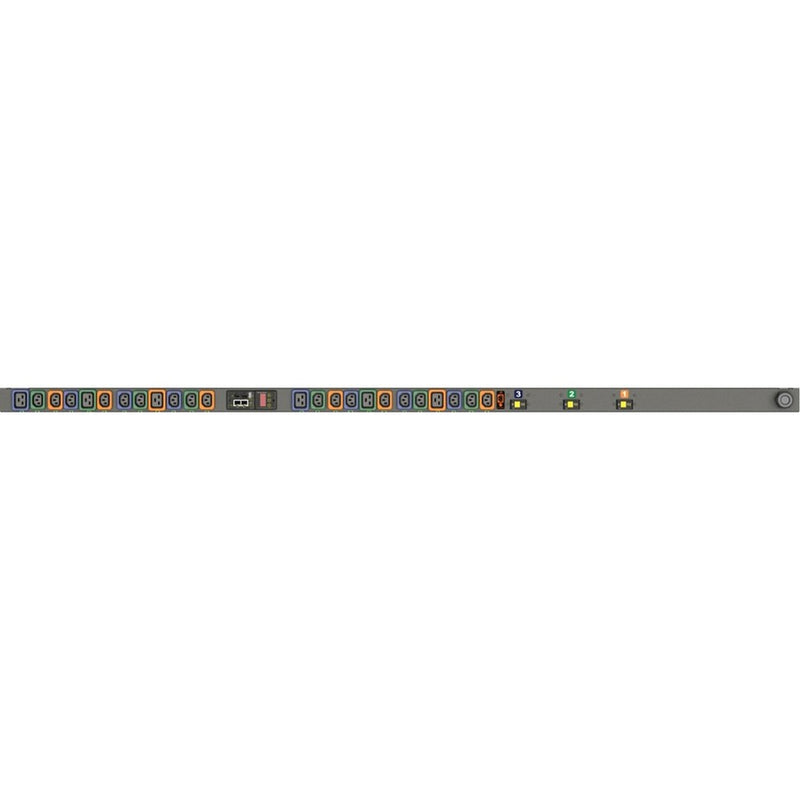

The Vertiv Geist NS30026L is a switched rack PDU designed for advanced power management in high-density data center environments. Equipped with 24 individually controlled outlets (18 x C13 and 6 x C19), this unit provides IP-based monitoring, real-time environmental sensor data, and remote outlet switching.
It uses Visible Light Communication (VLC) to transmit energy data from the LED display to a mobile device through the Geist Mobile App, delivering phase and circuit-level power analytics. The Geist Upgradeable hot-swap IMD architecture ensures long-term value, allowing for future monitoring tech upgrades without downtime.
Built for durability, the NS30026L supports three-phase 230V input and a robust 8600W output capacity. Vertical 0U rack-mountable and environmentally friendly, it includes a 5-year limited warranty and ships factory fresh.
| Specification | Details |
|---|---|
| Brand | Geist |
| Manufacturer | Vertiv |
| Model | MNS3EGB1-24PH68-3TL15A0A10-S-A |
| Part Number | NS30026L |
| PDU Type | Switched |
| Input Plug Type | NEMA L15-30P |
| Input Voltage | 230V AC (220V–240V AC range) |
| Output Voltage | 240V AC |
| Input Current | 30A |
| Power Capacity | 8600 Watts |
| Outlets | 18 x U-Lock IEC 60320 C13, 6 x U-Lock IEC 60320 C19 |
| Phase | Three Phase |
| Mounting | Vertical, 0U, Rack-mountable |
| Network Port | RJ-45 |
| Remote Outlet Switching | Yes |
| Management Protocols | DHCP, HTTP/HTTPS, SNMP (v1/v2c/v3), Syslog, SSH, NTP, LDAP, IPv4/IPv6, RSTP, SMTP |
| Protection | Overcurrent Protection |
| Environment Monitoring | Supported via Geist sensors |
| Dimensions (WxDxL) | 2" x 2.6" x 66.3" |
| Weight | 22 lbs |
| Environmentally Friendly | Yes |
| Warranty | 5-Year Limited Warranty |
| Country of Origin | United States |
| Package Contents | PDU, Vertical Mounting Bracket Kit |
