Description

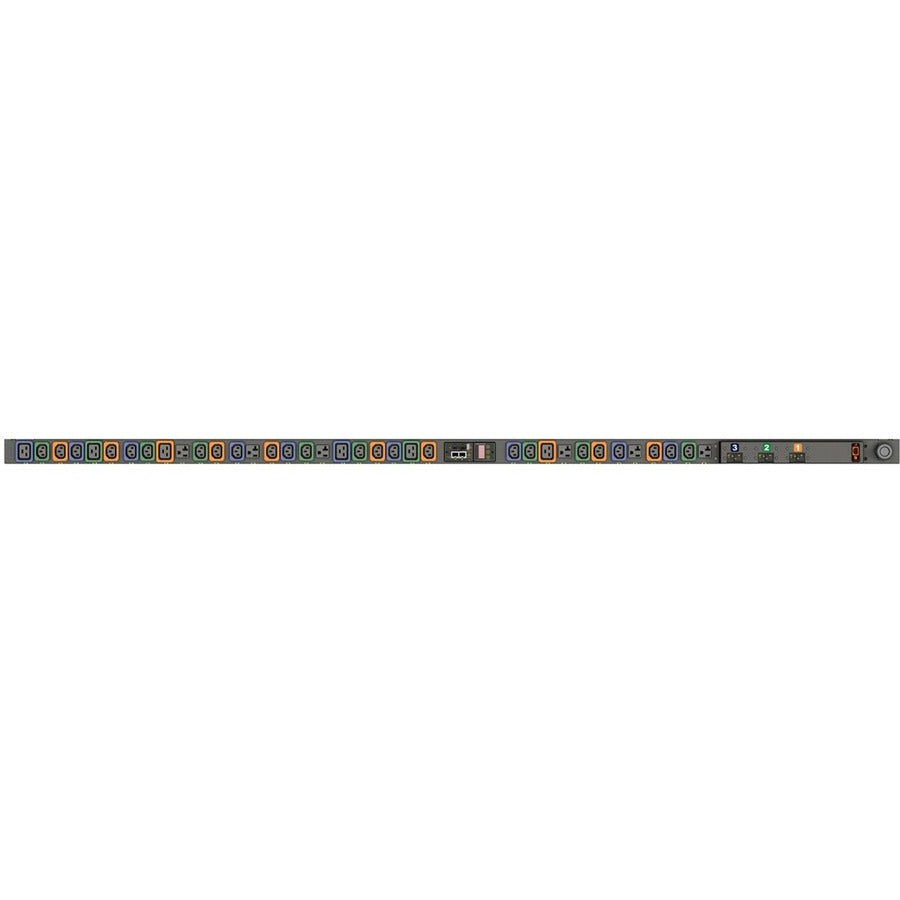

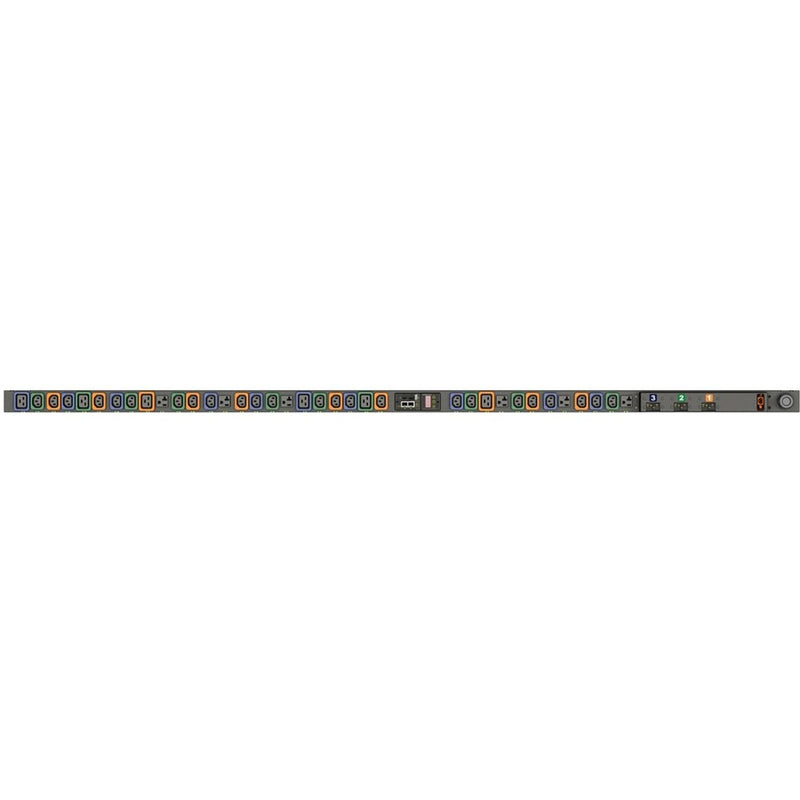

The Vertiv Geist NS30020L is a switched rack PDU offering 36 outlets and advanced IP-based monitoring with remote outlet control. Ideal for data centers and enterprise IT environments, it supports real-time power usage insights down to the phase and circuit level. With integrated Visible Light Communication (VLC), data can be transmitted from the LED display directly to your mobile device via the Geist Mobile App. The Geist Upgradeable architecture allows hot-swap upgrades through the Interchangeable Monitoring Device (IMD) module. Designed for vertical rack installation (0U), this unit delivers a powerful, scalable solution with a NEMA L21-30P plug and multi-format locking outlets.
| Specification | Details |
|---|---|
| Brand | Geist by Vertiv |
| Model | MNS3EGW1-36MT79-3TL21A0A10-S-A |
| Part Number | NS30020L |
| PDU Type | Switched |
| Phase | Three Phase |
| Input Plug Type | NEMA L21-30P |
| Receptacles | 24 × U-Lock IEC C13, 6 × U-Lock IEC C19, 6 × NEMA 5-20R |
| Input Voltage | 120V AC / 230V AC |
| Output Voltage | 208V AC |
| Power Rating | 8600 Watts |
| Input Current | 30A |
| Network Ports | 1 × RJ-45 |
| Management Protocols | HTTP, HTTPS, SNMP, SSH, Syslog, etc. |
| Remote Outlet Switching | Yes |
| Mounting | Rack-mountable, Vertical (0U) |
| Dimensions | 2" W × 2.6" D × 72" L |
| Weight (Shipping) | 22 lbs |
| Environmental Sensors | Supported via optional add-ons |
| Compliance | RoHS, Environmentally Friendly |
| Warranty | 5-Year Limited Warranty |
| Package Includes | PDU Unit, Vertical Mounting Bracket Kit |
