Description

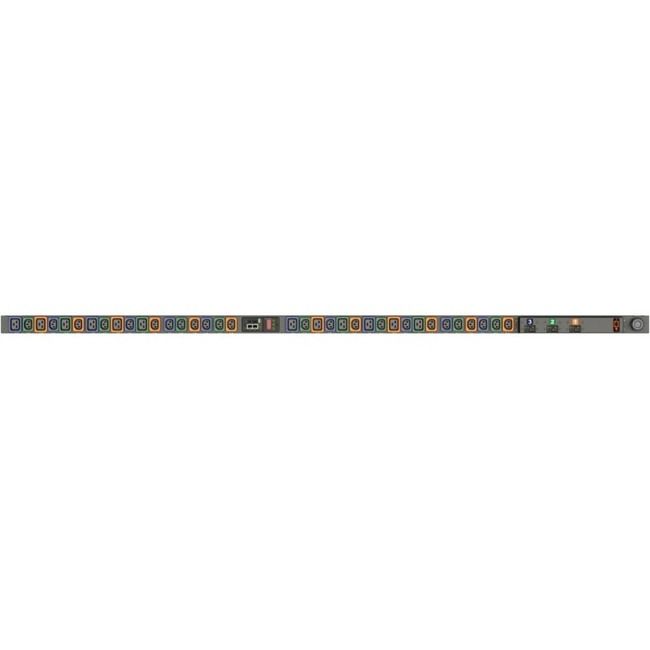

The Vertiv Geist NS30028L is a high-performance, switched rack power distribution unit (rPDU) engineered for enterprise data centers and mission-critical IT environments. It provides reliable power distribution with individual outlet switching, unit-level input monitoring, and support for environmental sensors. With 36 total outlets (24x IEC C13, 12x IEC C19) and a 10-ft power cord terminating in an L15-30P plug, this vertical 72-inch unit supports 30A, 208V Delta, 8.6kW capacity across three phases. The NS30028L features fault-tolerant daisy chaining, dual Ethernet ports, remote management, and compliance with the latest standards for safety and accuracy—ensuring scalability, efficiency, and uptime.
| Attribute | Details |
|---|---|
| Brand | Vertiv Geist |
| Model Number | NS30028L |
| Product Type | Switched rPDU |
| Power Capacity | 30A, 208V Delta, 8.6kW |
| Mounting Style | Vertical, Zero U (72 in / 1829 mm) |
| Outlet Configuration | 24x Locking IEC C13, 12x Locking IEC C19 |
| Plug Type | NEMA L15-30P Twistlock |
| Monitoring Capabilities | Unit-level input, breaker, circuit monitoring |
| Switching | Individual outlet-level switching |
| Environmental Monitoring | Supported via optional sensors |
| Network Interfaces | Dual 10/100/1000Mbps Ethernet |
| Protocols Supported | SNMP, HTTP/S, SSH, RADIUS, Modbus TCP, etc. |
| Power Cable | 10ft (3m), 10/4 AWG |
| Breakers | (3) 20A Double Pole Magnetic, 10kAIC |
| Indicators | 36 LEDs, rotatable digital display |
| Mounting Kit | 7938 Vertical Mounting Bracket Included |
| Color | Black Powder Coat |
| Certifications | UL 62368-1, RoHS, FCC Part 15 Class A |
| Country of Origin | USA (TAA & BAA COTS Compliant) |
| Operating Temp | Max 60°C / 140°F |
| Warranty | 5 years (if registered within 120 days) |
| Dimensions (L x W x D) | 72in x 2in x 2.6in (1829mm x 51mm x 66mm) |
| Weight | 22 lbs (9.98 kg) |
