Description

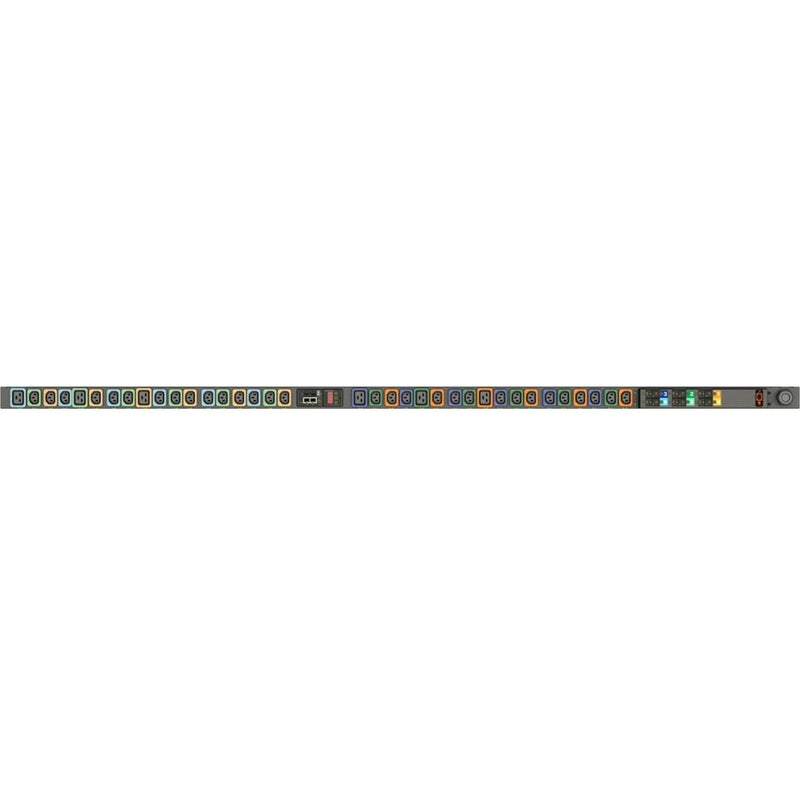

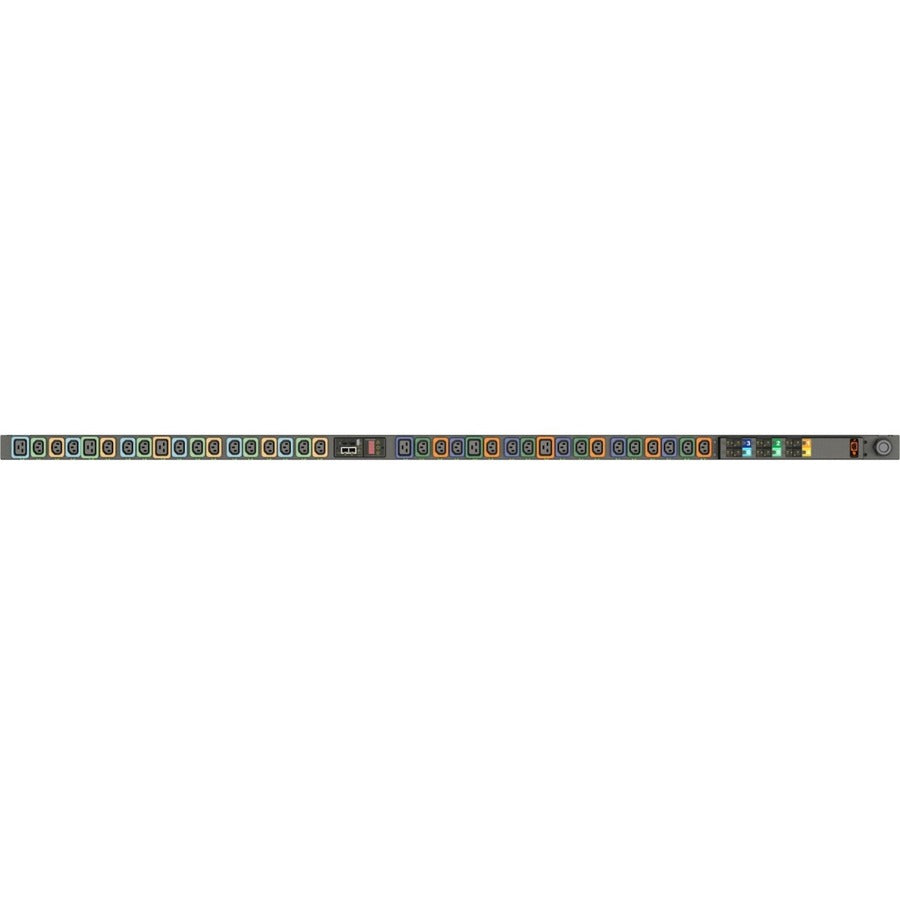

The Geist NS30030L is a high-performance 36-outlet switched PDU designed for modern data centers and enterprise IT environments. It features 30 U-Lock IEC 60320 C13 and 6 U-Lock IEC 60320 C19 receptacles with IP-based monitoring, outlet-level switching, and advanced environmental sensing. With Visible Light Communication (VLC) technology, it transmits real-time power metrics from the LED display to mobile devices via the Geist Mobile App. Built with hot-swappable, upgradeable IMD modules, this unit is future-ready and delivers robust 16.6kW power across three phases. Designed for 0U vertical rack mounting, it supports secure and efficient power distribution in space-constrained setups.
| Specification | Details |
|---|---|
| Manufacturer | Vertiv |
| Brand Name | Geist |
| Part Number | NS30030L |
| Product Model | MNS3EGW1-36PT63-3PS56B0A10-S-A |
| PDU Type | Switched |
| Phase | Three Phase |
| Input Voltage | 230V AC / 415V AC |
| Input Voltage Range | 200–240V AC / 346–415V AC |
| Output Voltage | 230V AC |
| Power Rating | 16.6 kW |
| Input Current | 30A |
| Plug Type | 1 x 3P+N+E (IP44) |
| Receptacle Type | 30 x U-Lock IEC 60320 C136 x U-Lock IEC 60320 C19 |
| Protection | Overcurrent Protection |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Dimensions (W x D x L) | 2" x 2.6" x 72" |
| Network Connectivity | RJ-45 Port |
| Remote Management | DHCP, HTTP/HTTPS, IPv4/IPv6, SNMP (v1/v2c/v3), SSH, Syslog, SMTP, RSTP, LDAP, NTP |
| Remote Switching | Yes |
| Special Features | VLC power monitoring, Hot-swappable IMD |
| Compliance | IP44 |
| Included Accessories | Vertical Mounting Bracket Kit |
| Weight | 22 lbs |
| Environmentally Friendly | Yes |
| Warranty | 5-Year Limited |
| Country of Origin | United States |
